74630 (SS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 312000001 - 312999999) (2012) RH HYDRO TRANSAXLE ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

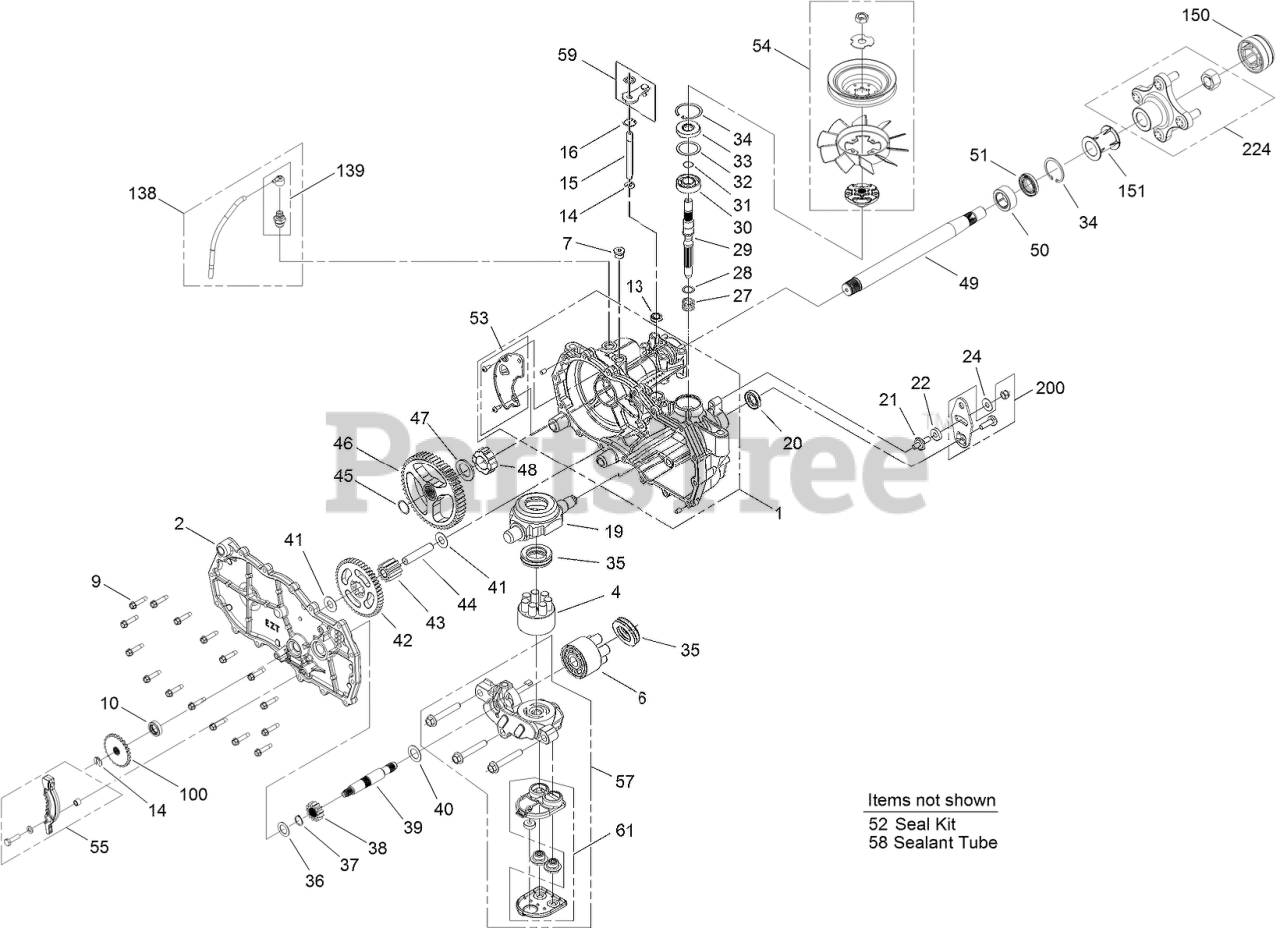

RH HYDRO TRANSAXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 106-8674

MAIN HOUSING ASM

$858.99

$

Usually ships in 3-6 days

0

2

Toro 106-8675

SIDE ASM

$678.99

$

Usually ships in 3-6 days

0

4

Toro 110-8561

PUMP BLOCK ASM

$347.99

$

Usually ships in 3-6 days

0

6

Toro 103-2666

CYLINDER BLOCK KIT

$494.99

$

Usually ships in 3-6 days

0

7

Toro 104-2189

PLUG-THREAD, STRAIGHT

$26.99

$

In Stock, only 2 left!

0

9

Toro 104-5305

SCREW-HHF

$7.99

$

In Stock, only 1 left!

0

10

Toro 104-5347

SEAL-OIL

$21.99

$

Usually ships in 3-6 days

0

13

Toro 106-8676

SEAL-LIP
(Superseded to 139-7497)

$6.99

$

Usually ships in 3-6 days

0

14

Toro 106-8677

RING-RETAINING, EXTERNAL

$8.99

$

In Stock, only 1 left!

0

15

Toro 106-8678

ROD-BYPASS

$55.99

$

Usually ships in 3-6 days

0

16

Toro 106-8679

RING-RETAINING, INTERNAL

$9.49

$

Usually ships in 3-6 days

0

19

Toro 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

20

Toro 104-5313

SEAL-LIP

$25.99

$

In Stock, only 1 left!

0

21

$38.99

$

Usually ships in 3-6 days

0

22

Toro 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

24

Toro 114-8491

WASHER

$5.49

$

Usually ships in 3-6 days

0

27

Toro 120-5537

SPRING-COMPRESSION
(Superseded to 94-1936)

$8.49

$

Usually ships in 3-6 days

0

28

Toro 120-5538

WASHER

$5.49

$

Usually ships in 3-6 days

0

29

Toro 104-5306

SHAFT-INPUT

$370.99

$

Usually ships in 3-6 days

0

30

Toro 104-5311

BEARING-BALL

$44.99

$

In Stock, Qty 5

0

31

Toro 104-5307

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

32

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

33

Toro 104-5310

SEAL-LIP

$36.99

$

In Stock, only 1 left!

0

34

Toro 104-5309

RING-RETAINING

$12.99

$

In Stock, only 1 left!

0

35

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

36

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

37

Toro 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

38

Toro 104-5316

GEAR-PINNION, 13T

$33.99

$

Usually ships in 3-6 days

0

39

Toro 106-8683

SHAFT-MOTOR

$286.99

$

Usually ships in 3-6 days

0

40

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

41

Toro 119-5541

WASHER
(Superseded to 94-1933)

$6.49

$

Usually ships in 3-6 days

0

42

Toro 104-5317

GEAR-10T/48T

$192.99

$

Usually ships in 3-6 days

0

43

Toro 104-5318

GEAR-JACKSHAFT, 10T

$87.99

$

Usually ships in 3-6 days

0

44

Toro 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

45

Toro 112-9854

RING-SPIRAL, RETAINING

$5.49

$

Usually ships in 3-6 days

0

46

Toro 112-9855

GEAR-52T, BULL

$159.99

$

Usually ships in 3-6 days

0

47

Toro 112-9856

WASHER

$8.49

$

Usually ships in 3-6 days

0

48

Toro 112-9857

BEARING-SLEEVE

$19.99

$

In Stock, only 1 left!

0

49

Toro 120-7104

SHAFT-AXLE

$183.99

$

Usually ships in 3-6 days

0

50

Toro 112-9859

BUSHING-AXLE

$14.99

$

Usually ships in 3-6 days

0

51

Toro 112-9860

SEAL-LIP

$21.99

$

Usually ships in 3-6 days

0

52

Toro 106-8686

SEAL KIT

Note: Not illustrated

$188.99

$

Usually ships in 3-6 days

0

53

Toro 106-8687

EXPANSION PLATE KIT

$71.99

$

Usually ships in 3-6 days

0

54

Toro 120-7105

FAN PULLEY KIT
(Superseded to 121-5729)

$116.99

$

In Stock, only 1 left!

0

55

Toro 106-8688

BRAKE ARM KIT

$37.99

$

In Stock, Qty 20+

0

57

Toro 112-9862

CENTER SECTION FILTER KIT

$526.99

$

Usually ships in 3-6 days

0

58

Toro 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

59

Toro 107-2489

BYPASS ARM KIT

$83.99

$

Usually ships in 3-6 days

0

61

Toro 114-1634

FILTER KIT

$42.99

$

Usually ships in 3-6 days

0

100

Toro 106-8694

DISC-BRAKE, COG

$60.99

$

In Stock, only 1 left!

0

138

Toro 112-9866

BREATHER KIT

$47.99

$

In Stock, only 1 left!

0

139

Toro 114-1635

BREATHER ASM

$42.99

$

In Stock, only 1 left!

0

150

Toro 115-5057

COVER-NUT, AXLE

$18.99

$

Usually ships in 3-6 days

0

151

Toro 120-7109

TUBE-AXLE

$13.99

$

Usually ships in 3-6 days

0

200

Toro 117-5362

CONTROL ARM KIT

$29.99

$

In Stock, only 1 left!

0

224

Toro 120-7110

HUB ASM
(Superseded to 109-5939)

$103.99

$

In Stock, only 3 left!
