74629 (SS 3216) - Toro 32" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) 32 INCH DECK ASSEMBLY Parts Diagram

32" TimeCutter Zero-Turn Mower

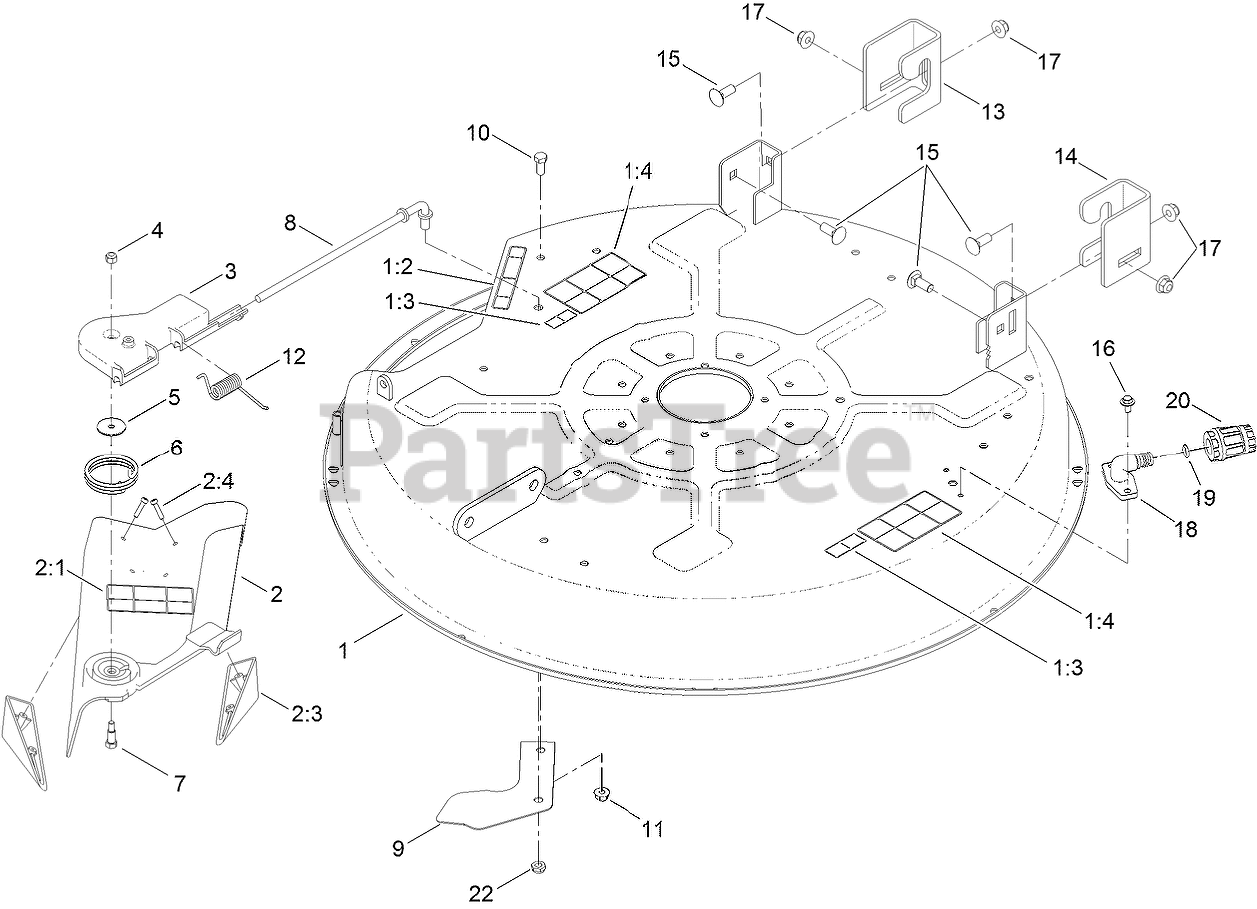

32 INCH DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 119-8839

32 INCH DECK AND DECAL ASM

$906.99

$

Usually ships in 3-6 days

0

1:2

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

1:3

Toro 114-1606

DECAL-DANGER

$2.99

$

In Stock, Qty 7

0

1:4

Toro 110-6691

DECAL-DANGER

$5.49

$

In Stock, only 2 left!

0

2

Toro 120-2298

32 INCH DEFLECTOR ASM

$52.99

$

In Stock, only 1 left!

0

2:1

Toro 110-6691

DECAL-DANGER

$5.49

$

In Stock, only 2 left!

0

2:3

Toro 93-7696

KICKER

$14.99

$

In Stock, only 3 left!

0

2:4

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

3

Toro 88-4540

PIVOT-HINGE, DEFLECTOR

$22.99

$

In Stock, only 2 left!

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

5

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

6

Toro 88-6160

SPRING-TORSION

$35.99

$

In Stock, only 1 left!

0

7

Toro 92-8916

BOLT-SHOULDER

$15.99

$

Usually ships in 3-6 days

0

8

Toro 119-8858

ROD-PIVOT

$26.99

$

In Stock, only 1 left!

0

9

Toro 119-8877-03

RAMP-DEFLECTOR

$17.99

$

In Stock, only 1 left!

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

12

Toro 92-2493

SPRING-TORSION

$12.99

$

In Stock, only 2 left!

0

13

Toro 119-3494

BRACKET-HANGER, RH
(Superseded to 131-4138)

$13.99

$

In Stock, only 2 left!

0

14

Toro 119-3496

BRACKET-HANGER, LH

$12.99

$

In Stock, Qty 10

0

15

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

16

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

19

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

20

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

22

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0
