74626 (SS 4260) - Toro 42" TimeCutter Zero-Turn Mower (SN: 311000001 - 311999999) (2011) FUEL DELIVERY ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

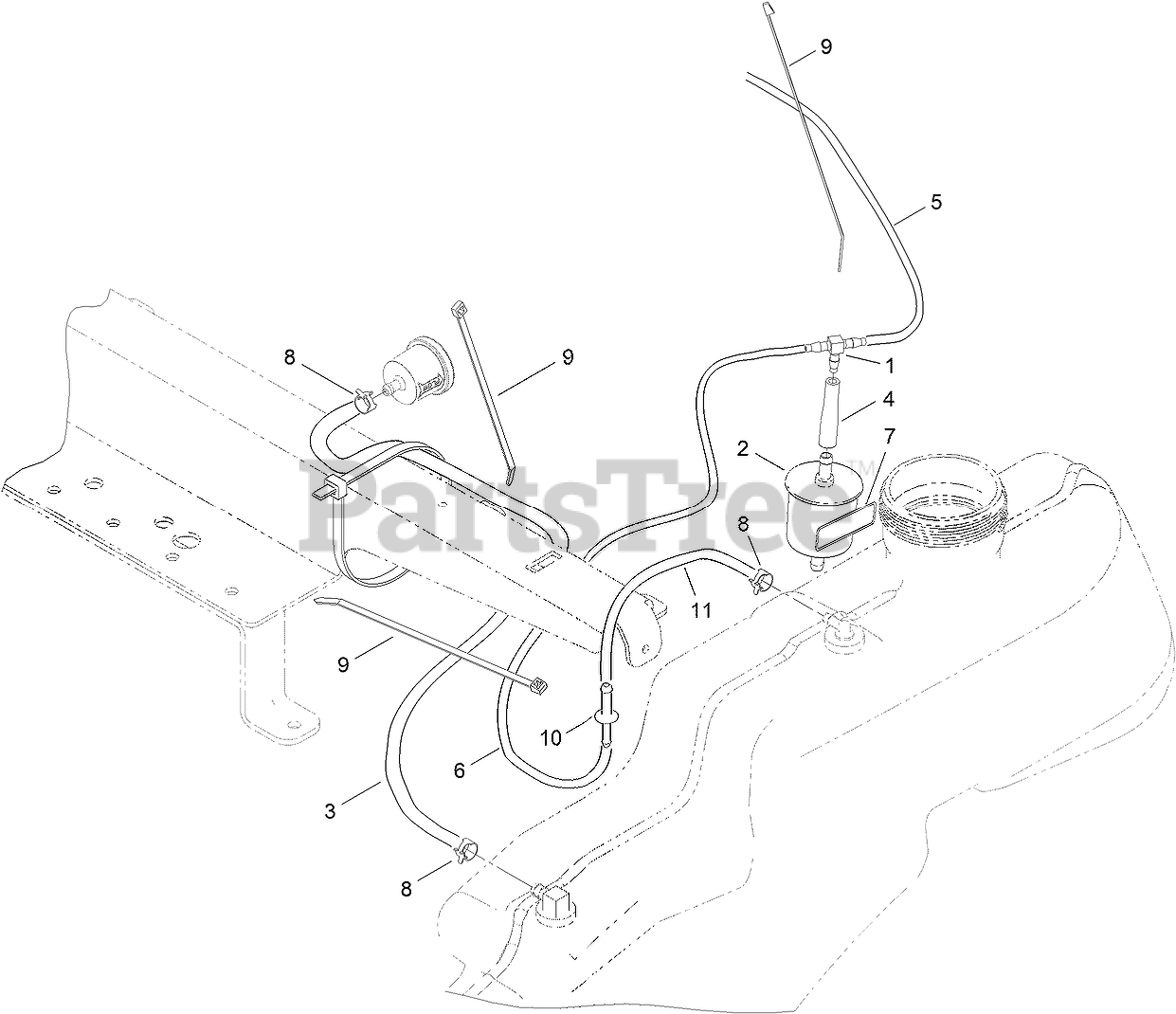

FUEL DELIVERY ASSEMBLY Parts Diagram

  • Title
1

Toro 120-2234

FITTING-TEE

$3.99

$

Usually ships in 3-6 days

0

2

Toro 120-2235

FILTER-FUEL

$8.99

$

In Stock, Qty 20+

0

3

Toro 110-5701

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0

4

Toro 120-2272

HOSE-FUEL, MOLDED

$5.49

$

Usually ships in 3-6 days

0

5

Toro 119-8150

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

6

Toro 119-8150

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

7

Toro 116-4769

DECAL-FILTER, EMISSIONS

$2.99

$

In Stock, only 3 left!

0

8

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

9

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

10

Toro 117-5399

ADAPTOR-ORIFICE

$3.49

$

In Stock, only 1 left!

0

11

Toro 110-1876

HOSE-FUEL

$12.99

$

In Stock, only 1 left!

0
