74624 (SS 4235) - Toro 42" TimeCutter Zero-Turn Mower (SN: 311000001 - 311999999) (2011) BODY STYLING & FUEL TANK ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

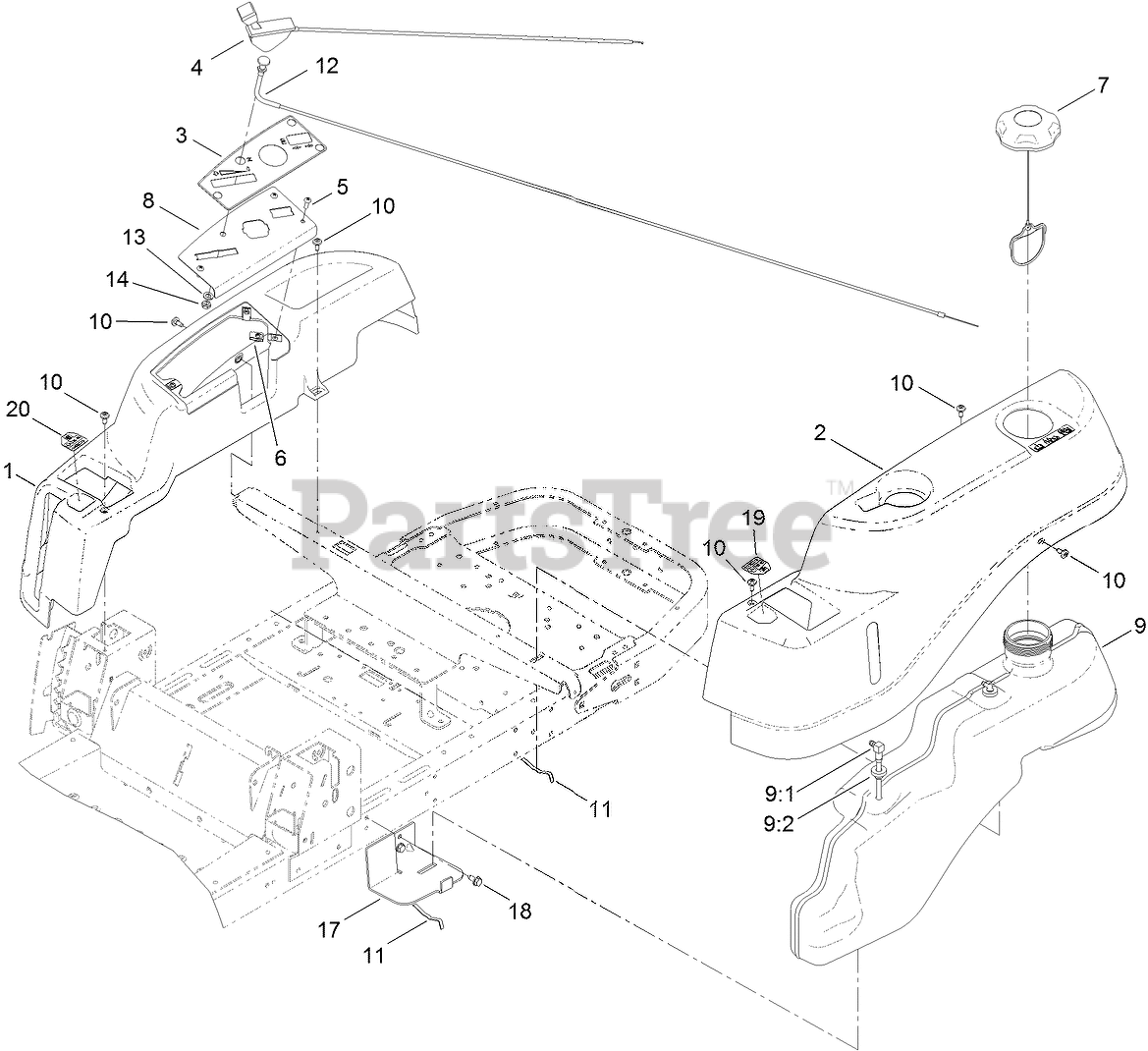

BODY STYLING & FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3335

POD-RH

$75.99

$

Usually ships in 3-6 days

0

2

Toro 119-3334

POD-LH
(Superseded to 137-7008)

$75.99

$

In Stock, only 1 left!

0

3

Toro 119-8873

DECAL-PANEL, CONTROL

$20.99

$

Usually ships in 3-6 days

0

4

Toro 112-9752

CABLE-THROTTLE

$34.99

$

In Stock, only 1 left!

0

5

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

7

Toro 120-5461

CAP-FUEL, RATCHETING
(Superseded to 137-4119)

$26.99

$

In Stock, only 1 left!

0

8

Toro 119-3378-03

PLATE-CONTROL

$9.49

$

Usually ships in 3-6 days

0

9

Toro 119-3324

FUEL TANK ASM

$313.99

$

In Stock, only 3 left!

0

9:1

Toro 115-2564

TUBE-DROP
(Superseded to 121-0793)

$11.99

$

Usually ships in 3-6 days

0

9:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

10

Toro 112-4004

SCREW-SHOULDER
(Superseded to 120-7950)

$2.99

$

In Stock, Qty 13

0

11

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

12

Toro 112-9753

CABLE-CHOKE

$44.99

$

In Stock, Qty 20+

0

13

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

14

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

17

Toro 119-3476-03

SUPPORT-TANK, FRONT

$13.99

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 119-8814

DECAL-CONTROL LEVER, LH

$2.99

$

In Stock, only 1 left!

0

20

Toro 119-8815

DECAL-CONTROL LEVER, RH

$2.99

$

In Stock, only 2 left!

0
