74622 (SS 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 311000001 - 311999999) (2011) HYDRO TRANSAXLE DRIVE AND REAR WHEEL ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

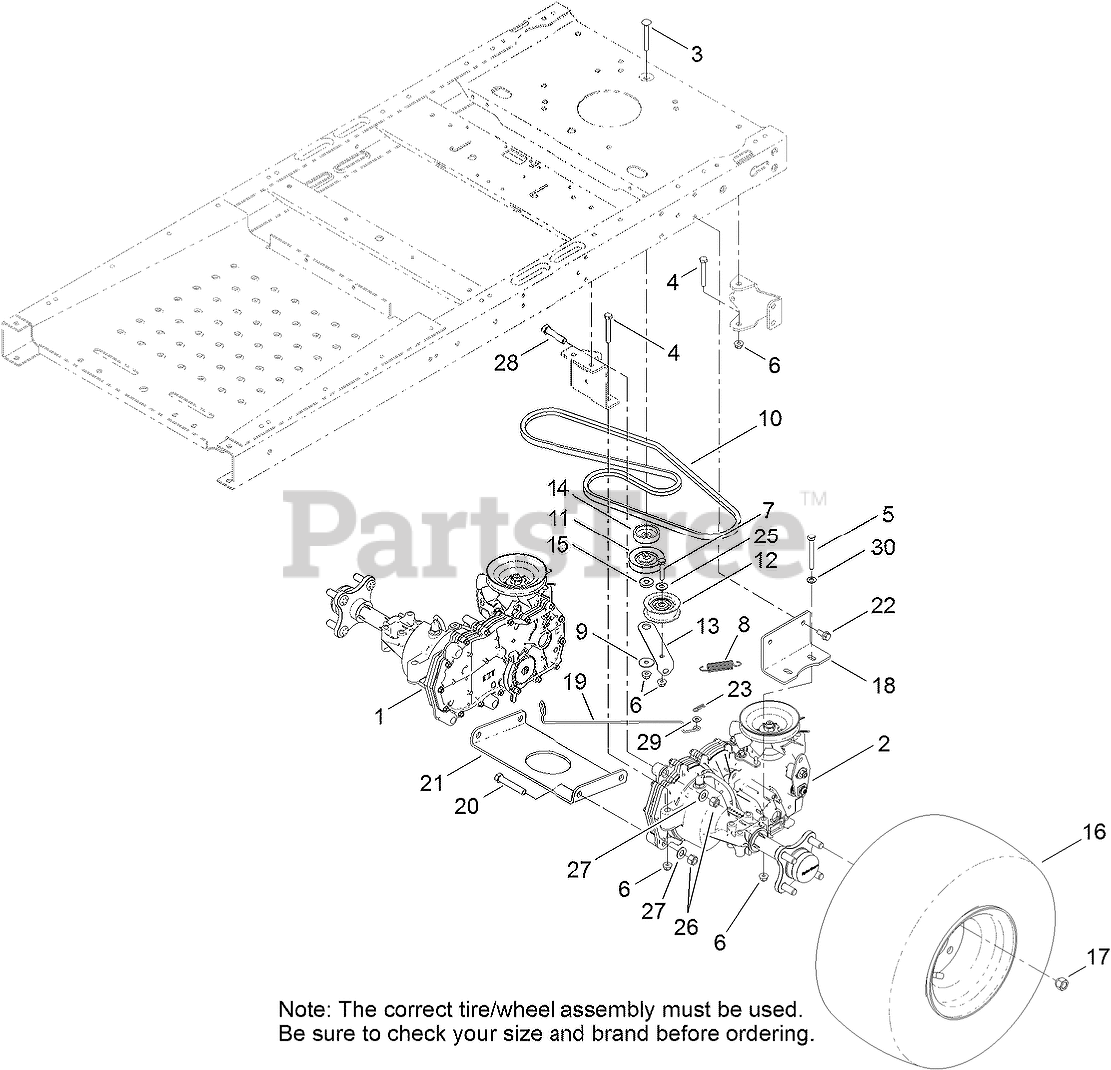

HYDRO TRANSAXLE DRIVE AND REAR WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 119-3331

RH HYDRO TRANSAXLE ASM

$1340.99

$

Usually ships in 3-6 days

0

2

Toro 119-3330

LH HYDRO TRANSAXLE ASM

$1340.99

$

Usually ships in 3-6 days

0

3

Toro 3230-8

SCREW-CARR

$4.99

$

In Stock, Qty 13

0

4

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

5

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 7

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-6415

SPRING-RETURN, PEDAL
(Superseded to 137-7040)

$5.49

$

In Stock, only 4 left!

0

9

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

10

Toro 119-3309

V-BELT
(Superseded to 119-3309-SL)

$33.99

$

Usually ships in 3-6 days

0

11

Toro 119-8822

PULLEY-IDLER

$26.99

$

In Stock, Qty 10

0

12

Toro 106-2176

PULLEY-IDLER

$33.99

$

In Stock, Qty 20+

0

13

Toro 119-3326

ARM-IDLER
(Superseded to 138-7276)

$6.49

$

In Stock, only 1 left!

0

14

Toro 119-3353

SPACER

$11.99

$

Usually ships in 3-6 days

0

15

Toro 119-3327

SPACER-ARM, IDLER

$2.99

$

In Stock, Qty 20+

0

16

Toro 119-3465

WHEEL AND TIRE ASM (Kenda)
(Superseded to 131-3671)

$194.99

$

In Stock, only 2 left!

0

16

Toro 120-5523

WHEEL AND TIRE ASM (Premium)

$261.99

$

In Stock, only 3 left!

0

17

Toro 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

18

Toro 117-7264-03

MOUNT-HYDRO

$9.49

$

Usually ships in 3-6 days

0

19

Toro 119-3464

ROD-BYPASS

$8.99

$

Usually ships in 3-6 days

0

20

Toro 324-10

SCREW-HH

$2.49

$

In Stock, Qty 15

0

21

Toro 119-3339-03

PLATE-CROSS, HYDRO

$23.99

$

Usually ships in 3-6 days

0

22

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

23

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

25

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

28

Toro 324-8

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
