74621 (SS 3200) - Toro 32" TimeCutter Zero-Turn Mower (SN: 312000001 - 312999999) (2012) NO. 3 ENGINE ASSEMBLY NO. 120-4335 Parts Diagram

32" TimeCutter Zero-Turn Mower

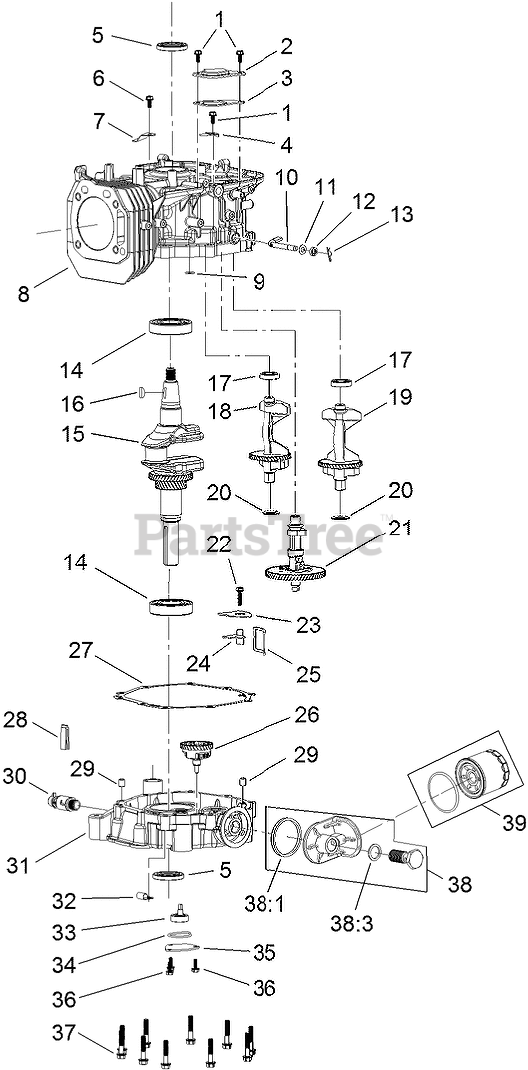

NO. 3 ENGINE ASSEMBLY NO. 120-4335 Parts Diagram

  • Title

1

Toro 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

2

Toro 120-4265

PLATE-BREATHER

$5.49

$

In Stock, only 1 left!

0

3

Toro 120-4264

GASKET-BREATHER

$5.49

$

In Stock, only 1 left!

0

4

Toro 120-4263

VALVE-REED

$9.99

$

Usually ships in 3-6 days

0

5

Toro 120-4267

SEAL-OIL

$20.99

$

Usually ships in 3-6 days

0

6

Toro 120-4234

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

7

Toro 120-4268

RETAINER

$2.99

$

Usually ships in 3-6 days

0

8

Toro 120-4336

CRANKCASE

$294.99

$

Usually ships in 3-6 days

0

9

Toro 120-4262

O-RING

$1.49

$

In Stock, only 2 left!

0

10

Toro 120-4382

SHAFT-GOVERNOR
(Superseded to 136-7887)

$9.99

$

Usually ships in 3-6 days

0

11

Toro 120-4258

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

12

Toro 120-4257

SEAL-OIL

$5.49

$

In Stock, Qty 8

0

13

Toro 120-4256

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

14

Toro 120-4261

BEARING-BALL

$23.99

$

Usually ships in 3-6 days

0

15

Toro 120-4293

CRANKSHAFT

$190.99

$

Usually ships in 3-6 days

0

16

Toro 120-4320

KEY-WOODRUFF

$2.99

$

Usually ships in 3-6 days

0

17

Toro 120-4266

BEARING-BALL

$23.99

$

Usually ships in 3-6 days

0

18

Toro 120-4294

BALANCER-RH

$63.99

$

Usually ships in 3-6 days

0

19

Toro 120-4296

BALANCER-LH
(Superseded to 127-9180)

$63.99

$

In Stock, only 1 left!

0

20

Toro 120-4295

WASHER

$5.49

$

Usually ships in 3-6 days

0

21

Toro 120-4297

CAMSHAFT

$95.99

$

Usually ships in 3-6 days

0

22

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0

23

Toro 120-4342

COVER-STRAINER, OIL

$13.99

$

Usually ships in 3-6 days

0

24

Toro 120-4279

PLATE-BAFFLE, OIL

$7.99

$

Usually ships in 3-6 days

0

25

Toro 120-4341

STRAINER-OIL

$7.99

$

Usually ships in 3-6 days

0

26

Toro 120-4338

GEAR-GOVERNOR
(Superseded to 136-7834)

$11.99

$

Usually ships in 3-6 days

0

27

Toro 120-4260

GASKET-CRANKCASE

$14.99

$

Usually ships in 3-6 days

0

28

Toro 120-4275

DEFLECTOR-OIL, RUBBER

$1.49

$

In Stock, only 1 left!

0

29

Toro 120-4274

PIN-DOWEL

$1.49

$

In Stock, only 2 left!

0

30

Toro 120-4321

VALVE-DRAIN, OIL

$19.99

$

In Stock, only 1 left!

0

31

Toro 120-4327

COVER-CRANKCASE
(Superseded to 136-7828)

$143.99

$

Usually ships in 3-6 days

0

32

Toro 120-4287

CLAMP-J

$2.99

$

Usually ships in 3-6 days

0

33

Toro 120-4344

OIL PUMP ASM

$18.99

$

Usually ships in 3-6 days

0

34

Toro 120-4343

SEAL-PUMP, OIL

$2.99

$

In Stock, only 1 left!

0

35

Toro 120-4270

COVER-PUMP, OIL

$6.49

$

Usually ships in 3-6 days

0

36

Toro 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

37

Toro 120-4273

SCREW-HHF

$9.49

$

Usually ships in 3-6 days

0

38

Toro 120-4363

OIL ADAPTOR KIT

$67.99

$

Usually ships in 3-6 days

0

38:1

Toro 120-4362

SEAL-ADAPTOR, OIL

$6.49

$

Usually ships in 3-6 days

0

38:3

Toro 120-4360

WASHER-FILTER, OIL

$2.99

$

In Stock, only 4 left!

0

39

Toro 120-4276

FILTER-OIL
(Superseded to 126-5234)

$25.99

$

In Stock, Qty 5

0
