74616 (SS 4216) - Toro 42" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) NO. 2 ENGINE ASSEMBLY NO. 120-4335 Parts Diagram

42" TimeCutter Zero-Turn Mower

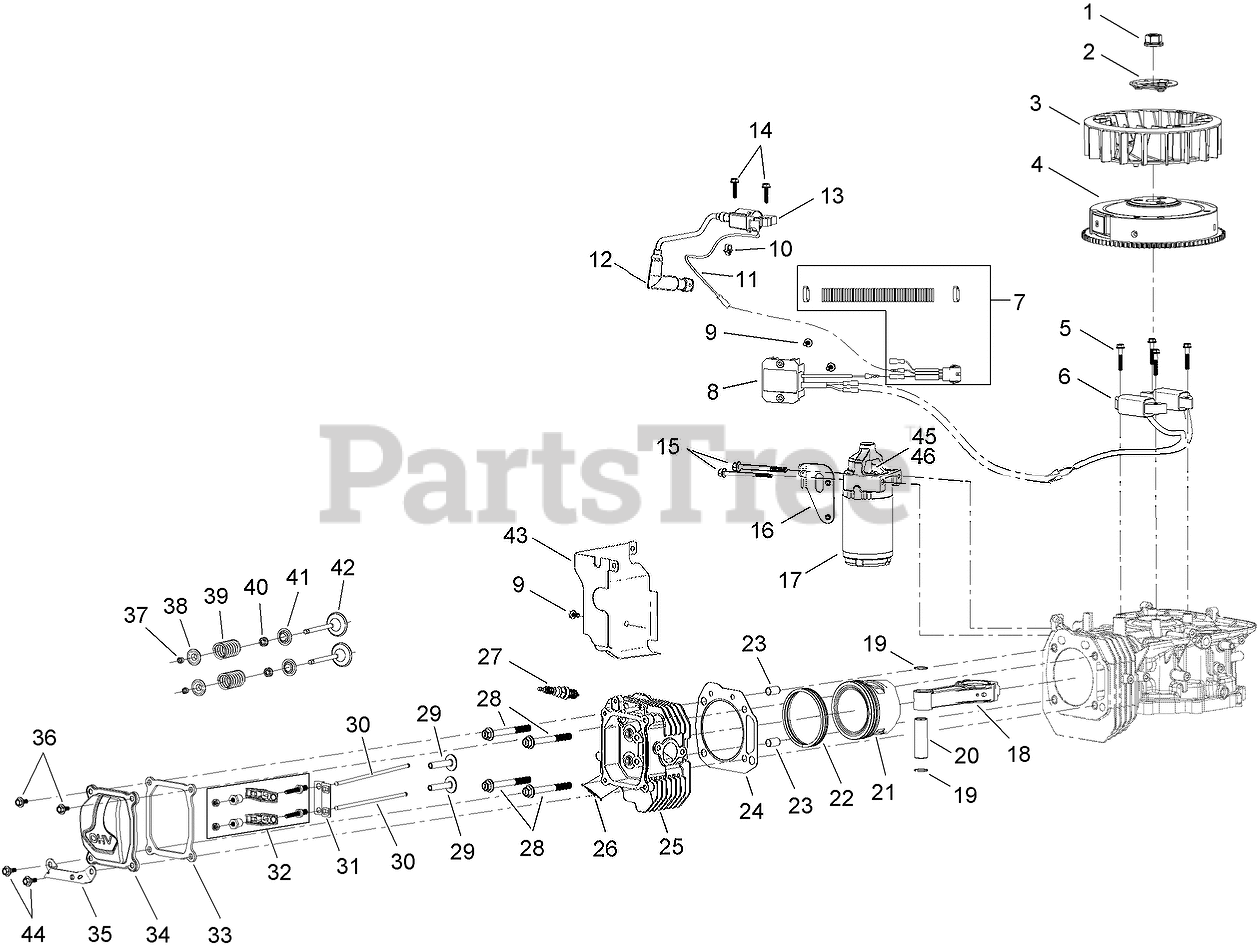

NO. 2 ENGINE ASSEMBLY NO. 120-4335 Parts Diagram

  • Title

1

Toro 120-4213

NUT-FLANGE

$5.49

$

In Stock, only 1 left!

0

2

Toro 120-4212

PULLEY-STARTER

$11.99

$

In Stock, only 1 left!

0

3

Toro 120-4211

FAN-COOLING

$34.99

$

In Stock, only 1 left!

0

4

Toro 120-4399

FLYWHEEL

$183.99

$

Usually ships in 3-6 days

0

5

Toro 120-4223

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 120-4367

CHARGE COIL ASM

$67.99

$

Usually ships in 3-6 days

0

7

Toro 120-4381

WIRE HARNESS KIT

$23.99

$

Usually ships in 3-6 days

0

8

Toro 120-4433

REGULATOR-VOLTAGE

$103.99

$

In Stock, only 3 left!

0

9

Toro 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

10

Toro 120-4316

CLAMP-WIRE

$1.49

$

Usually ships in 3-6 days

0

11

Toro 120-4375

WIRE-KILL, IGNITION

$13.99

$

Usually ships in 3-6 days

0

12

Toro 120-4226

BOOT-PLUG, SPARK

$12.99

$

Usually ships in 3-6 days

0

13

Toro 120-4368

IGNITION COIL ASM

$67.99

$

Usually ships in 3-6 days

0

14

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0

15

Toro 120-4231

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

16

Toro 120-4230

BRACKET-STARTER

$15.99

$

Usually ships in 3-6 days

0

17

Toro 120-4339

STARTER-ELECTRIC
(Superseded to 136-7832)

$299.99

$

In Stock, Qty 10

0

18

Toro 120-4292

CONNECTING ROD ASM

$44.99

$

In Stock, only 1 left!

0

19

Toro 120-4288

RING-RETAINING, PISTON PIN

$1.49

$

In Stock, Qty 12

0

20

Toro 120-4291

PIN-PISTON

$9.49

$

Usually ships in 3-6 days

0

21

Toro 120-4290

PISTON

$59.99

$

In Stock, only 2 left!

0

22

Toro 120-4289

RING SET

$28.99

$

In Stock, only 1 left!

0

23

Toro 120-4200

PIN-DOWEL

$2.99

$

Usually ships in 3-6 days

0

24

Toro 120-4201

GASKET-CYCLINDER

$14.99

$

In Stock, only 1 left!

0

25

Toro 120-4203

HEAD-CYLINDER

$167.99

$

In Stock, only 3 left!

0

26

Toro 120-4317

GASKET-EXHAUST

$5.49

$

In Stock, only 3 left!

0

27

Toro 120-4204

PLUG-SPARK
(Superseded to 77-7330)

$3.49

$

In Stock, Qty 20+

0

28

Toro 120-4205

SCREW-HHF

$11.99

$

Usually ships in 3-6 days

0

29

Toro 120-4298

LIFTER-VALVE

$14.99

$

Usually ships in 3-6 days

0

30

Toro 120-4340

ROD-PUSH

$6.49

$

In Stock, only 2 left!

0

31

Toro 120-4300

PLATE-GUIDE, PUSH ROD

$5.49

$

In Stock, only 1 left!

0

32

Toro 120-4301

ROCKER ARM KIT
(Superseded to 136-7885)

$17.99

$

In Stock, only 1 left!

0

33

Toro 120-4206

GASKET-COVER, VALVE

$9.49

$

In Stock, Qty 6

0

34

Toro 120-4207

COVER-VALVE

$17.99

$

In Stock, only 1 left!

0

35

Toro 120-4345

BRACKET-MUFFLER

$14.99

$

Usually ships in 3-6 days

0

36

Toro 120-4209

SCREW-SHOULDER, HHF

$6.49

$

In Stock, only 1 left!

0

37

Toro 120-4307

KEEPER-VALVE

$8.49

$

In Stock, only 3 left!

0

38

Toro 120-4306

RETAINER-SPRING, VALVE

$11.99

$

In Stock, only 1 left!

0

39

Toro 120-4305

SPRING-VALVE

$6.49

$

In Stock, only 4 left!

0

40

Toro 120-4304

SEAL-STEM, VALVE

$18.99

$

Usually ships in 3-6 days

0

41

Toro 120-4303

SEAT-SPRING, VALVE

$7.99

$

In Stock, Qty 8

0

42

Toro 120-4302

VALVE SET

$34.99

$

Usually ships in 3-6 days

0

43

Toro 120-4215

SHIELD

$21.99

$

Usually ships in 3-6 days

0

44

Toro 120-4210

SCREW-SHOULDER, HHF

$6.49

$

In Stock, only 2 left!

0

45

Toro 120-4392

STARTER REPAIR KIT

$19.99

$

In Stock, only 1 left!

0

46

Toro 120-4398

PINION
(Superseded to 133-1562)

$54.99

$

Usually ships in 3-6 days

0
