74603 (ZX 440) - Toro 44" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) FUEL SYSTEM ASSEMBLY KOHLER CV492S-27525 Parts Diagram

44" TimeCutter Zero-Turn Mower

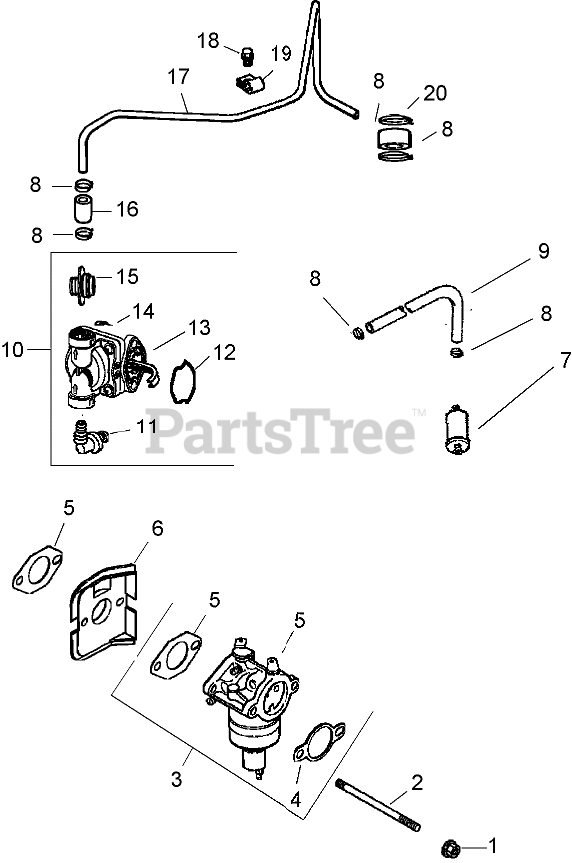

FUEL SYSTEM ASSEMBLY KOHLER CV492S-27525 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

2

Kohler M-629116-S

Stud (M6x1.0x116)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

3

Kohler 12 853 117-S

Carburetor Kit (Includes 4, 5 qty. 1], Tie 12 454 03-S, and Terminal 25 452 20-S)

Note: Obtain parts from www.kohlerplus.com

$269.99

$

In Stock, only 1 left!

0

4

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 5

0

4

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from your local Kohler dealer.

$2.99

$

In Stock, Qty 5

0

5

Kohler 12 041 01-S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 14

0

6

Kohler 12 265 06-S

Deflector-Heat

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 12 294 13-S

Fitting-90 DEG

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

8

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 3 left!

0

9

Kohler 25 353 14-S

Line-Fuel, 7 Inch

Note: Obtain parts from www.kohlerplus.com

$8.49

$

Usually ships in 2-5 days

0

10

Kohler 25 050 07-S

Filter-Fuel

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, only 3 left!

0

11

Kohler 12 559 02-S

Kit, fuel pump (Includes 13-15)

Note: Obtain parts from www.kohlerplus.com

$48.99

$

In Stock, only 2 left!

0

12

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

13

2504110-S

Gasket, fuel pump

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

14

Kohler 25 153 04-S

O-Ring (Fuel Pump)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 2 left!

0

15

Kohler 25 294 09-S

Connector-Hose, Straight

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

16

Kohler 12 353 01-S

Line-Fuel (1-1/4in)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

17

Kohler 12 123 19-S

Line-Fuel. Metal

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, only 2 left!

0

18

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

19

Kohler 12 154 01-S

CLAMP-INSULATED

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

20

Kohler 41 353 18-S

Line-Fuel (2-1/2in)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0
