74603 (ZX 440) - Toro 44" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) MOTION CONTROL SYSTEM ASSEMBLY Parts Diagram

44" TimeCutter Zero-Turn Mower

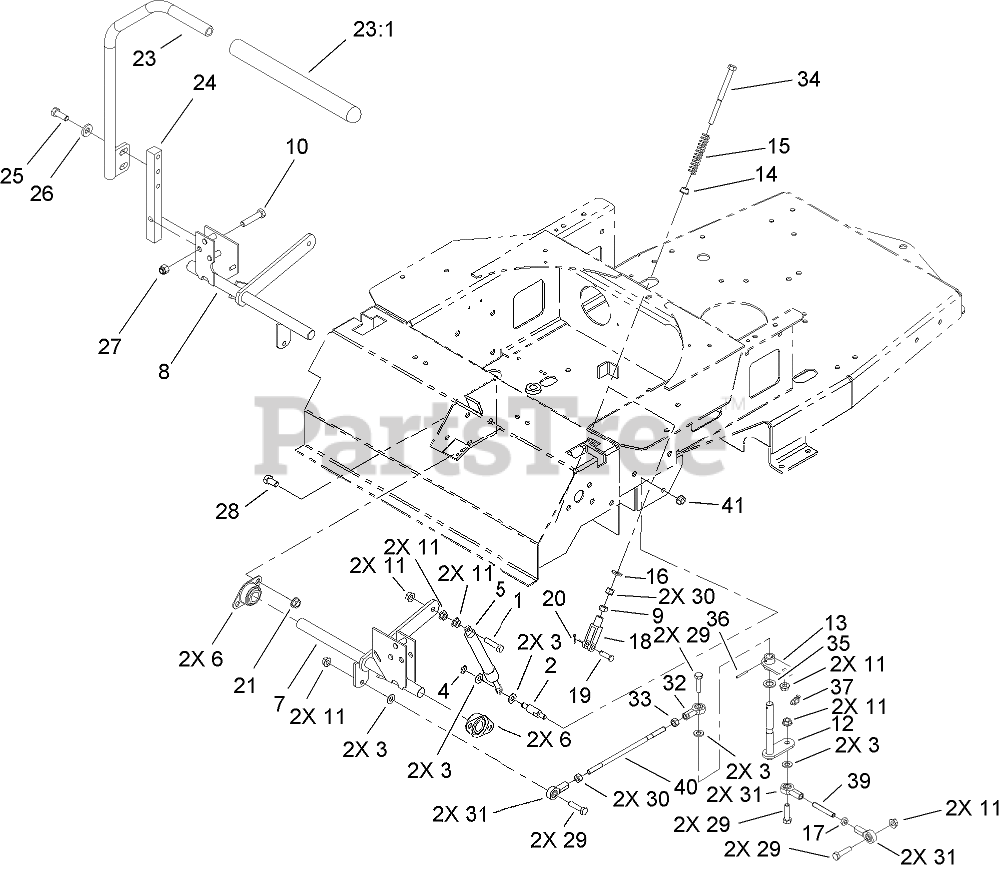

MOTION CONTROL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 1-653316

PIN-DAMPER
(Superseded to 103-4101)

$21.99

$

In Stock, only 1 left!

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

5

Toro 103-2913

Damper-Control, Motion
(Superseded to 109-2339)

$76.99

$

In Stock, Qty 5

0

6

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

7

Toro 100-7341

BRACKET-MOTION CONTROL, LH

$212.99

$

Usually ships in 3-6 days

0

8

Toro 100-7340

BRACKET-MOTION CONTROL, RH

$212.99

$

Usually ships in 3-6 days

0

9

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

10

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 100-7311

PIVOT ASM

$115.99

$

Usually ships in 3-6 days

0

13

Toro 100-7313

PIVOT PLATE ASM

$

$

Not available

14

Toro 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

15

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

16

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

18

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

19

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

20

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22:1

Toro 1-633257

GRIP-CONTROL, MOTION

Note: Not illustrated

$14.99

$

In Stock, only 4 left!

0

22

Toro 103-0631

LH LEVER ASM

Note: Not illustrated

$95.99

$

Usually ships in 3-6 days

0

23

Toro 103-0632

RH LEVER ASM

$95.99

$

Usually ships in 3-6 days

0

23:1

Toro 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0

24

Toro 103-0407

ARM-SHAFT, CONTROL

$30.99

$

In Stock, only 2 left!

0

25

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

27

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

28

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

29

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 13

0

31

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

32

Toro 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

33

Toro 1-804524

NUT

$2.99

$

In Stock, only 2 left!

0

34

Toro 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

35

Toro 100-7336

WASHER

$5.49

$

Usually ships in 3-6 days

0

36

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

37

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

38

Toro 104-3606

LINKAGE-LOWER, RH

Note: Not illustrated

$

$

Not available

39

Toro 104-3607

LINKAGE-LOWER, LH

$

$

Not available

40

Toro 104-3605

LINKAGE-UPPER

$40.99

$

Usually ships in 3-6 days

0

41

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
