74602 (18-44 ZX) - Toro 44" TimeCutter Zero-Turn Mower (SN: 240000001 - 240999999) (2004) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 31M777-0167-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

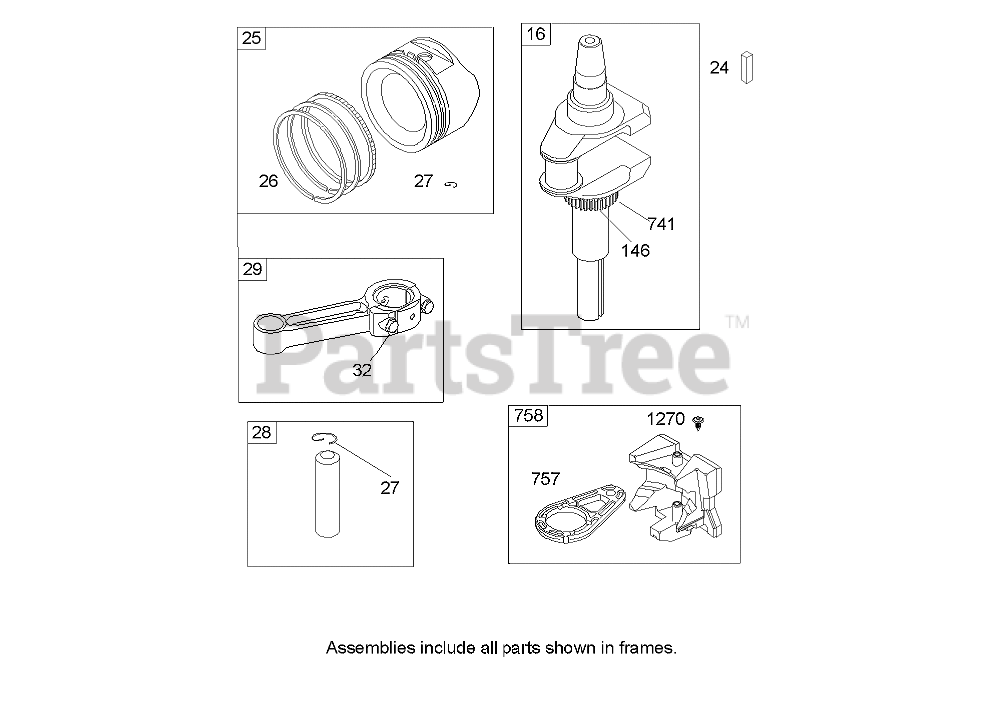

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 31M777-0167-E1 Parts Diagram

  • Title
16

Briggs & Stratton 697516

Crankshaft
(Superseded to 797585)

Note: Obtain parts from www.briggsandstratton.com

$471.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 699052

Piston ASM (Standard)
(Superseded to 594539)

Note: Obtain parts from www.briggsandstratton.com

$90.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 699054

Piston ASM (.020in Oversize)
(Superseded to 594540)

Note: Obtain parts from www.briggsandstratton.com

$139.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 699051

Ring Set (Standard)
(Superseded to 594437)

Note: Obtain parts from www.briggsandstratton.com

$52.99

$

In Stock, Qty 11

0

Briggs & Stratton 697559

Ring Set (.020in Oversize)

Note: Obtain parts from www.briggsandstratton.com

$65.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 698469

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 13

0

28

Briggs & Stratton 697099

Pin-Piston (Std)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 697518

Rod?Connecting (Standard)
(Superseded to 794571)

Note: Obtain parts from www.briggsandstratton.com

$78.99

$

In Stock, Qty 9

0

32

Briggs & Stratton 692852

Screw
(Superseded to 791118)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

146

Briggs & Stratton 691639

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 5

0

741

Briggs & Stratton 697128

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

In Stock, only 1 left!

0

757

Briggs & Stratton 697607

Link-Counterweight
(Superseded to 793242)

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

Usually ships in 2-12 days

0

758

Briggs & Stratton 697134

Counterweight
(Superseded to 793763)

Note: Obtain parts from www.briggsandstratton.com

$128.99

$

Usually ships in 2-12 days

0

1270

Briggs & Stratton 697156

Plug-Counterweight, AVS
(Superseded to 793243)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 4 left!

0
