74601 (Z 17-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000913 - 220999999) (2002) IGNITION / ELECTRICAL ASSEMBLY KOHLER CV 490S-27503 Parts Diagram

44" TimeCutter Zero-Turn Mower

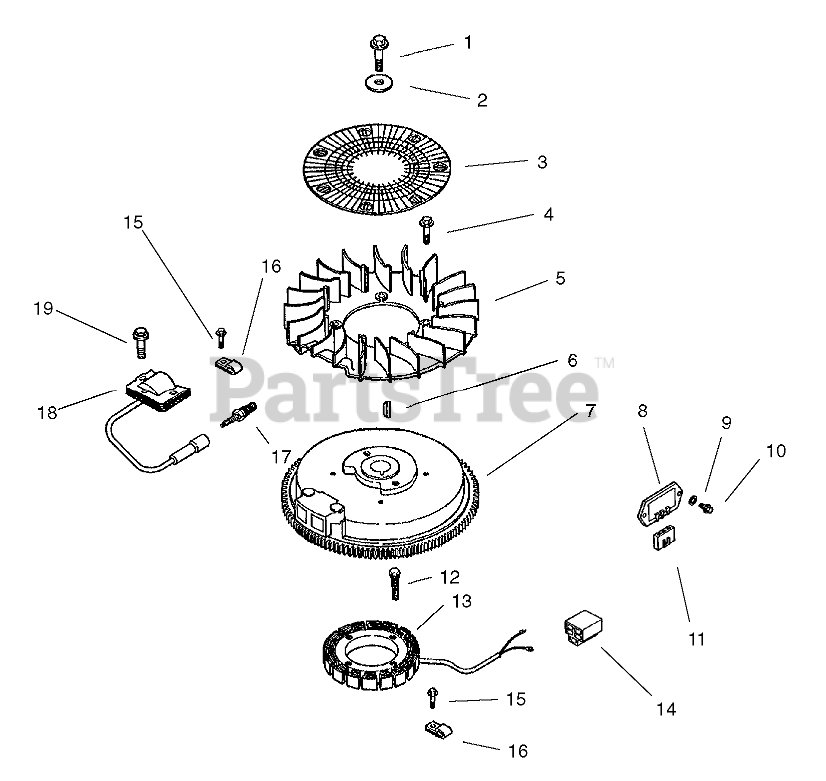

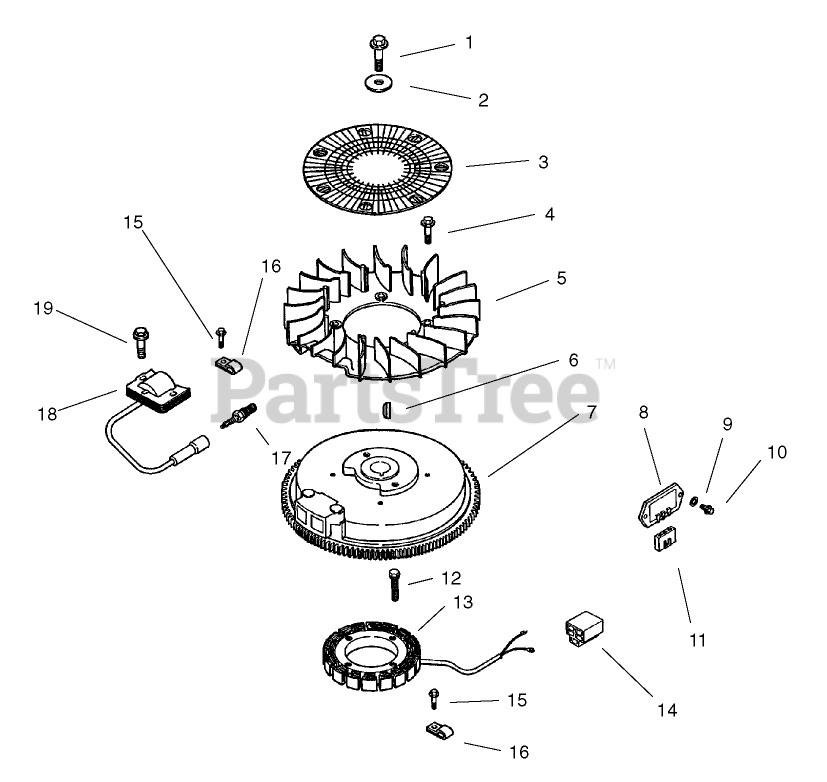

IGNITION / ELECTRICAL ASSEMBLY KOHLER CV 490S-27503 Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 2 left!

0

3

Kohler 24 162 03-S

Screen-Grass

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 25 086 47-S

BOLT-SHOULDER (M6x1.0x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

5

Kohler 12 157 06-S

Fan

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 6

0

7

Kohler 12 025 15-S

Flywheel
(Superseded to 12 025 16-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$328.99

$

Usually ships in 2-5 days

0

8

Kohler 41 403 09-S

Rectifier-Regulator
(Superseded to 41 403 10-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

10

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 6

0

11

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

In Stock, only 1 left!

0

12

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

13

Kohler 237878-S

Kit, stator (Includes Terminal 25 452 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$149.99

$

In Stock, Qty 8

0

14

Kohler 48 155 01-S

Connector (5 contact)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.49

$

Usually ships in 2-5 days

0

15

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 3 left!

0

16

Kohler X-728-1-S

Clip

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 12 132 02-S

SPARK PLUG

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 20+

0

18

Kohler 12 584 04-S

Module-Ignition

Note: Call PartsTree Customer Service for more information on Kohler Parts

$33.99

$

In Stock, only 1 left!

0

19

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

Kohler 25 518 05-S

Lead

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

Usually ships in 2-5 days

0

Kohler 25 518 05-S

Lead

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 12 518 01-S

Lead

Note: Not illustrated

$19.99

$

In Stock, only 1 left!

0

Kohler 12 518 01-S

Lead

Note: Call PartsTree Customer Service for more information on Kohler Parts

$19.99

$

In Stock, only 1 left!

0

Kohler 24 518 12-S

Lead-Black

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 518 12-S

Lead-Black

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

Usually ships in 2-5 days

0
