74601 (Z 17-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000913 - 220999999) (2002) HEAD / VALVE / BREATHER ASSEMBLY KOHLER CV 490S-27503 Parts Diagram

44" TimeCutter Zero-Turn Mower

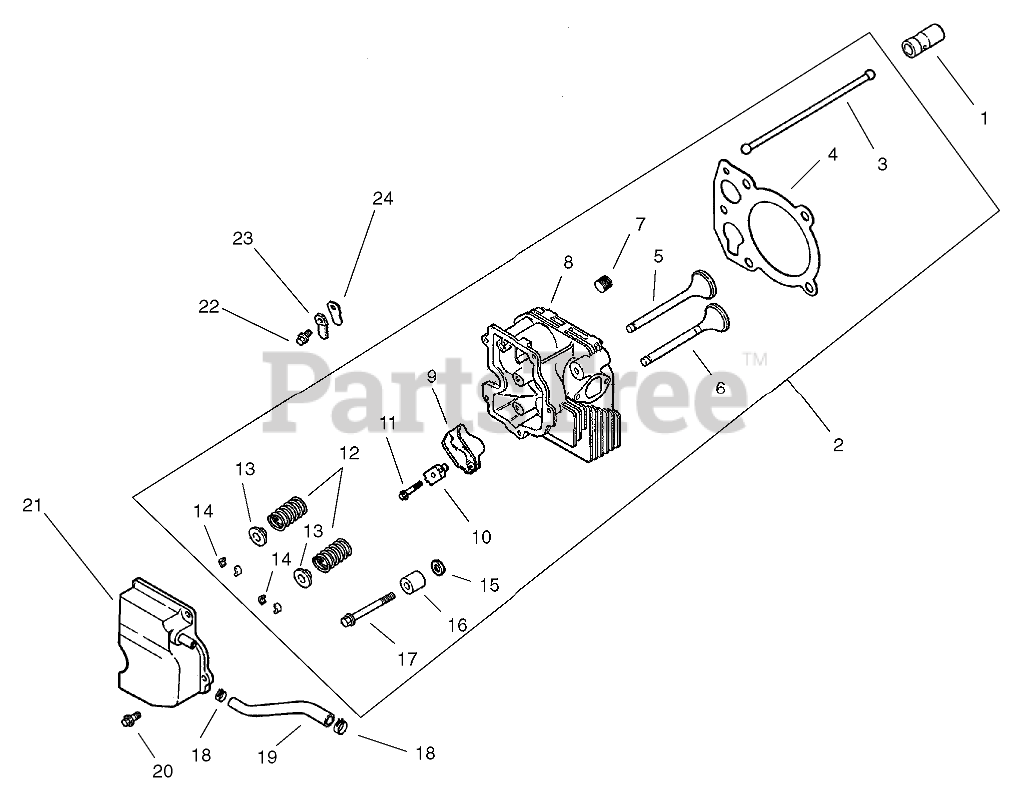

HEAD / VALVE / BREATHER ASSEMBLY KOHLER CV 490S-27503 Parts Diagram

  • Title

1

Kohler 25 351 01-S

Lifter-Valve
(Superseded to 25 351 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$23.99

$

In Stock, only 4 left!

0

2

Kohler 12 755 94-S

Kit, cylinder head (Includes 3-17, carburetor gasket (2), air cleaner base gasket, exhaust manifold gasket)
(Superseded to 12 755 97-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler 12 411 03-S

Rod-Push
(Superseded to 12 411 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 12 041 10-S

Gasket-Head, Cylinder

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 1 left!

0

5

Kohler 12 017 01-S

Valve-Intake (STD)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

Usually ships in 2-5 days

0

6

Kohler 12 016 01-S

Valve-Exhaust (STD)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$54.99

$

Usually ships in 2-5 days

0

7

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

8

Kohler 12 318 36-S

Cylinder Head
(Superseded to 12 755 97-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

Kohler 25 186 01-S

ARM-ROCKER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, only 2 left!

0

10

Kohler 12 599 03-S

Pivot-Arm, Rocker

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

11

Kohler M-640034-S

SCREW-FLANGE (M6X1.0X34)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 18

0

12

Kohler 12 089 34-S

Spring-Valve

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, only 2 left!

0

13

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.49

$

In Stock, Qty 5

0

14

Kohler 12 755 03-S

RETAINER KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 2 left!

0

15

Kohler 12 468 05-S

Washer-Flat (1/2)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 12 112 13-S

Spacer-Head Bolt (Exhaust Port)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

Usually ships in 2-5 days

0

17

Kohler 12 086 15-S

Screw, M10x1.5x81
(Superseded to 20 086 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 17

0

18

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0

19

Kohler 12 326 03-S

Hose-Breather

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, Qty 10

0

20

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

21

Kohler 12 096 07-S

Cover-Valve w/Nipple
(Superseded to 12 755 102-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$86.99

$

Usually ships in 2-5 days

0

22

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 2 left!

0

23

Kohler 12 018 01-S

Retainer-Reed, Breather
(Superseded to 66 018 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 6

0

24

Kohler 12 402 02-S

REED-BREATHER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 8

0

Kohler 12 017 02-S

Valve-Intake (.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$30.99

$

In Stock, only 1 left!

0

Kohler 12 017 02-S

Valve-Intake (.25)

Note: Not illustrated

$30.99

$

In Stock, only 1 left!

0

Kohler 12 016 02-S

Valve-Exhaust (.25)

Note: Not illustrated

$

$

Not available

Kohler 12 016 02-S

Valve-Exhaust (.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 12 041 01-S

Gasket-Carburetor

Note: Not illustrated

$2.49

$

In Stock, Qty 14

0

Kohler 12 041 01-S

Gasket-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 14

0

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Not illustrated

$2.99

$

In Stock, Qty 5

0

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 5

0

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Not illustrated

$7.49

$

In Stock, Qty 11

0

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.49

$

In Stock, Qty 11

0
