74601 (Z 17-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000913 - 220999999) (2002) FUEL SYSTEM ASSEMBLY KOHLER CV 490S-27503 Parts Diagram

44" TimeCutter Zero-Turn Mower

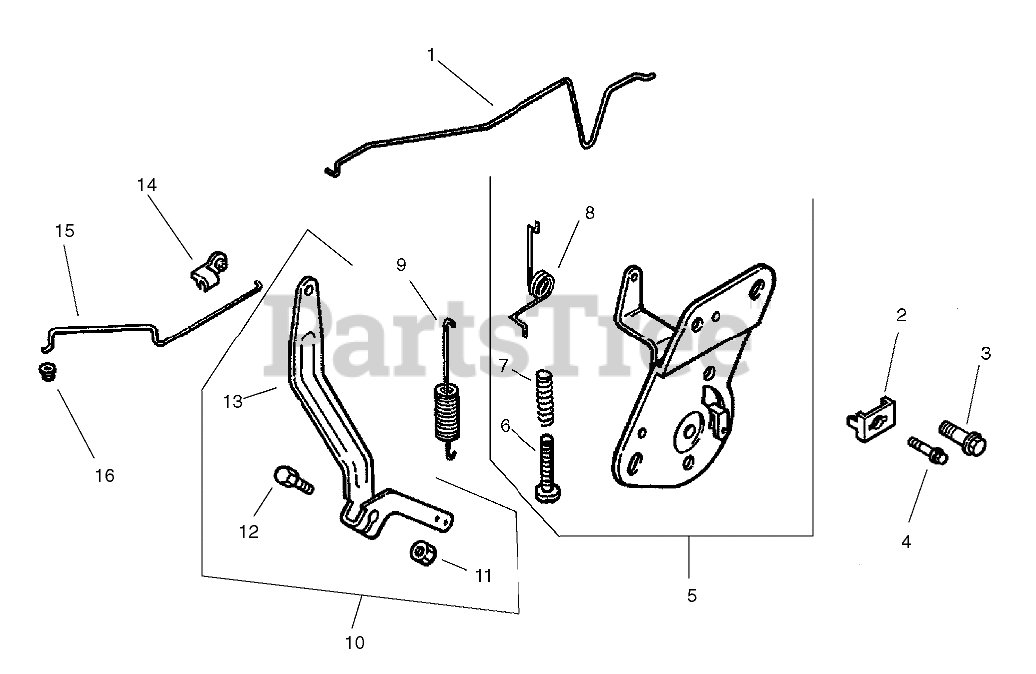

FUEL SYSTEM ASSEMBLY KOHLER CV 490S-27503 Parts Diagram

  • Title

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Used to attach carburetor ground lead to carburetor baffle.

$2.49

$

In Stock, only 3 left!

0

1

Kohler 12 079 11-S

Linkage-Choke

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 5

0

3

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

4

Kohler M-664020-S

Screw-Socket, 6 Lobed (Thread Forming, M6x1.0x20)
(Superseded to 25 086 403-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

5

Kohler 12 536 01-S

Control, speed assembly (Includes 6-8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler M-443025-S

Screw-SPH,M4x0.7x25

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

7

Kohler 12 089 11-S

Spring-Control, Speed

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 4 left!

0

8

Kohler 12 089 23-S

Spring-Return, Choke

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, only 1 left!

0

9

Kohler 12 089 19-S

Spring-Governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Kohler 12 755 83-S

Kit, governor lever (Includes 11-13)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

11

Kohler 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

12

Kohler 52 211 04-S

Bolt-Square Neck, Round Head (1/4-20x1)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

Usually ships in 2-5 days

0

13

Kohler 12 090 28-S

Lever-Governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 1 left!

0

14

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 2 left!

0

15

Kohler 12 079 10-S

Linkage-Throttle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 1 left!

0

16

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 18

0
