74601 (Z 17-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220000912) (2002) EXHAUST ASSEMBLY KOHLER CV 490-27503 Parts Diagram

44" TimeCutter Zero-Turn Mower

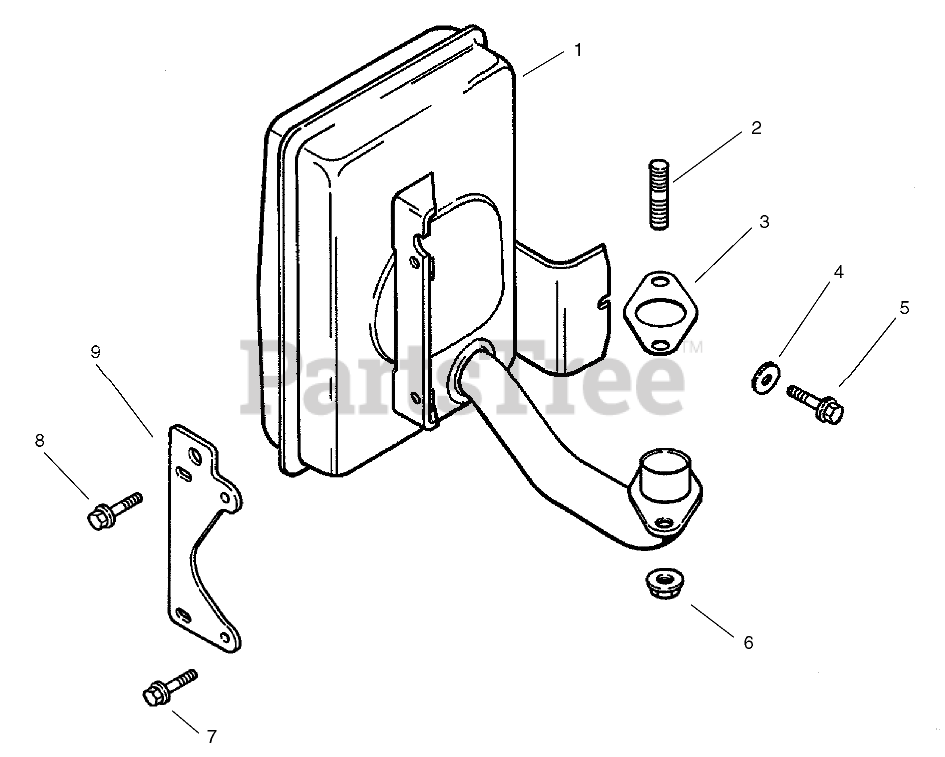

EXHAUST ASSEMBLY KOHLER CV 490-27503 Parts Diagram

  • Title

1

Kohler 12 068 55-S

Muffler

Note: Obtain parts from www.kohlerplus.com

$312.99

$

Usually ships in 2-5 days

0

2

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 3 left!

0

3

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, Qty 11

0

4

Kohler X-25-78-S

Washer-Plain (1/4in)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

5

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

6

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

7

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 15

0

8

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

9

Kohler 12 126 71-S

Bracket-Muffler

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 12 755 70-S

Kit, muffler guard (Includes Screw (4) M-545010-S)
(Superseded to 12 755 107-S)

Note: Obtain parts from www.kohlerplus.com

$99.99

$

In Stock, only 1 left!

0

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

Kohler 12 522 51

Short Block
(Superseded to 12 522 55)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 12 755 93-S

Gasket Set

Note: Obtain parts from www.kohlerplus.com

$89.99

$

Usually ships in 2-5 days

0
