74601 (Z 17-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220000912) (2002) 44IN DECK ASSEMBLY Parts Diagram

44" TimeCutter Zero-Turn Mower

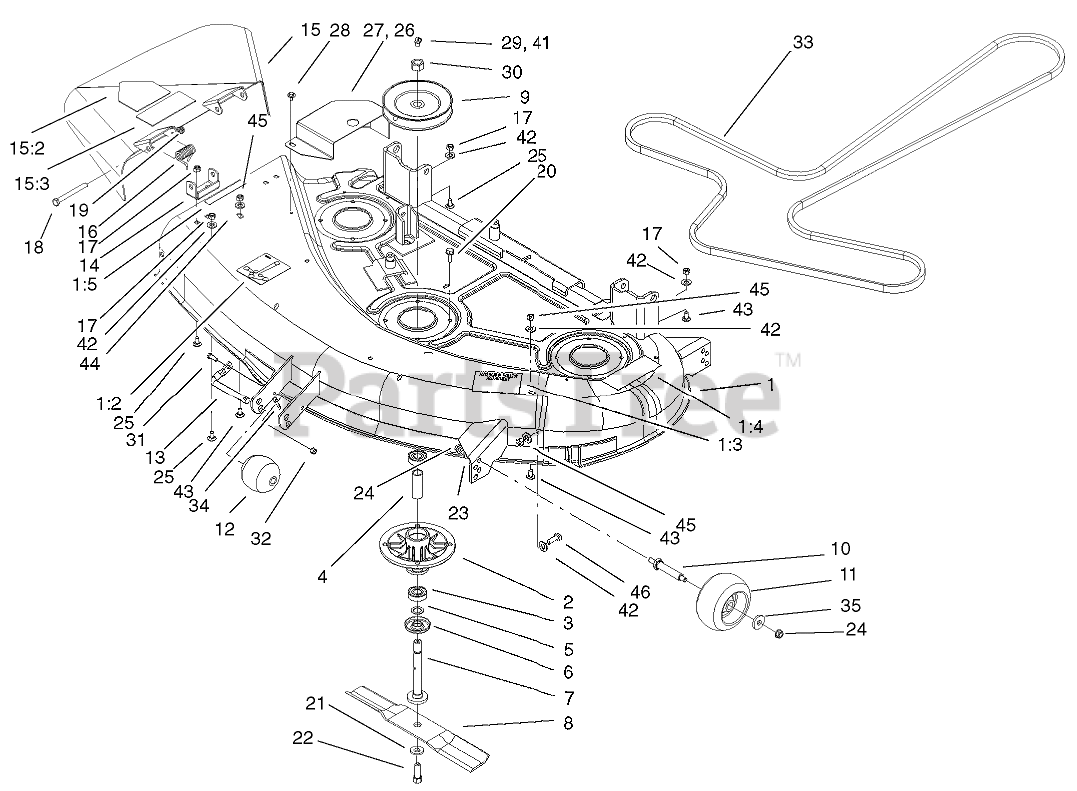

44IN DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 105-1948

44 INCH DECK ASM

$

$

Not available

1:2

Toro 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 1 left!

0

1:3

Toro 98-3798

DECAL-WHEEL, GAGE

$18.99

$

Usually ships in 3-6 days

0

1:4

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

1:5

Toro 92-7109

DECAL-CAUTION

$

$

Not available

2

Toro 88-4510

HOUSING-SPINDLE

$106.99

$

In Stock, Qty 7

0

3

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

4

Toro 94-7959

SPACER - BEARING

$42.99

$

Usually ships in 3-6 days

0

5

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 12

0

6

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

7

Toro 94-7547

SHAFT-CENTER, SPINDLE

$107.99

$

Usually ships in 3-6 days

0

8

Toro 54-0010-03

BLADE

$33.99

$

In Stock, only 3 left!

0

9

Toro 100-7321

PULLEY ASM

$210.99

$

Usually ships in 3-6 days

0

10

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 5

0

11

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

12

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

13

Toro 118960-03

Shaft-Roller

$43.99

$

In Stock, only 3 left!

0

14

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

15

Toro 100-8003

DEFLECTOR/DECAL ASM

$364.99

$

Usually ships in 3-6 days

0

15:2

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

15:3

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

16

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

19

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

20

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

21

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

22

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

23

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

24

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

26

Toro 104-3646-01

COVER-BELT, LH

$

$

Not available

27

Toro 104-3645-01

COVER-BELT, RH

$73.99

$

Usually ships in 3-6 days

0

28

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

29

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

30

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

31

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

34

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

35

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

41

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0

42

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

43

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

44

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

45

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

46

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0
