74601 (17K-44 ZX) - Toro 44" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) AIR INTAKE/FILTRATION ASSEMBLY KOHLER CV 490S-27503 Parts Diagram

44" TimeCutter Zero-Turn Mower

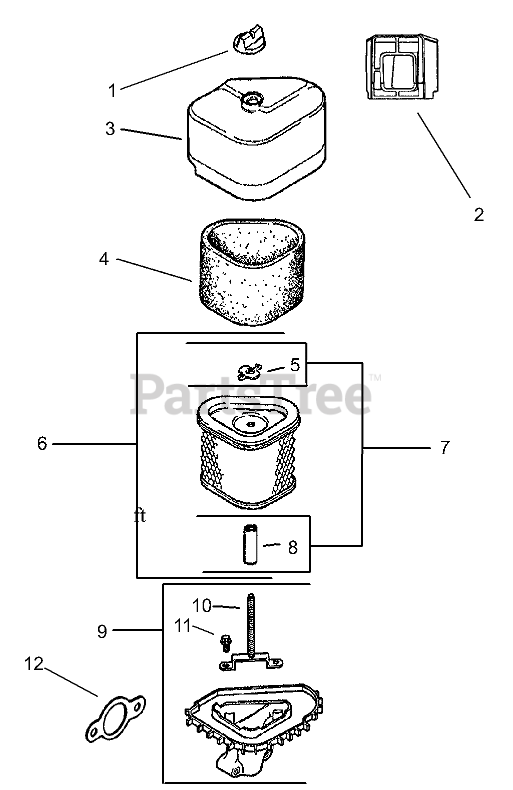

AIR INTAKE/FILTRATION ASSEMBLY KOHLER CV 490S-27503 Parts Diagram

  • Title

1

Kohler 25 341 03-S

Knob-Cover
(Superseded to 25 341 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

Usually ships in 2-5 days

0

2

Kohler 12 281 01-S

Duct, air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler 12 096 24-S

Cover-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 12 083 12-S

Element-Precleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, Qty 9

0

5

Kohler 12 100 08-S

Nut-Wing

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 12 083 10-S

Element, air cleaner (Includes 5, 7, 8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$19.99

$

In Stock, Qty 9

0

7

Kohler 12 743 12-S

Kit, air cleaner seal (Includes 5, 8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

Usually ships in 2-5 days

0

8

Kohler 12 032 11-S

Seal

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, only 1 left!

0

9

Kohler 12 094 07-S

Base, air cleaner (Includes 10, 11)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$62.99

$

Usually ships in 2-5 days

0

10

Kohler 12 072 04-S

Stud

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, Qty 5

0

11

Kohler 12 086 01-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 6

0

12

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 5

0
