74596 (DH 220) - Toro Lawn Tractor (SN: 317000001 - 317999999) (2017) BATTERY AND ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor

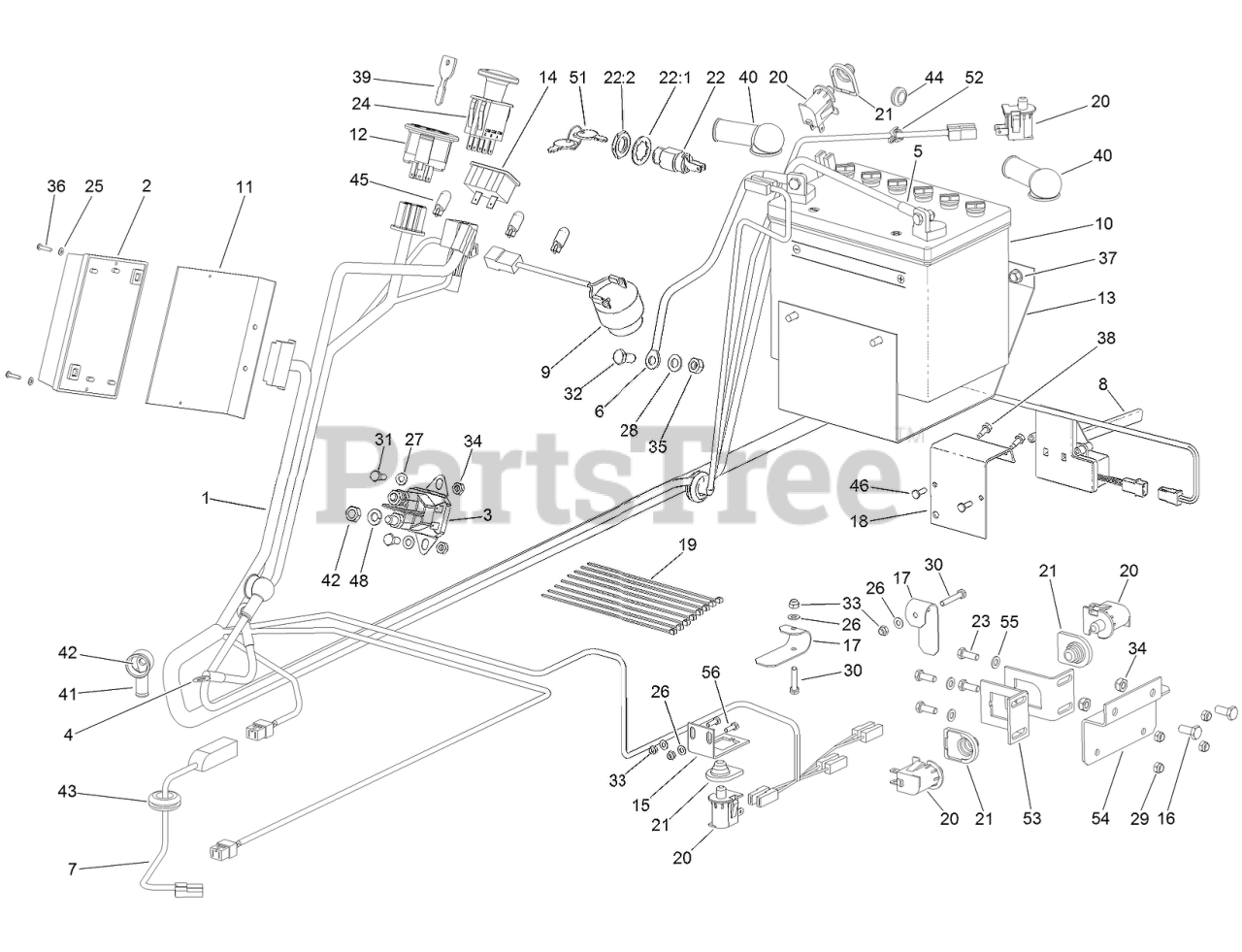

BATTERY AND ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 111-8251

HARNESS-WIRING

$

$

Currently unavailable

2

Toro 111-8248

CONTROL MODULE

$

$

Currently unavailable

3

Toro 740207

SOLENOID

$34.99

$

In Stock, Qty 5

0

4

Toro 125-2300

CABLE-STARTER

$

$

Currently unavailable

5

Toro 120-8729

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

6

Toro 119-5417

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

7

Toro 119-5430

HARNESS-CLUTCH

$

$

Currently unavailable

8

Toro 104-3074

OVERLOAD SWITCH ASM

$

$

Currently unavailable

9

Toro 119-5511

BUZZER

$

$

Not available

10

Toro 104-3152

BATTERY-12V
(Superseded to 104-8162)

$

$

Not available

11

Toro 119-5433

BRACKET-SUPPORT, MODULE

$41.99

$

Usually ships in 3-6 days

0

12

Toro 125-2295

SWITCH-IGNITION

$

$

Currently unavailable

13

Toro 125-2290

HOLDER-BATTERY

$

$

Currently unavailable

14

Toro 125-2296

HOURMETER

$

$

Currently unavailable

15

Toro 125-2291

HOLDER

$

$

Currently unavailable

16

Toro 111-8254

SCREW

$

$

Currently unavailable

17

Toro 125-2305

LEVER-SPRING

$

$

Currently unavailable

18

Toro 119-5431

BRACKET-SWITCH

$

$

Currently unavailable

19

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

20

Toro 104-3179

SWITCH-DELTA
(Superseded to 82-2190)

$14.99

$

In Stock, Qty 10

0

21

Toro 104-3178

COVER-PROTECTIVE

$

$

Not available

22

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

Usually ships in 3-6 days

0

22:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

22:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

23

Toro 111-8253

SCREW

$

$

Not available

24

Toro 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

25

Toro 119-5437

WASHER

$

$

Not available

26

Toro 104-2984

WASHER

$

$

Currently unavailable

27

Toro 104-3193

WASHER

$

$

Currently unavailable

28

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

29

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

30

Toro 104-3009

SCREW-HEX

$

$

Currently unavailable

31

Toro 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

32

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

33

Toro 104-2985

NUT-HEX

$

$

Currently unavailable

34

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

35

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

36

Toro 119-5436

SCREW

$

$

Not available

37

Toro 106-5763

Screw

$

$

Currently unavailable

38

Toro 104-2977

SCREW-TAP

$

$

Not available

39

Toro 119-5510

KEY-IGNITION

$

$

Currently unavailable

40

Toro 104-3154

BOOT-RUBBER

$

$

Currently unavailable

41

Toro 104-3187

BOOT-RUBBER

$

$

Currently unavailable

42

Toro 32128-32

NUT-HHF

$2.99

$

Usually ships in 3-6 days

0

43

Toro 125-2302

BUSHING

$

$

Currently unavailable

44

Toro 125-2303

BUSHING

$

$

Currently unavailable

45

Toro 104-3176

BULB

$

$

Currently unavailable

46

Toro 104-3349

Screw
(Superseded to 104-2977)

$

$

Not available

48

Toro 104-2927

WASHER-SPRING

$

$

Not available

51

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

52

Toro 104-3157

CLIP-SNAP

$

$

Currently unavailable

53

Toro 111-8247

HOLDER-SWITCH

$

$

Currently unavailable

54

Toro 111-8252

HOLDER-SWITCH

$

$

Currently unavailable

55

Toro 52-6430

WASHER

$0.99

$

In Stock, Qty 5

0

56

Toro 125-2304

SCREW

$

$

Currently unavailable
