74596 (DH 220) - Toro Lawn Tractor (SN: 314000001 - 314999999) (2014) CUTTING DRIVE SYSTEM ASSEMBLY NO. 111-6850 Parts Diagram

Lawn Tractor

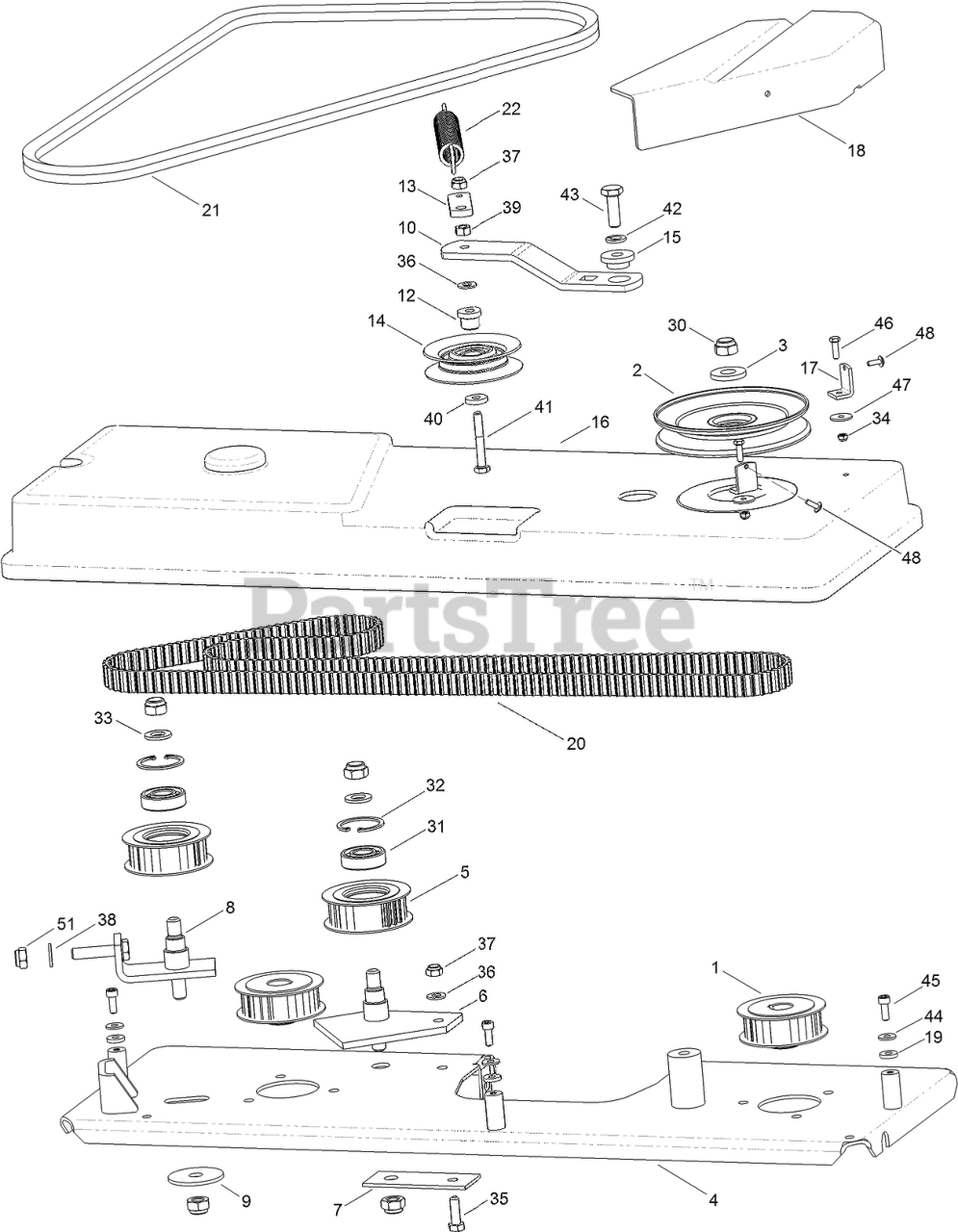

CUTTING DRIVE SYSTEM ASSEMBLY NO. 111-6850 Parts Diagram

  • Title
1

Toro 104-3116

PULLEY-COG, DRIVE

$

$

Currently unavailable

2

Toro 125-2263

PULLEY-DRIVE

$

$

Currently unavailable

3

Toro 33099-00

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

4

Toro 107-8996

PLATE-DRIVE, BLADE

$

$

Currently unavailable

5

Toro 104-3121

Pulley-Cog
(Superseded to 104-3113)

$

$

Not available

6

Toro 125-2264

BRACKET-IDLER

$

$

Currently unavailable

7

Toro 104-3117

PLATE-ANCHOR

$

$

Currently unavailable

8

Toro 125-2265

BRACKET-IDLER

$

$

Currently unavailable

9

Toro 103-8892

WASHER

$

$

Not available

10

Toro 125-2266

ARM-IDLER

$

$

Currently unavailable

12

Toro 104-3104

BUSHING

$

$

Currently unavailable

13

Toro 125-2185

LEVER-ENGAGEMENT

$

$

Currently unavailable

14

Toro 104-3103

PULLEY-IDLER

$

$

Currently unavailable

15

Toro 125-2268

SHIM-ARM, IDLER

$

$

Currently unavailable

16

Toro 106-8589

Belt-Cover

$

$

Currently unavailable

17

Toro 107-8940

BRACKET

$

$

Currently unavailable

18

Toro 107-8941

GUARD-BELT

$

$

Currently unavailable

19

Toro 83-7420

WASHER-RUBBER

$

$

Currently unavailable

20

Toro 106-8591

Belt-Cog

$

$

Not available

21

$

$

Currently unavailable

22

Toro 104-3101

SPRING

$

$

Currently unavailable

30

Toro 48-9540

NUT-LOCK, HEX NI

$0.99

$

Usually ships in 3-6 days

0

31

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

32

Toro 104-3123

RING-LOCKING

$

$

Currently unavailable

33

Toro 104-3124

WASHER-FLAT

$

$

Currently unavailable

34

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

35

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

36

Toro 106-4756

WASHER-PLAIN

$

$

Currently unavailable

37

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

38

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

39

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

40

Toro 106-8588

Washer-Flat

$

$

Currently unavailable

41

Toro 33114-050

Screw-HH

$2.99

$

Usually ships in 3-6 days

0

42

Toro 125-2269

WASHER

$

$

Currently unavailable

43

$

$

Currently unavailable

44

Toro 106-8568

Washer-Flat

$

$

Currently unavailable

45

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

46

$

$

Currently unavailable

47

Toro 125-2277

WASHER

$

$

Currently unavailable

48

$

$

Currently unavailable

51

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

52

Toro 111-6850

CUTTING UNIT ASM

Note: Not illustrated

$

$

Currently unavailable
