74596 (DH 220) - Toro Lawn Tractor (SN: 312000001 - 312999999) (2012) ENGINE AND MUFFLER ASSEMBLY Parts Diagram

Lawn Tractor

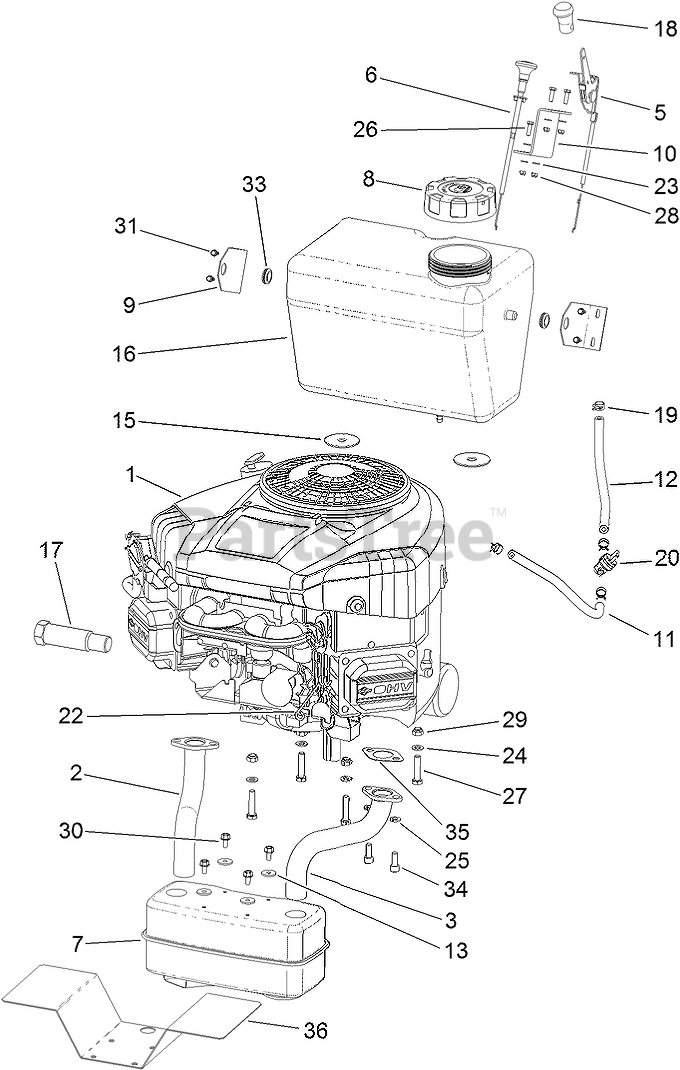

ENGINE AND MUFFLER ASSEMBLY Parts Diagram

  • Title
1

ENGINE-BRIGGS, 40R777-0007-B1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 40R777-0007-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2

Toro 125-2217

TUBE-EXHAUST, RH

$

$

Currently unavailable

3

Toro 125-2218

TUBE-EXHAUST, LH

$

$

Currently unavailable

5

Toro 125-2215

CONTROL-THROTTLE, TWIN

$

$

Currently unavailable

6

Toro 125-2216

CONTROL-CHOKE, TWIN

$

$

Currently unavailable

7

Toro 104-3225

MUFFLER

$

$

Currently unavailable

8

Toro 119-5354

CAP-FUEL
(Superseded to 88-3980)

$33.99

$

In Stock, Qty 16

0

9

Toro 125-2202

BRACKET-FUEL, TANK

$

$

Currently unavailable

10

Toro 125-2206

HOLDER

$

$

Currently unavailable

11

Toro 125-2212

LINE-FUEL

$

$

Currently unavailable

12

Toro 125-2203

LINE-FUEL

$

$

Currently unavailable

13

Toro 125-2205

WASHER-MUFFLER

$

$

Currently unavailable

15

Toro 119-5500

WASHER-RUBBER

$

$

Currently unavailable

16

Toro 119-5358

TANK-FUEL

$

$

Currently unavailable

17

Toro 120-8755

COUPLER-DRAIN, OIL

$

$

Currently unavailable

18

Toro 119-5448

KNOB-THROTTLE/CHOKE

$

$

Currently unavailable

19

Toro 104-3212

CLAMP-LINE, FUEL

$

$

Currently unavailable

20

Toro 104-3224

VALVE-TANK, FUEL

$

$

Currently unavailable

22

Toro 104-3156

HOLDER-HARNESS, WIRING

$

$

Currently unavailable

23

Toro 52-6430

WASHER

$0.99

$

In Stock, Qty 5

0

24

Toro 106-4756

WASHER-PLAIN

$

$

Currently unavailable

25

Toro 104-2927

WASHER-SPRING

$

$

Not available

26

$

$

Currently unavailable

27

Toro 33114-035

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

28

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

29

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

30

Toro 110-7170

SCREW-HH

$

$

Currently unavailable

31

Toro 104-2977

SCREW-TAP

$

$

Not available

33

Toro 119-5364

BUSHING

$

$

Currently unavailable

34

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro 104-3226

GASKET-EXHAUST

$11.99

$

In Stock, Qty 10

0

36

Toro 125-2195

COVER-TUBE

$

$

Currently unavailable
