74593 (DH 220) - Toro Lawn Tractor (SN: 290000001 - 290999999) (2009) DECK HOUSING ASSEMBLY Parts Diagram

Lawn Tractor

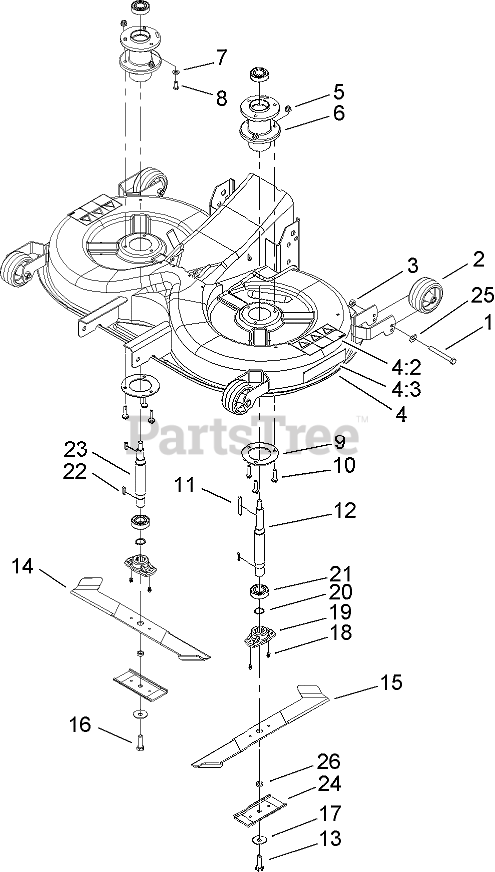

DECK HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 33115-090

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

2

Toro 104-3080

WHEEL-GAUGE

$

$

Currently unavailable

3

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

4

Toro 110-9071

DECK ASM
(Superseded to 120-8780)

$

$

Not available

4:2

Toro 93-7824

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

4:3

Toro 106-8563

Decal-Recycler

$

$

Not available

5

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

6

Toro 107-8992

HOUSING-SPINDLE

$

$

Currently unavailable

7

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

8

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Toro 104-3084

SUPPORT-RING

$

$

Currently unavailable

10

Toro 104-3085

BOLT-HHF

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Toro 106-8565

Shaft-Blade, LEFT

$

$

Currently unavailable

13

Toro 106-5797

BOLT-HH

$

$

Currently unavailable

14

Toro 106-8557

BLADE-RH

$

$

Currently unavailable

15

Toro 106-8558

BLADE-LH

$

$

Currently unavailable

16

Toro 106-5798

BOLT-BLADE, HH

$

$

Currently unavailable

17

Toro 106-6532

WASHER-BLADE

$

$

Currently unavailable

18

Toro 104-3093

PIN-SHEAR, GROOVED

$

$

Currently unavailable

19

Toro 106-4185

Adapter-Blade

$

$

Currently unavailable

20

Toro 104-3095

RING-LOCKING

$

$

Currently unavailable

21

Toro 104-6325

BEARING-BALL
(Superseded to 116-0720)

$22.99

$

In Stock, Qty 20+

0

22

Toro 104-3097

KEY-SQUARE

$

$

Currently unavailable

23

Toro 106-8566

Shaft-BLADE, Right

$

$

Currently unavailable

24

Toro 106-6533

STIFFENER-BLADE

$

$

Not available

25

Toro 106-5767

Washer

$

$

Currently unavailable

26

Toro 106-6530

Spacer

$

$

Currently unavailable
