74592 (DH 220) - Toro Lawn Tractor (SN: 270000001 - 270000651) (2007) HARNESS ASSEMBLY Parts Diagram

Lawn Tractor

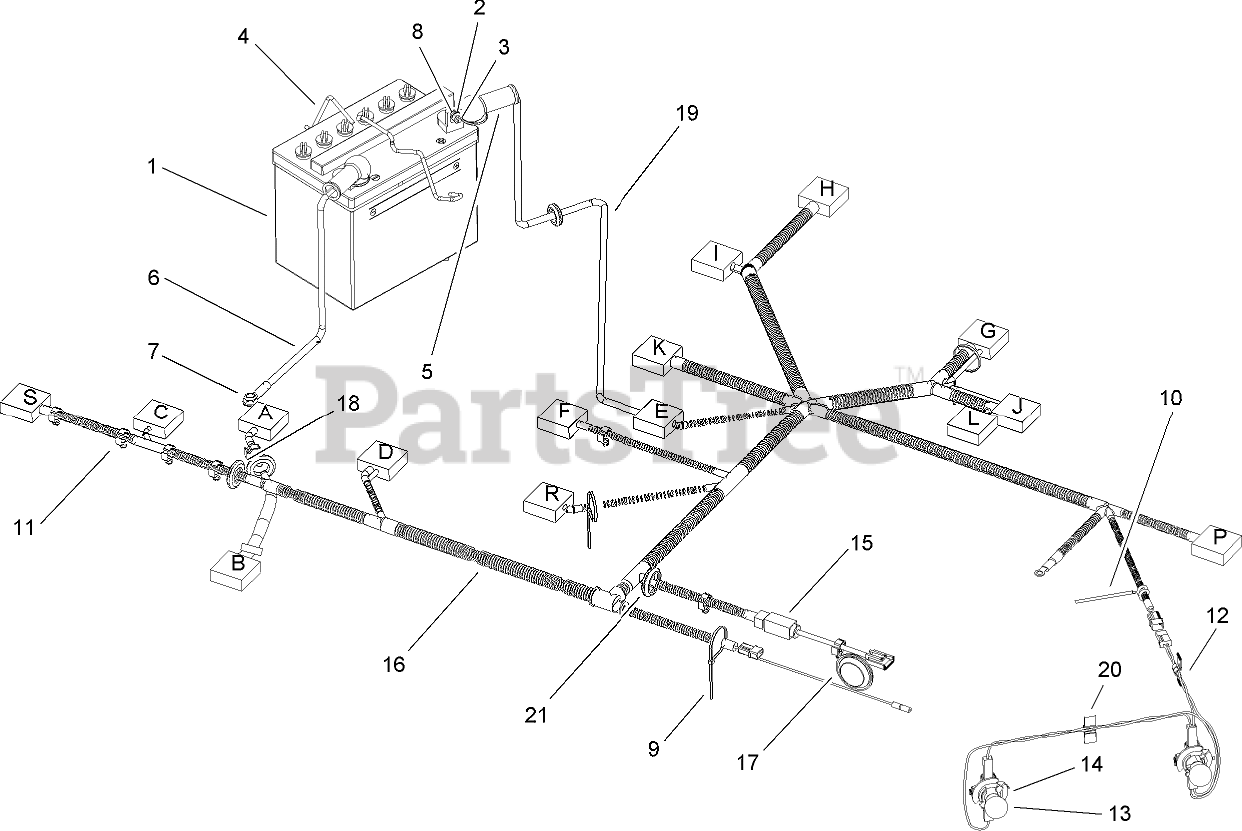

HARNESS ASSEMBLY Parts Diagram

  • Title
1

Toro 104-2491

BATTERY
(Superseded to 104-8162)

$

$

Not available

2

Toro 33013-00

NUT-HEX

$2.49

$

In Stock, only 3 left!

0

3

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 110-8676

CLAMP-BATTERY

$

$

Not available

5

Toro 104-3154

BOOT-RUBBER

$

$

Currently unavailable

6

Toro 110-8678

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

7

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

8

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

9

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

10

Toro 104-3156

HOLDER-HARNESS, WIRING

$

$

Currently unavailable

11

Toro 104-3157

CLIP-SNAP

$

$

Currently unavailable

12

Toro 88-4320

HARNESS-WIRE, LIGHTS

$76.99

$

Usually ships in 3-6 days

0

13

Toro 104-3158

BULB-LIGHT

$11.99

$

Usually ships in 3-6 days

0

14

Toro 104-3159

SOCKET-LIGHT

$

$

Not available

15

Toro 104-3160

HARNESS-CLUTCH

$

$

Not available

16

Toro 108-8750

HARNESS-WIRING

$

$

Not available

17

$

$

Not available

18

Toro 104-3165

BUSHING

$

$

Not available

19

Toro 110-8677

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

20

Toro 104-3167

CLIP-NYLON

$

$

Currently unavailable

21

Toro 104-3168

BUSHING

$

$

Not available
