74592 (DH 220) - Toro Lawn Tractor (SN: 270000001 - 270000651) (2007) GASKET SET BRIGGS AND STRATTON 441677-0136-E1 Parts Diagram

Lawn Tractor

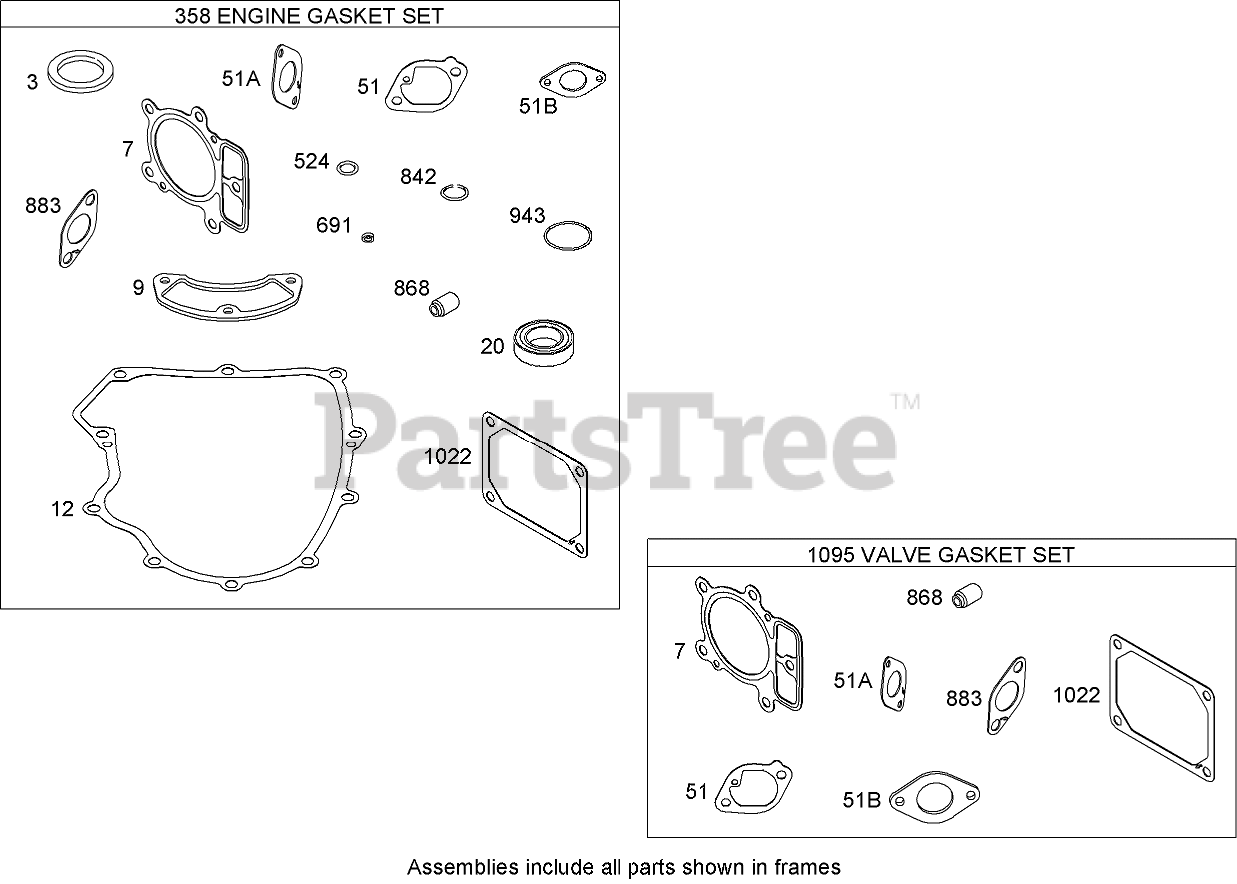

GASKET SET BRIGGS AND STRATTON 441677-0136-E1 Parts Diagram

  • Title

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

7

Briggs & Stratton 693997

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 693997

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set (Ref. No. 1095)

$24.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 693997

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$24.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 690937

Gasket-Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 690937

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

Note: Included in Engine Gasket Set (Ref. No. 358)

$37.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 791892

Seal-Oil (P-T-O Side)
(Superseded to 795387)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 791892

Seal-Oil (P-T-O Side)
(Superseded to 795387)

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 699800

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, only 3 left!

0

51

Briggs & Stratton 699800

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.49

$

In Stock, only 3 left!

0

51

Briggs & Stratton 699800

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$3.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 690949

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 690949

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 690949

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.49

$

In Stock, only 1 left!

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$4.49

$

In Stock, only 1 left!

0

51B

Briggs & Stratton 699803

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.49

$

In Stock, only 1 left!

0

358

Briggs & Stratton 699823

Engine Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$100.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

Seal, O-Ring (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

Seal, O-Ring (Dipstick Tube)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 790574

Seal-Shaft, Governor

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

In Stock, Qty 20+

0

691

Briggs & Stratton 790574

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

842

Briggs & Stratton 691031

Seal, O-Ring (Dipstick)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

842

Briggs & Stratton 691031

Seal, O-Ring (Dipstick)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.49

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Engine Gasket Set (Ref. No. 358)

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Valve Gasket Set (Ref. No. 1095)

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Included in Valve Gasket Set (Ref. No. 1095)

$4.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

Seal, O-Ring (Oil Pump Cover)

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

Seal, O-Ring (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 690971

Gasket-Cover, Rocker

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 690971

Gasket-Cover, Rocker

Note: Included in Valve Gasket Set (Ref. No. 1095)

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 690971

Gasket-Cover, Rocker

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.49

$

In Stock, Qty 20+

0

1095

Briggs & Stratton 699822

Valve Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

In Stock, Qty 8

0
