74591 (DH 220) - Toro Lawn Tractor (SN: 260000001 - 260999999) (2006) OIL FILTER, TUBE AND PUMP ASSEMBLY BRIGGS AND STRATTON 441577-0120-E1 Parts Diagram

Lawn Tractor

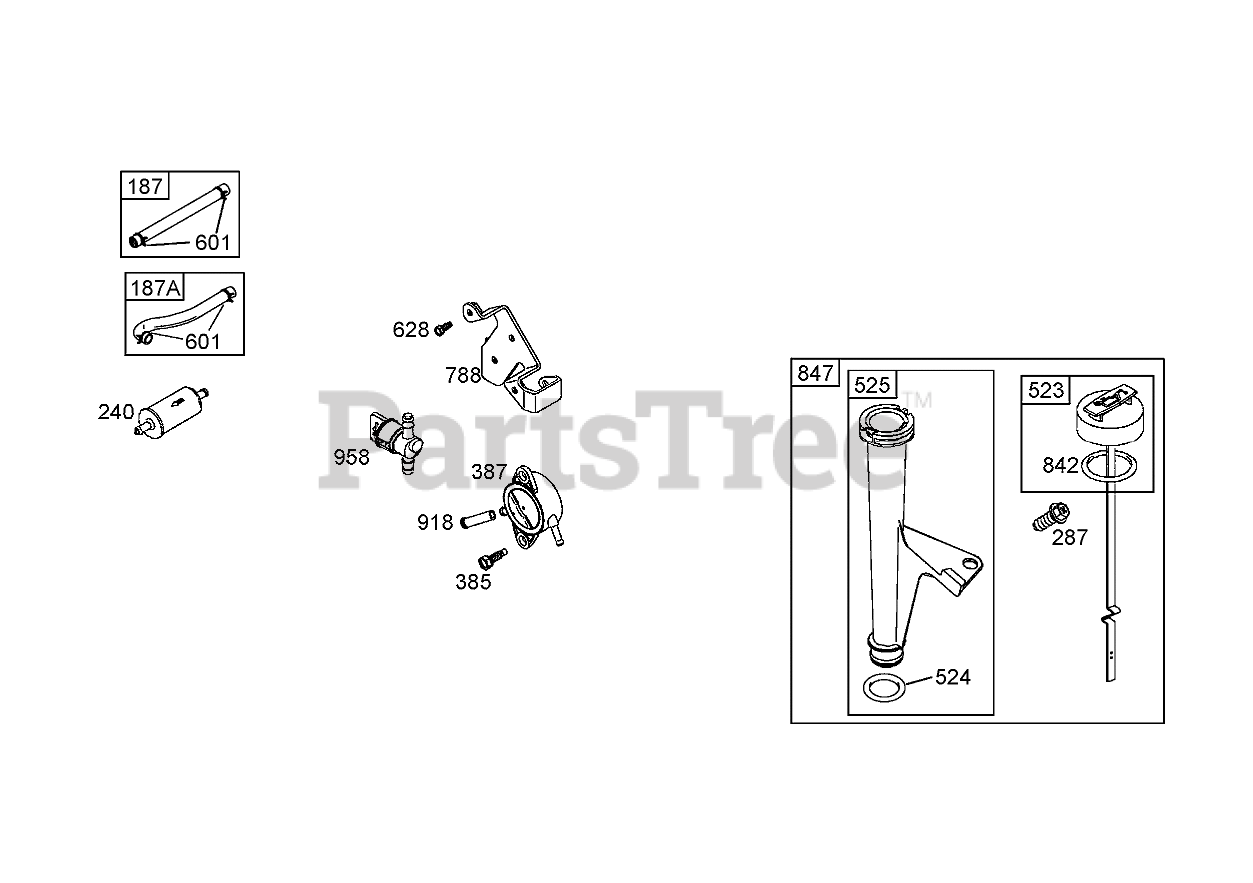

OIL FILTER, TUBE AND PUMP ASSEMBLY BRIGGS AND STRATTON 441577-0120-E1 Parts Diagram

  • Title

187

Briggs & Stratton 791744

Line-Fuel

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

187A

Briggs & Stratton 791872

Line-Fuel (Molded)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 691035

Filter-Fuel
(Superseded to 84001895)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

287

Briggs & Stratton 691108

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 691108

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

387

Briggs & Stratton 808656

Pump-Fuel
(Superseded to 597338)

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, Qty 20+

0

523

Briggs & Stratton 691036

Dipstick
(Superseded to 594528)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

In Stock, only 1 left!

0

525

Briggs & Stratton 691037

Tube-Dipstick
(Superseded to 597129)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 691038

Clamp-Hose

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 16

0

628

Briggs & Stratton 691108

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

788

Briggs & Stratton 691039

Bracket-Pump, Fuel

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691031

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

842

Briggs & Stratton 691031

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 499602

Dipstick and Tube ASM
(Superseded to 594609)

Note: Obtain parts from www.briggsandstratton.com

$47.99

$

In Stock, only 2 left!

0

918

Briggs & Stratton 694000

Hose-Vacuum

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 20+

0

958

Briggs & Stratton 698183

Valve?Shut Off, Fuel

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 20+

0
