74591 (DH 220) - Toro Lawn Tractor (SN: 260000001 - 260999999) (2006) CRANKCASE ASSEMBLY BRIGGS AND STRATTON 441577-0120-E1 Parts Diagram

Lawn Tractor

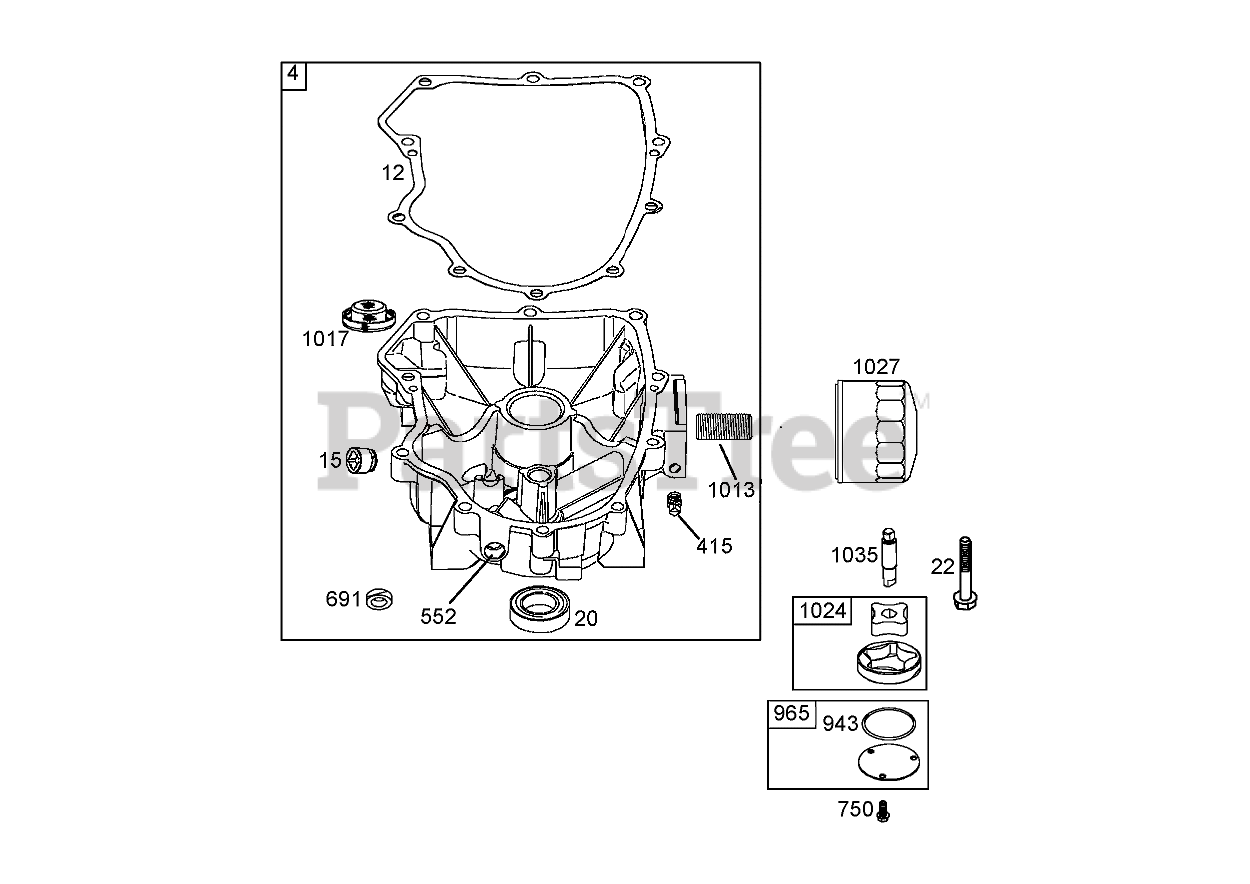

CRANKCASE ASSEMBLY BRIGGS AND STRATTON 441577-0120-E1 Parts Diagram

  • Title

4

Briggs & Stratton 699747

Sump-Engine
(Superseded to 796307)

Note: Obtain parts from www.briggsandstratton.com

$278.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

Note: Included in Engine Gasket Set (Ref. No. 358)

$37.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

Screw

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 91488

Plug-Oil
(Superseded to 794903)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 690552

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 9

0

691

Briggs & Stratton 790574

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

691

Briggs & Stratton 790574

Seal-Shaft, Governor

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

In Stock, Qty 20+

0

750

Briggs & Stratton 696999

Screw

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

Usually ships in 2-12 days

0

943

Briggs & Stratton 690589

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

Cover-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 10

0

1013

Briggs & Stratton 690954

Nipple-Filter, Oil

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 5

0

1017

Briggs & Stratton 690770

Screen-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1024

Briggs & Stratton 499054

Pump-Oil
(Superseded to 794644)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

Usually ships in 2-12 days

0

1027

Toro 492932s

Filter-Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1035

Briggs & Stratton 691042

Shaft-Pump, Oil
(Superseded to 794644)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

Usually ships in 2-12 days

0
