74590 (DH 220) - Toro Lawn Tractor (SN: 250000001 - 250999999) (2005) FRONT AXLE ASSEMBLY Parts Diagram

Lawn Tractor

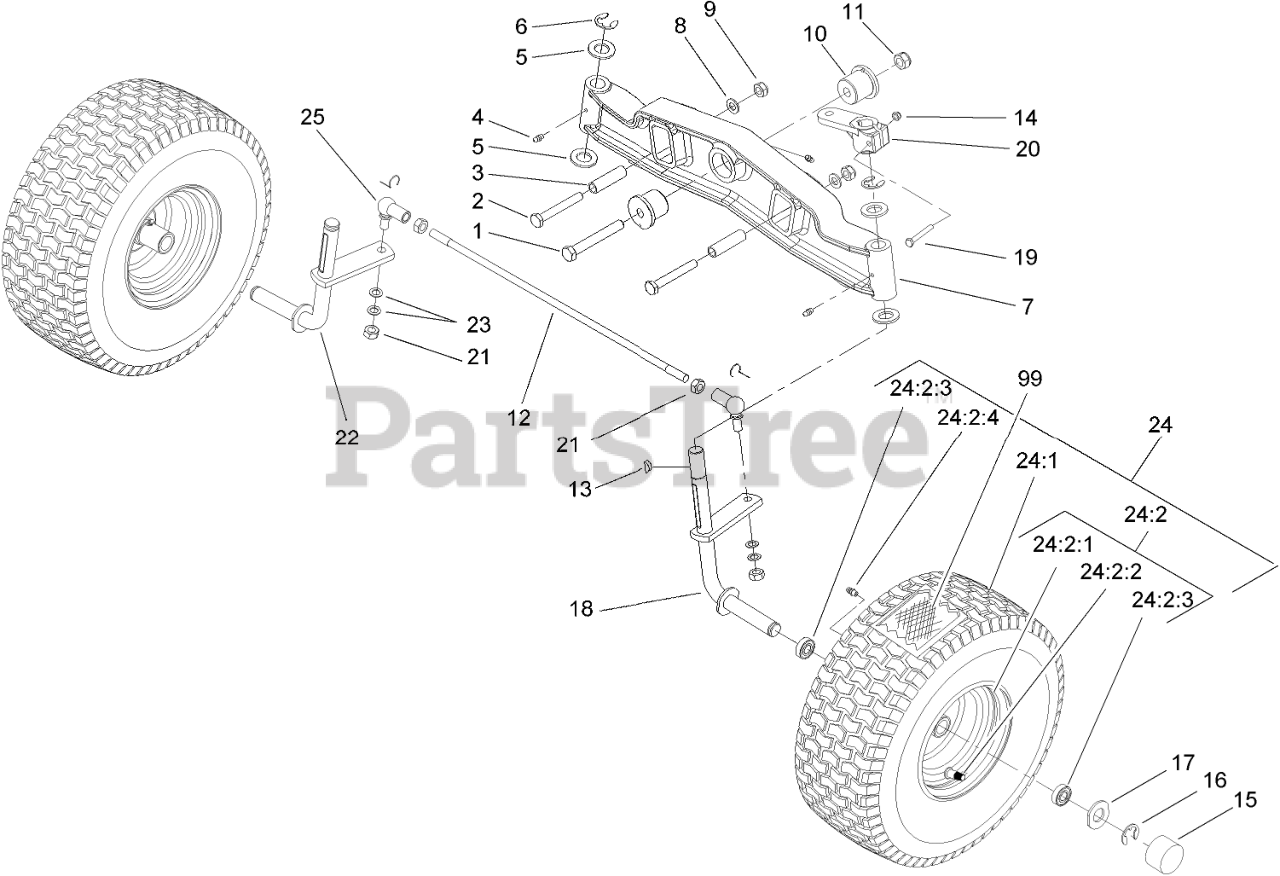

FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 33116-090

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

2

Toro 33115-080

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

3

Toro 104-2851

SPACER

$

$

Currently unavailable

4

Toro 104-2904

FITTING-GREASE

$

$

Currently unavailable

5

Toro 104-2905

WASHER-FLAT

$

$

Not available

6

Toro 104-2891

CLIP-SPRING

$

$

Currently unavailable

7

Toro 104-2852

AXLE-FRONT

$

$

Currently unavailable

8

Toro 104-2906

WASHER-FLAT

$

$

Not available

9

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

10

Toro 104-2890

BUSHING-AXLE, FRONT

$

$

Currently unavailable

11

Toro 104-2907

NUT-LOCKING, SELF

$

$

Currently unavailable

12

Toro 104-2855

ROD-TIE, FRONT AXLE

$

$

Currently unavailable

13

Toro 104-2856

KEY-WOODRUFF

$

$

Currently unavailable

14

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

15

Toro 104-2857

CAP-HUB

$

$

Currently unavailable

16

Toro 104-2891

CLIP-SPRING

$

$

Currently unavailable

17

Toro 107-8998

RETAINER-CAP, HUB

$

$

Currently unavailable

18

Toro 104-2861

SPINDLE-LH
(Superseded to 108-8773)

$

$

Not available

19

Toro 33113-045

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

20

Toro 104-2862

LEVER-SPINDLE, STEERING

$

$

Currently unavailable

21

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

22

Toro 104-2867

SPINDLE-RH
(Superseded to 110-9084)

$

$

Not available

23

Toro 106-5757

Washer

$

$

Currently unavailable

24

Toro 107-8930

TIRE and WHEEL ASM
(Superseded to 110-9085)

$

$

Not available

24:1

$142.99

$

Usually ships in 3-6 days

0

24:2

Toro 108-8705

WHEEL ASM
(Superseded to 110-9086)

$

$

Not available

24:2:1

RIM

Note: Not serviced separately

$

$

Not available

24:2:2

Toro 106-8596

Valve-Tire

$

$

Not available

24:2:3

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 3 left!

0

24:2:4

Fitting-Grease

Note: Not serviced separately

$

$

Not available

25

Toro 104-2876

JOINT-BALL, ANGLE

$

$

Not available

99

Toro 112819

TUBE-INNER

$46.99

$

Usually ships in 3-6 days

0
