74590 (190-DH) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) STARTER ASSEMBLY BRIGGS AND STRATTON 406777-0157-E1 Parts Diagram

Lawn Tractor

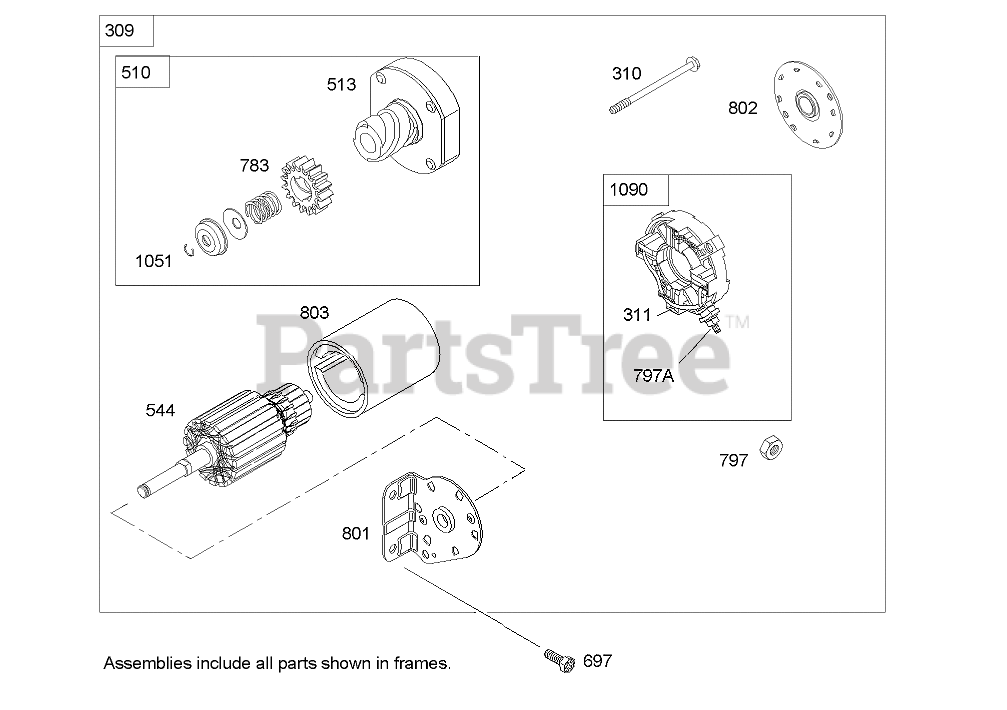

STARTER ASSEMBLY BRIGGS AND STRATTON 406777-0157-E1 Parts Diagram

  • Title

309

Briggs & Stratton 691262

Motor-Starter
(Superseded to 795121)

Note: Obtain parts from www.briggsandstratton.com

$143.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 691263

Bolt

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

311

Briggs & Stratton 497608

Brush Set

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, only 3 left!

0

510

Briggs & Stratton 497606

Drive-Starter
(Superseded to 696541)

Note: Obtain parts from www.briggsandstratton.com

$90.99

$

In Stock, Qty 9

0

513

Briggs & Stratton 398003

Clutch ASM
(Superseded to 692024)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 2 left!

0

544

Starter Armature (Serviced By 691262 Starter Motor Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 6

0

783

Briggs & Stratton 693058

Gear-Pinion
(Superseded to 695708)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 3 left!

0

797

Briggs & Stratton 92278

Nut-Hex
(Superseded to 691029)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

797A

Briggs & Stratton 693167

Nut

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

Cap-Drive

Note: Obtain parts from www.briggsandstratton.com

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 497607

Cap-End
(Superseded to 691286)

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

803

Housing-Starter (Serviced By 691262 Starter Motor Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1051

Briggs & Stratton 263080

Retainer
(Superseded to 691265)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

1090

Briggs & Stratton 497605

Cap-End
(Superseded to 691293)

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, Qty 6

0
