74590 (190-DH) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) OIL FILTER, TUBE, AND PUMP ASSEMBLY BRIGGS AND STRATTON 406777-0157-E1 Parts Diagram

Lawn Tractor

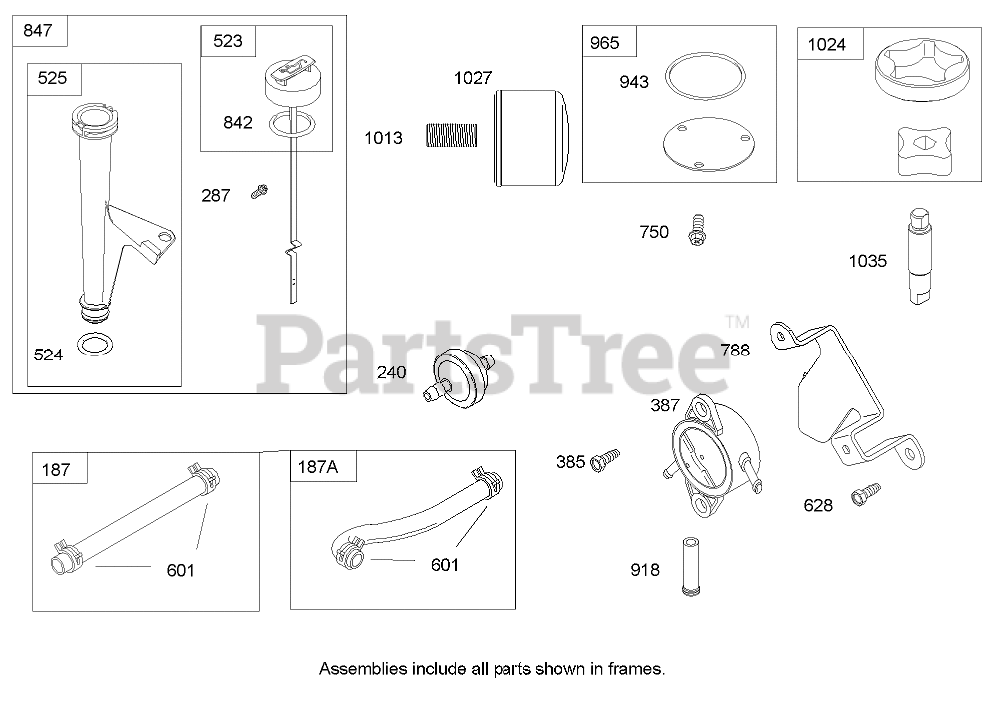

OIL FILTER, TUBE, AND PUMP ASSEMBLY BRIGGS AND STRATTON 406777-0157-E1 Parts Diagram

  • Title

187

Briggs & Stratton 398367

Hose-Fuel
(Superseded to 791744)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 2 left!

0

187A

Briggs & Stratton 691049

Line-Fuel (Molded)
(Superseded to 791744)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 2 left!

0

240

Briggs & Stratton 691035

Filter-Fuel
(Superseded to 84001895)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

287

Briggs & Stratton 690960

Screw
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 690960

Screw
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

387

Briggs & Stratton 808656

Pump-Fuel
(Superseded to 597338)

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, Qty 20+

0

523

Briggs & Stratton 691036

Dipstick
(Superseded to 594528)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, only 1 left!

0

525

Briggs & Stratton 691037

Tube-Dipstick
(Superseded to 597129)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

628

Briggs & Stratton 690960

Screw
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

750

Briggs & Stratton 691033

Screw
(Superseded to 790832)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

788

Briggs & Stratton 691039

Bracket-Pump, Fuel

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 499602

Dipstick and Tube ASM
(Superseded to 594609)

Note: Obtain parts from www.briggsandstratton.com

$47.99

$

In Stock, only 2 left!

0

918

Briggs & Stratton 694000

Hose-Vacuum

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

Cover-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 10

0

1013

Briggs & Stratton 690954

Nipple-Filter, Oil

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 5

0

1024

Briggs & Stratton 499054

Pump-Oil
(Superseded to 794644)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 492932

Filter-Oil
(Superseded to 492932S)

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, Qty 20+

0

1035

Briggs & Stratton 691042

Shaft-Pump, Oil
(Superseded to 794644)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

Usually ships in 2-12 days

0
