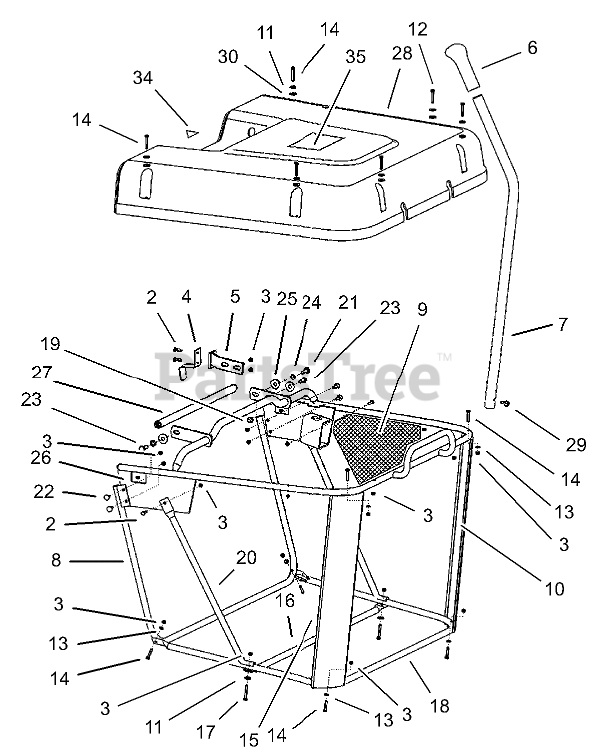

74590 (190-DH) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) GRASS COLLECTOR ASSEMBLY Parts Diagram

Lawn Tractor

GRASS COLLECTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 106-5760

COLLECTOR ASM

Note: Not illustrated

$

$

Currently unavailable

2

Toro 60-6910

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

3

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

4

Toro 104-3033

SPRING-COLL, INTERLOCK SWITCH

$

$

Currently unavailable

5

Toro 106-5761

Bracket-Spring

$

$

Currently unavailable

6

Toro 104-3035

GRIP-HANDLE

$

$

Currently unavailable

7

Toro 104-3036

LEVER-DUMPING

$

$

Currently unavailable

8

Toro 104-3037

FRONT FRAME ASM

$

$

Currently unavailable

9

Toro 104-3038

BAG-GRASS

$

$

Currently unavailable

10

Toro 104-3039

SUPPORT-CORNER, RIGHT

$

$

Currently unavailable

11

Toro 104-2943

WASHER-FLAT

$

$

Currently unavailable

12

Toro 104-2891

CLIP-SPRING

$

$

Currently unavailable

13

Toro 52-6430

WASHER

$0.99

$

In Stock, Qty 5

0

14

Toro 104-3041

SCREW-HEX

$

$

Currently unavailable

15

Toro 104-3042

SUPPORT-CORNER, LEFT

$

$

Currently unavailable

16

Toro 104-3043

BRACE-CONNECTING

$

$

Currently unavailable

17

Toro 104-3044

SCREW-HEX

$

$

Currently unavailable

18

Toro 104-3045

BOTTOM FRAME ASM

$

$

Currently unavailable

19

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

20

$

$

Currently unavailable

21

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

22

Toro 104-2948

BOLT-CARRIAGE

$

$

Currently unavailable

23

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

24

Toro 42-9850

WASHER-LOCK, SPRING
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

25

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable

26

Toro 104-3047

TOP FRAME ASM

$

$

Currently unavailable

27

Toro 104-3048

HANDLE-LIFT

$

$

Currently unavailable

28

Toro 106-5762

Cover-Collector

$

$

Currently unavailable

29

$

$

Currently unavailable

30

Toro 104-2952

WASHER-RUBBER

$

$

Currently unavailable

34

Toro 104-3242

DECAL-BAG TO FRAME

$

$

Currently unavailable

35

Toro 104-3322

DECAL - HORSEHEAD

$

$

Not available
