74590 (190-DH) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) FRONT AXLE ASSEMBLY Parts Diagram

Lawn Tractor

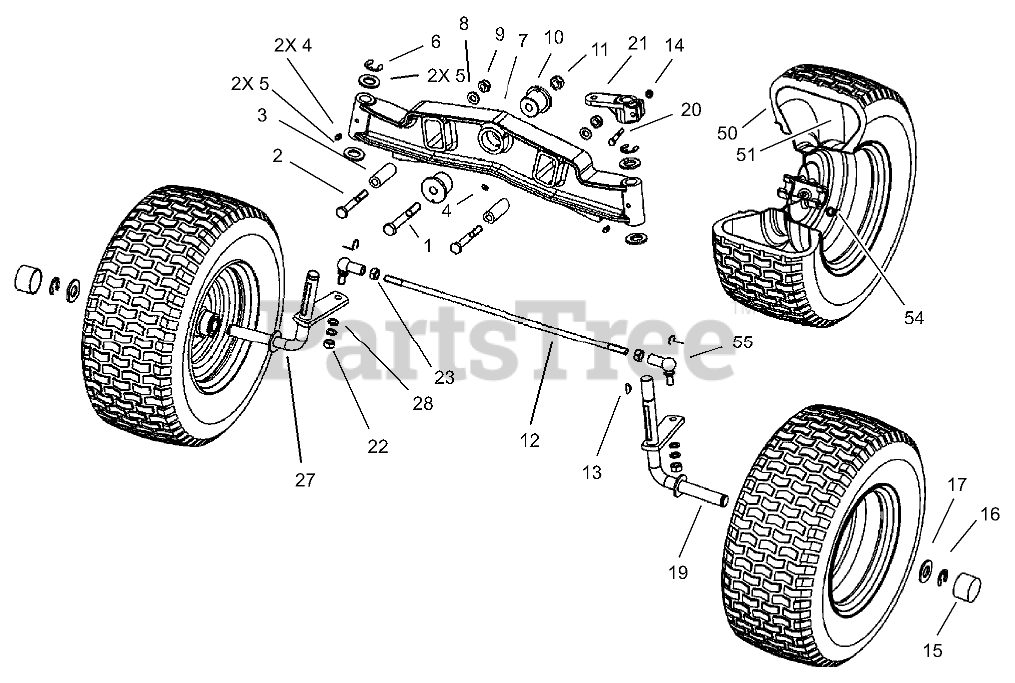

FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 33116-090

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

2

Toro 33115-080

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

3

Toro 104-2851

SPACER

$

$

Currently unavailable

4

Toro 104-2904

FITTING-GREASE

$

$

Currently unavailable

5

Toro 104-2905

WASHER-FLAT

$

$

Not available

6

Toro 104-2891

CLIP-SPRING

$

$

Currently unavailable

7

Toro 104-2852

AXLE-FRONT

$

$

Currently unavailable

8

Toro 104-2906

WASHER-FLAT

$

$

Not available

9

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

10

Toro 104-2890

BUSHING-AXLE, FRONT

$

$

Currently unavailable

11

Toro 104-2907

NUT-LOCKING, SELF

$

$

Not available

12

Toro 104-2855

ROD-TIE, FRONT AXLE

$

$

Currently unavailable

13

Toro 104-2856

KEY-WOODRUFF

$

$

Currently unavailable

14

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

15

Toro 104-2857

CAP-HUB

$

$

Currently unavailable

16

Toro 104-2891

CLIP-SPRING

$

$

Currently unavailable

17

Toro 104-3206

WASHER

$

$

Currently unavailable

19

Toro 104-2861

SPINDLE-LH
(Superseded to 108-8773)

$

$

Not available

20

Toro 33113-045

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

21

Toro 104-2862

LEVER-SPINDLE, STEERING

$

$

Currently unavailable

22

Toro 33015-00

NUT-HEX
(Superseded to 48-7960)

$1.99

$

Usually ships in 3-6 days

0

23

Toro 21-0360

NUT-HEX

$2.49

$

Usually ships in 3-6 days

0

27

Toro 104-2867

SPINDLE-RH
(Superseded to 110-9084)

$

$

Not available

28

Toro 106-5757

Washer

$

$

Not available

50

Toro 104-2869

TIRE- TURF SAVER 2 PLY

$

$

Not available

51

$

$

Not available

54

Toro 104-2875

VALVE-TYRE
(Superseded to 106-8596)

$

$

Not available

55

Toro 104-2876

JOINT-BALL, ANGLE

$

$

Not available
