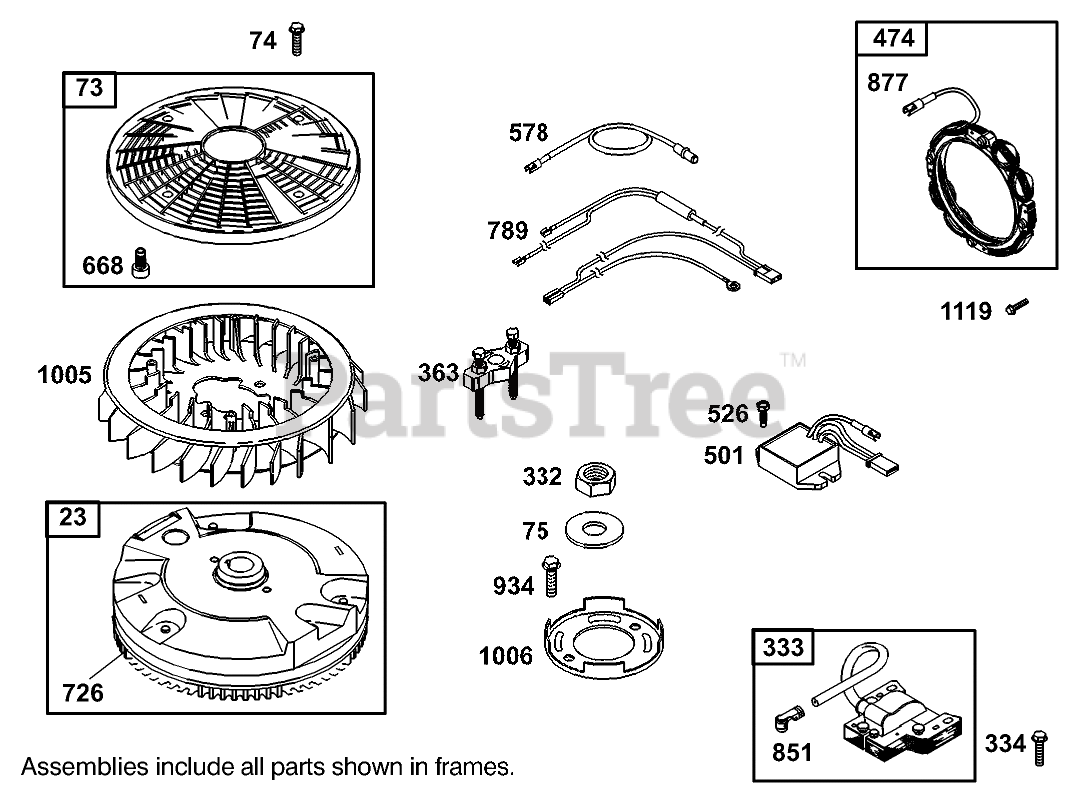

74590 (190-DH) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) FLYWHEEL ASSEMBLY BRIGGS AND STRATTON 406777-0157-E1 Parts Diagram

Lawn Tractor

FLYWHEEL ASSEMBLY BRIGGS AND STRATTON 406777-0157-E1 Parts Diagram

  • Title

23

Briggs & Stratton 691053

Flywheel
(Superseded to 84004658)

$255.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 691055

Screen-Rotating
(Superseded to 494439)

$53.99

$

In Stock, Qty 10

0

74

Briggs & Stratton 691057

Screw (Rotating Screen)
(Superseded to 698425)

$3.49

$

In Stock, Qty 20+

0

75

Briggs & Stratton 691056

Washer

$9.49

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 230674

Nut-Hex
(Superseded to 691059)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 691060

Armature-Magneto
(Superseded to 592846)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw

$3.49

$

In Stock, Qty 20+

0

363

Toro 691062

Puller-Flywheel

$

$

Currently unavailable

474

Briggs & Stratton 392595

Alternator
(Superseded to 592829)

$102.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 491546

Regulator
(Superseded to 794360)

$64.99

$

In Stock, only 2 left!

0

526

Briggs & Stratton 691129

Screw

$3.99

$

In Stock, Qty 6

0

578

Briggs & Stratton 691208

Wire ASM

$20.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 691215

Spacer

$7.49

$

In Stock, only 1 left!

0

726

Briggs & Stratton 499612

Gear-Ring

$71.99

$

In Stock, Qty 20+

0

789

Briggs & Stratton 691220

Harness-Wiring

$43.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393537

Connector-Wire, Tri Circuit

$

$

Not available

934

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

1005

Briggs & Stratton 691243

Fan-Flywheel
(Superseded to 790692)

$

$

Not available

1006

Briggs & Stratton 691247

Retainer-Fan
(Superseded to 790692)

$

$

Not available

1119

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0
