74590 (190-DH) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) ENGINE ASSEMBLY Parts Diagram

Lawn Tractor

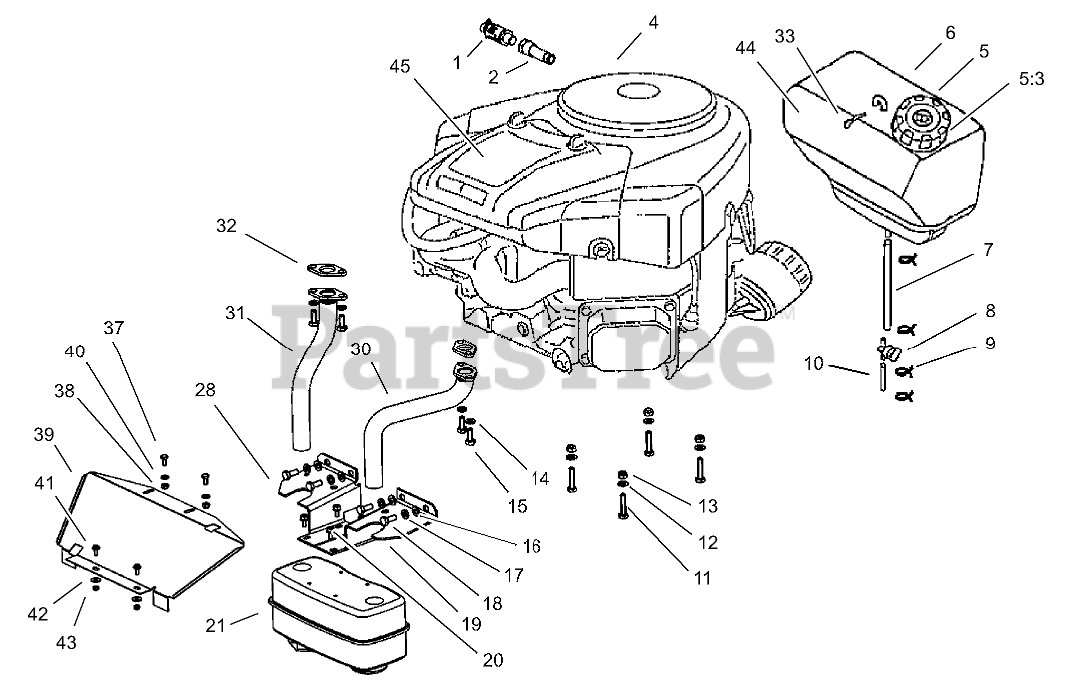

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 104-3208

VALVE-OIL DRAIN

$

$

Currently unavailable

2

Toro 106-5764

Coupler-Oil Drain

$

$

Not available

4

Engine-Briggs And Stratton Model No. 406777-0157-E1

Note: Not serviced separately

$

$

Not available

5

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

5:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

6

Toro 104-3057

TANK-FUEL

$

$

Currently unavailable

7

Toro 106-0890

LINE-FUEL

$

$

Not available

8

Toro 104-3224

VALVE-TANK, FUEL

$

$

Currently unavailable

9

Toro 104-3212

CLAMP-LINE, FUEL

$

$

Currently unavailable

10

Toro 106-0891

LINE-FUEL

$

$

Currently unavailable

11

Toro 33114-035

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

12

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

13

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

14

Toro 104-2927

WASHER-SPRING

$

$

Not available

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

16

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

17

Toro 104-2927

WASHER-SPRING

$

$

Not available

18

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

19

Toro 104-3214

GUARD-MUFFLER, LH

$

$

Currently unavailable

20

$

$

Currently unavailable

21

Toro 104-3225

MUFFLER

$

$

Currently unavailable

28

Toro 104-3215

GUARD-MUFFLER, RH

$

$

Currently unavailable

30

Toro 104-3216

TUBE-EXHAUST, LH

$

$

Currently unavailable

31

Toro 104-3217

TUBE-EXHAUST, RH

$

$

Currently unavailable

32

Toro 104-3226

GASKET-EXHAUST

$10.99

$

In Stock, Qty 10

0

33

Toro 104-3144

PIN-HAIR

$

$

Currently unavailable

37

Toro 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

38

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

39

Toro 104-3219

SHIELD-HEAT

$

$

Currently unavailable

40

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

41

$

$

Currently unavailable

42

Toro 104-2943

WASHER-FLAT

$

$

Currently unavailable

43

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

44

Toro 104-3220

TANK-FUEL W/CAP

$

$

Not available

45

Toro 104-2901

DECAL-ENGINE

$

$

Not available
