74590 (190-DH) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) CYLINDER HEAD ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 406777-0157-E1 Parts Diagram

Lawn Tractor

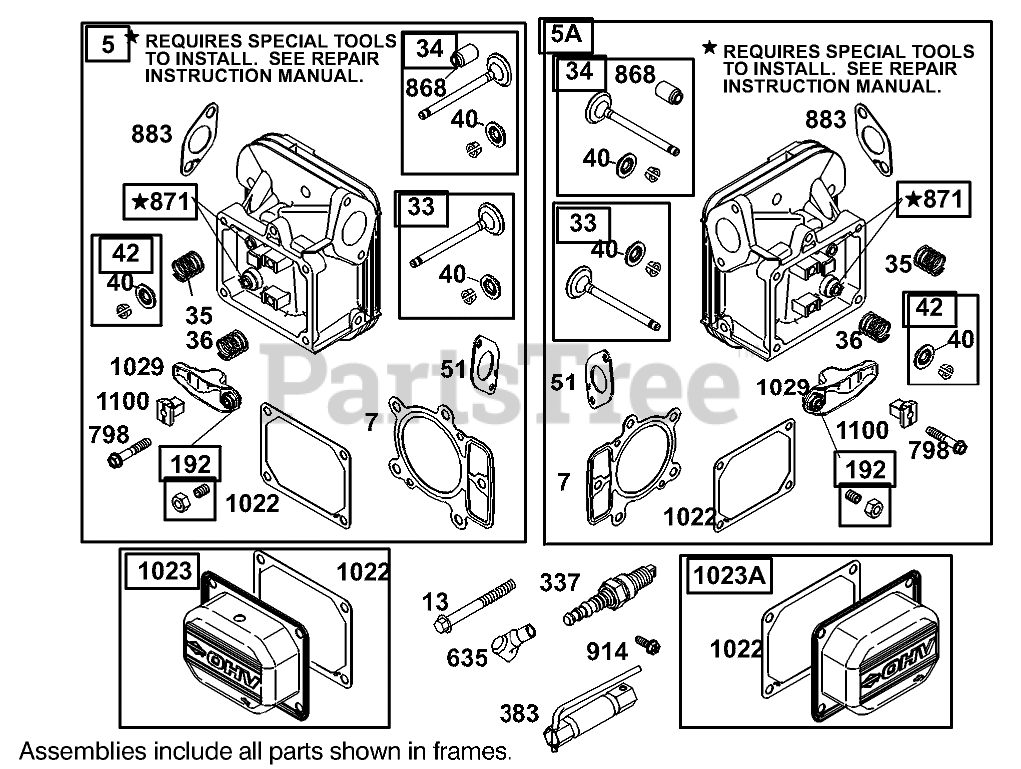

CYLINDER HEAD ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 406777-0157-E1 Parts Diagram

  • Title

5

Briggs & Stratton 499587

Head-Cylinder(Cylinder #1)
(Superseded to 796231)

$235.99

$

In Stock, Qty 20+

0

5A

Briggs & Stratton 499595

Head-Cylinder (Cylinder #2)
(Superseded to 796232)

$202.99

$

In Stock, Qty 13

0

7

Briggs & Stratton 690962

Gasket-Head, Cylinder
(Superseded to 693997)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$24.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 690962

Gasket-Head, Cylinder
(Superseded to 693997)

Note: Included in Gasket Set-Ref. 358.

$24.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 690360

Screw
(Superseded to 84001963)

$3.99

$

In Stock, Qty 20+

0

33

Briggs & Stratton 499596

Valve-Exhaust
(Superseded to 697576)

$43.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 499597

Valve-Intake
(Superseded to 792200)

$25.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 690963

Spring-Valve
(Superseded to 694865)

$5.49

$

In Stock, only 2 left!

0

36

Briggs & Stratton 690963

Spring-Valve
(Superseded to 694865)

$5.49

$

In Stock, only 2 left!

0

40

Briggs & Stratton 263215

Retainer-Valve
(Superseded to 499586)

$7.49

$

In Stock, Qty 20+

0

42

Briggs & Stratton 499586

Keeper-Valve

$7.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Included in Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Included in Carburetor Kit-Ref. 121

$3.49

$

In Stock, Qty 20+

0

192

Briggs & Stratton 690083

Adjuster-Arm, Rocker

$11.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 691043

Spark Plug

$6.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19374

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

798

Briggs & Stratton 690967

Screw (Rocker Arm)
(Superseded to 697890)

$3.49

$

In Stock, Qty 7

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Valve Overhaul Kit-Ref. 1033.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 20+

0

871

Toro 690969

Bushing-Valve Guide

$

$

Currently unavailable

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Included in Gasket Set-Ref. 358.

$4.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Included in Valve Overhaul Kit-Ref. 1033.

$4.99

$

In Stock, Qty 20+

0

914

Briggs & Stratton 690960

Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 273486

Gasket-Rocker Cover
(Superseded to 690971)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 273486

Gasket-Rocker Cover
(Superseded to 690971)

Note: Included in Gasket Set-Ref. 358.

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 499599

Cover-Rocker

$

$

Not available

1023A

Briggs & Stratton 499600

Cover-Arm, Rocker

$15.99

$

In Stock, only 1 left!

0

1029

Briggs & Stratton 690972

Arm-Rocker

$12.99

$

In Stock, Qty 14

0

1100

Briggs & Stratton 690973

Pivot-Arm, Rocker
(Superseded to 791959)

$6.99

$

In Stock, only 4 left!

0
