74590 (190-DH) - Toro Lawn Tractor (SN: 220000001 - 220999999) (2002) CARBURETOR OVERHAUL KIT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 406777-0157-E1 Parts Diagram

Lawn Tractor

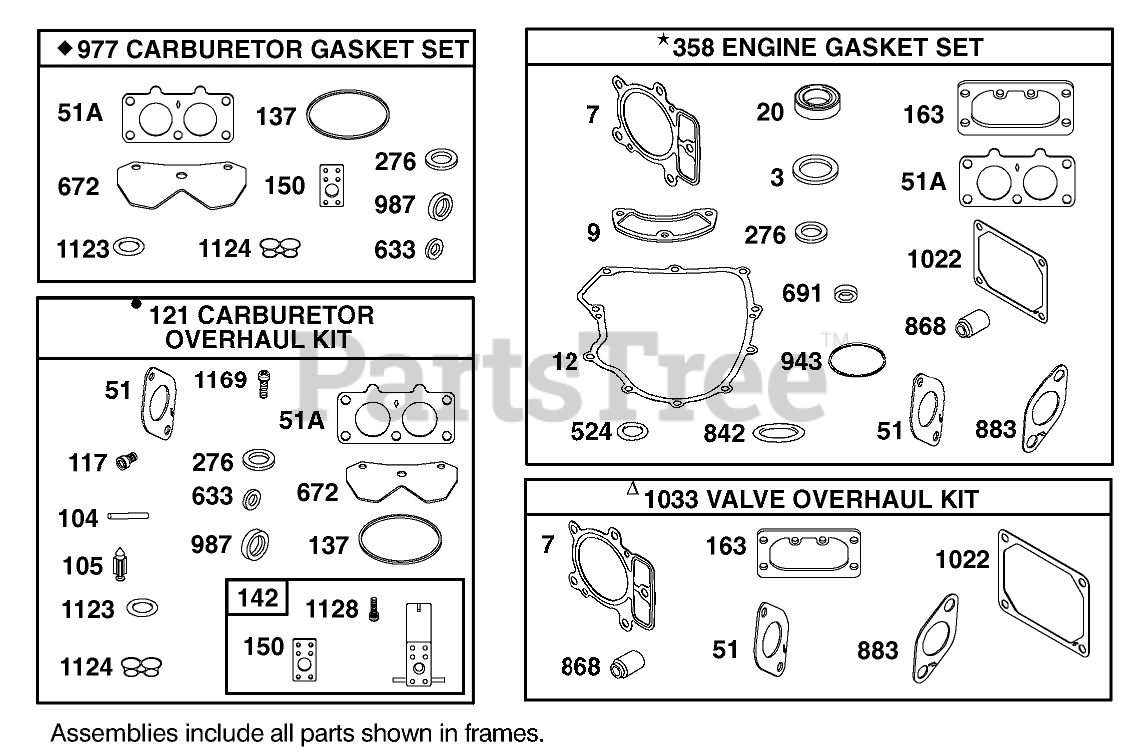

CARBURETOR OVERHAUL KIT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 406777-0157-E1 Parts Diagram

  • Title

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 690962

Gasket-Head, Cylinder
(Superseded to 693997)

Note: Included in Gasket Set-Ref. 358.

$24.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 690962

Gasket-Head, Cylinder
(Superseded to 693997)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$24.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 273370

Gasket-Breather
(Superseded to 690937)

Note: Included in Gasket Set-Ref. 358.

$8.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 273488

Gasket-Crankcase
(Superseded to 594195)

Note: Included in Gasket Set-Ref. 358.

$37.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: Included in Gasket Set-Ref. 358.

$7.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Included in Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Included in Carburetor Kit-Ref. 121

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 690950

Gasket-Intake

Note: Included in Carburetor Kit-Ref. 121

$2.99

$

In Stock, Qty 15

0

51A

Briggs & Stratton 690950

Gasket-Intake

Note: Included in Caburetor Gasket Set-Ref. 977.

$2.99

$

In Stock, Qty 15

0

51A

Briggs & Stratton 690950

Gasket-Intake

Note: Included in Gasket Set-Ref. 358.

$2.99

$

In Stock, Qty 15

0

104

Briggs & Stratton 690984

Guard-Muffler
(Superseded to 694918)

Note: Included in Carburetor Kit-Ref. 121

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 690985

Valve-Float, Needle
(Superseded to 797410)

Note: Included in Carburetor Kit-Ref. 121

$15.99

$

In Stock, Qty 20+

0

117

Briggs & Stratton 690232

Jet-Main

Note: Included in Carburetor Kit-Ref. 121

$24.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 499811

Carburetor Overhaul Kit
(Superseded to 797890)

$95.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 690994

Gasket-Bowl, Float

Note: Included in Caburetor Gasket Set-Ref. 977.

$6.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 690994

Gasket-Bowl, Float

Note: Included in Carburetor Kit-Ref. 121

$6.99

$

In Stock, Qty 20+

0

142

Briggs & Stratton 499808

Nozzle-Carburetor

Note: Included in Carburetor Kit-Ref. 121

$39.99

$

Usually ships in 2-12 days

0

150

Briggs & Stratton 690995

Gasket-Nozzle
(Superseded to 841649)

Note: Included in Carburetor Kit-Ref. 121

$5.99

$

In Stock, only 2 left!

0

150

Briggs & Stratton 690995

Gasket-Nozzle
(Superseded to 841649)

Note: Included in Caburetor Gasket Set-Ref. 977.

$5.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 273640

Gasket-Air Cleaner
(Superseded to 691001)

Note: Included in Carburetor Kit-Ref. 121

$3.49

$

In Stock, Qty 5

0

163

Briggs & Stratton 273640

Gasket-Air Cleaner
(Superseded to 691001)

Note: Included in Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 5

0

276

Briggs & Stratton 690997

Washer-Sealing

Note: Included in Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 6

0

276

Briggs & Stratton 690997

Washer-Sealing

Note: Included in Carburetor Kit-Ref. 121

$7.99

$

In Stock, Qty 6

0

276

Briggs & Stratton 690997

Washer-Sealing

Note: Included in Caburetor Gasket Set-Ref. 977.

$7.99

$

In Stock, Qty 6

0

358

Briggs & Stratton 499889

Engine Gasket Set
(Superseded to 694012)

$113.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 691032

Seal-O Ring

Note: Included in Gasket Set-Ref. 358.

$5.99

$

In Stock, only 1 left!

0

633

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle

Note: Included in Carburetor Kit-Ref. 121

$7.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle

Note: Included in Caburetor Gasket Set-Ref. 977.

$7.99

$

Usually ships in 2-12 days

0

672

Briggs & Stratton 690234

Gasket-Cover Plate, Carburetor

Note: Included in Caburetor Gasket Set-Ref. 977.

$12.99

$

In Stock, Qty 19

0

672

Briggs & Stratton 690234

Gasket-Cover Plate, Carburetor

Note: Included in Carburetor Kit-Ref. 121

$12.99

$

In Stock, Qty 19

0

691

Briggs & Stratton 690657

Seal-Shaft, Governor
(Superseded to 790574)

Note: Included in Gasket Set-Ref. 358.

$5.99

$

In Stock, Qty 20+

0

842

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Valve Overhaul Kit-Ref. 1033.

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Included in Valve Overhaul Kit-Ref. 1033.

$4.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Included in Gasket Set-Ref. 358.

$4.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

Seal-O Ring

Note: Included in Gasket Set-Ref. 358.

$8.99

$

In Stock, Qty 20+

0

977

Briggs & Stratton 499812

Carburetor Gasket Set
(Superseded to 797890)

$95.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

Seal-Shaft, Throttle

Note: Included in Caburetor Gasket Set-Ref. 977.

$6.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

Seal-Shaft, Throttle

Note: Included in Carburetor Kit-Ref. 121

$6.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 273486

Gasket-Rocker Cover
(Superseded to 690971)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 273486

Gasket-Rocker Cover
(Superseded to 690971)

Note: Included in Gasket Set-Ref. 358.

$7.49

$

In Stock, Qty 20+

0

1033

Briggs & Stratton 499890

Valve Overhaul Kit
(Superseded to 694013)

$69.99

$

In Stock, only 1 left!

0

1123

Briggs & Stratton 690987

O-Ring Seal (Solenoid Retainer)

Note: Included in Caburetor Gasket Set-Ref. 977.

$9.49

$

In Stock, only 2 left!

0

1123

Briggs & Stratton 690987

O-Ring Seal (Solenoid Retainer)

Note: Included in Carburetor Kit-Ref. 121

$9.49

$

In Stock, only 2 left!

0

1124

Briggs & Stratton 690988

Seal-O Ring

Note: Included in Caburetor Gasket Set-Ref. 977.

$7.99

$

In Stock, Qty 20+

0

1124

Briggs & Stratton 690988

Seal-O Ring

Note: Included in Carburetor Kit-Ref. 121

$7.99

$

In Stock, Qty 20+

0

1128

Briggs & Stratton 690990

Screw

Note: Included in Carburetor Kit-Ref. 121

$3.99

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

Screw

Note: Included in Carburetor Kit-Ref. 121

$3.99

$

Usually ships in 2-12 days

0
