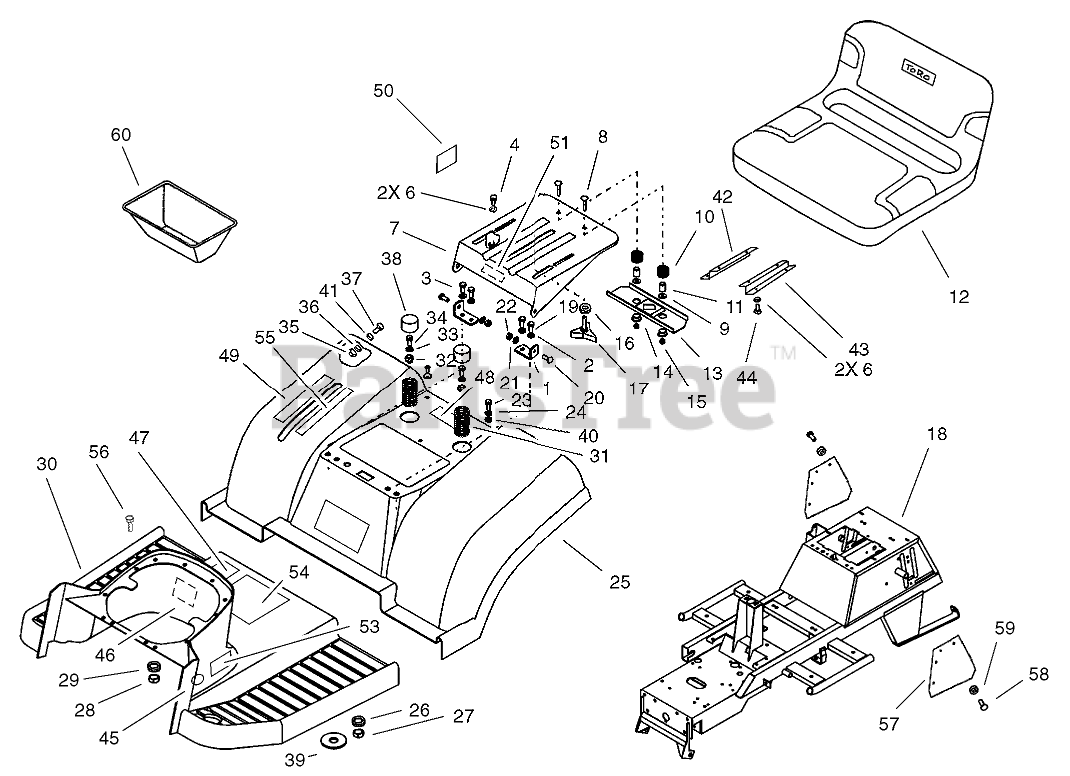

74590 (190-DH) - Toro Lawn Tractor (SN: 220000001 - 220999999) (2002) BODY ASSEMBLY Parts Diagram

Lawn Tractor

BODY ASSEMBLY Parts Diagram

  • Title
1

Toro 104-2926

BRACKET-SUPPORT, SEAT

$

$

Currently unavailable

2

Toro 104-2927

WASHER-SPRING

$

$

Not available

3

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

4

Toro 104-3192

BOLT-HEX

$

$

Not available

6

Toro 104-2927

WASHER-SPRING

$

$

Not available

7

Toro 104-2929

SUPPORT-SEAT

$

$

Currently unavailable

8

Toro 104-2930

BOLT-CARRIAGE

$

$

Currently unavailable

9

Toro 104-2931

WASHER-FLAT

$

$

Currently unavailable

10

Toro 104-2932

SPRING-SEAT

$

$

Currently unavailable

11

Toro 104-2933

SPACER-SPLIT

$

$

Currently unavailable

12

Toro 92-6511

SEAT-V-511

$

$

Not available

13

Toro 104-2934

BRACKET

$

$

Currently unavailable

14

Toro 104-2935

BUSHING

$

$

Currently unavailable

15

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

16

Toro 104-2936

WASHER-SPRING

$

$

Currently unavailable

17

Toro 104-2937

KNOB-ADJUSTMENT

$

$

Currently unavailable

18

Toro 104-2938

FRAME-CHASSIS

$

$

Currently unavailable

19

Toro 33114-030

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

20

Toro 104-2939

SCREW-SUPPORT, SEAT

$

$

Currently unavailable

21

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

22

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

23

Toro 104-2940

SCREW-HSFH

$

$

Currently unavailable

24

Toro 104-2941

WASHER-FINISH

$

$

Not available

25

Toro 106-5752

Fender

$

$

Currently unavailable

26

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

27

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

28

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

29

Toro 104-2943

WASHER-FLAT

$

$

Currently unavailable

30

Toro 104-2944

FOOTREST ASM

$

$

Currently unavailable

31

Toro 104-2945

SPRING-SEAT

$

$

Currently unavailable

32

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

33

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable

34

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

35

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

36

Toro 104-2943

WASHER-FLAT

$

$

Currently unavailable

37

Toro 104-2948

BOLT-CARRIAGE

$

$

Currently unavailable

38

Toro 104-2857

CAP-HUB

$

$

Currently unavailable

39

Toro 104-2949

WASHER-RUBBER

$

$

Currently unavailable

39

Toro 104-2951

WASHER-RUBBER

$

$

Currently unavailable

40

Toro 104-2952

WASHER-RUBBER

$

$

Currently unavailable

41

Toro 104-2952

WASHER-RUBBER

$

$

Currently unavailable

42

Toro 104-2953

BRACKET-RIGHT SEAT

$

$

Not available

43

Toro 104-2954

BRACKET-LEFT SEAT

$

$

Not available

44

Toro 104-3195

Screw
(Superseded to 323-45)

$4.49

$

In Stock, only 1 left!

0

45

Toro 104-3237

DECAL-BRAKE, PARKING

$

$

Currently unavailable

46

Toro 104-3238

DECAL-STARTING

$

$

Not available

47

Toro 104-3241

DECAL-OPERATION, HYDRO

$

$

Currently unavailable

48

Toro 104-3242

DECAL-BAG TO FRAME

$

$

Currently unavailable

49

Toro 104-3240

DECAL-HOC, RH

$

$

Currently unavailable

50

Toro 99-5340

DECAL-SWITCH

$4.99

$

Usually ships in 3-6 days

0

51

Toro 93-7276

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

53

Toro 100-9125

DECAL - TOWER 190DH

$

$

Not available

54

Toro 104-2903

DECAL-INSTRUCTION

$

$

Currently unavailable

55

Toro 104-3239

DECAL-HOC, LH

$

$

Currently unavailable

56

Toro 60-6910

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

57

Toro 106-5753

Cover-Rear

$

$

Currently unavailable

58

$

$

Not available

59

Toro 106-5755

Washer-Flat

$

$

Not available

60

Toro 106-5756

Box-Battery

$

$

Currently unavailable
