74590 (190-DH) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) TRANSMISSION DRIVE ASSEMBLY Parts Diagram

Lawn Tractor

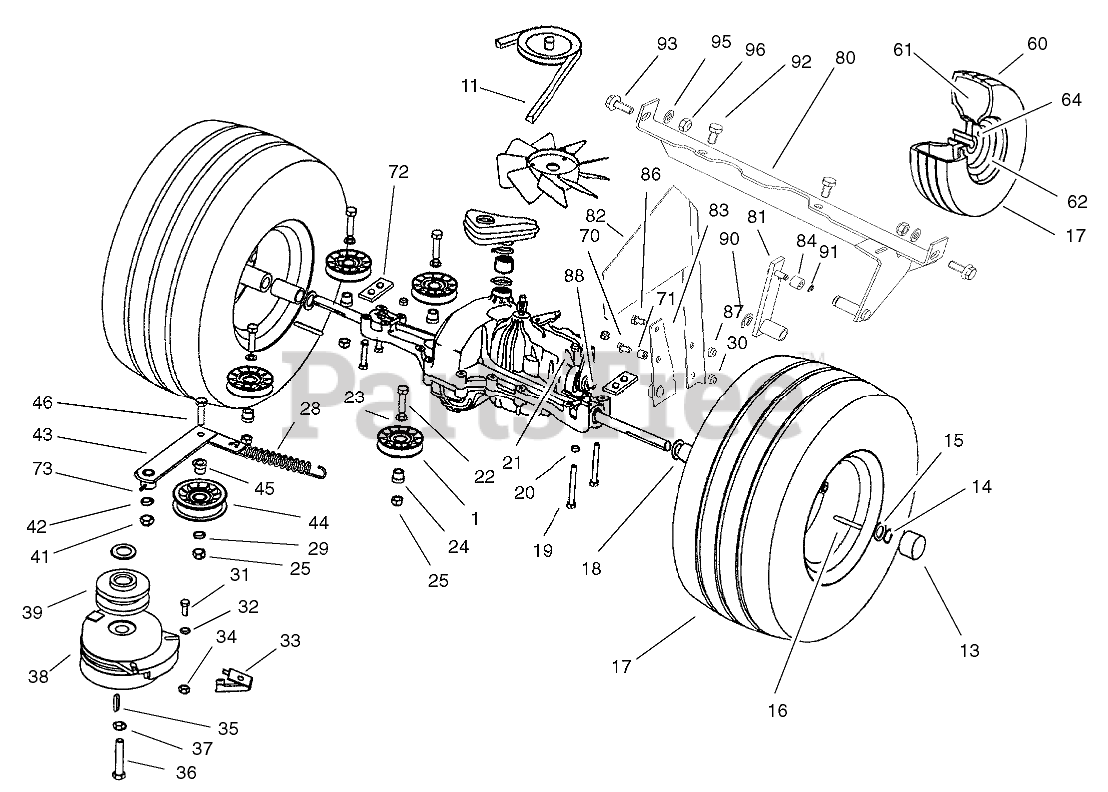

TRANSMISSION DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2887

PULLEY-IDLER

$

$

Currently unavailable

11

Toro 104-2888

V-BELT-TRACTION
(Superseded to 94-2501)

$37.99

$

In Stock, Qty 6

0

12

Toro 104-2889

TRANSMISSION
(Superseded to 114-3155)

$

$

Not available

13

Toro 104-2857

CAP-HUB

$

$

Currently unavailable

14

Toro 104-2891

CLIP-SPRING

$

$

Currently unavailable

15

Toro 104-3206

WASHER

$

$

Currently unavailable

16

Toro 104-2892

KEY-SQUARE

$

$

Currently unavailable

17

Toro 104-2894

REAR TIRE ASM

$

$

Not available

18

Toro 104-2895

SPACER-AXLE

$

$

Currently unavailable

19

Toro 33114-080

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

20

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

21

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

22

Toro 33115-040

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

23

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

24

Toro 104-2896

BUSHING-IDLER

$

$

Currently unavailable

25

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

28

Toro 104-2897

SPRING

$

$

Currently unavailable

29

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

30

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

31

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

32

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

33

Toro 104-2898

RETAINER

$

$

Currently unavailable

34

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

35

Toro 104-2899

KEY-SQUARE

$

$

Currently unavailable

36

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

37

Toro 93-9043

WASHER-SPRING, BELLEVILLE

$0.99

$

Usually ships in 3-6 days

0

38

Toro 104-3334

CLUTCH-ELECTRIC

$474.99

$

In Stock, only 2 left!

0

39

Toro 104-2911

PULLEY-ENGINE

$

$

Currently unavailable

41

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

42

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

43

Toro 104-2912

ARM-IDLER

$

$

Not available

44

Toro 104-2913

PULLEY-IDLER

$

$

Currently unavailable

45

Toro 104-2896

BUSHING-IDLER

$

$

Currently unavailable

46

Toro 33115-040

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

60

Toro 104-2917

TIRE-TURF SAVER 4 PLY

$

$

Not available

61

Toro 104-2918

TUBE

$

$

Not available

62

Toro 104-3196

WHEEL ASM

$

$

Not available

64

Toro 104-2922

NUT-WHEEL

$

$

Not available

70

Toro 33115-045

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

71

Toro 104-2925

SLEEVE

$

$

Currently unavailable

72

Toro 104-3343

Plate-Reinforcing

$

$

Currently unavailable

73

Toro 104-2904

FITTING-GREASE

$

$

Currently unavailable

80

Toro 104-3327

Bar ASM

$

$

Currently unavailable

81

Toro 104-3328

Arm-Switch

$

$

Not available

82

Toro 104-3325

ARM-CONTROL, CRUISE

$

$

Currently unavailable

83

Toro 104-3326

Tenon

$

$

Currently unavailable

84

Toro 104-3329

Roller

$

$

Currently unavailable

86

Toro 33114-010

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

87

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

88

Toro 104-3342

ARM-TRANSAXLE

$

$

Not available

90

Toro 104-3341

Stirrup

$

$

Currently unavailable

91

Toro 104-3014

STIRRUP

$

$

Currently unavailable

92

Toro 104-3344

SCREW-THREAD FORMING

$

$

Currently unavailable

93

Toro 104-3065

SCREW-HEX

$

$

Currently unavailable

95

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

96

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0
