74590 (190-DH) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) CARBURETOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 406777-0157-E1 Parts Diagram

Lawn Tractor

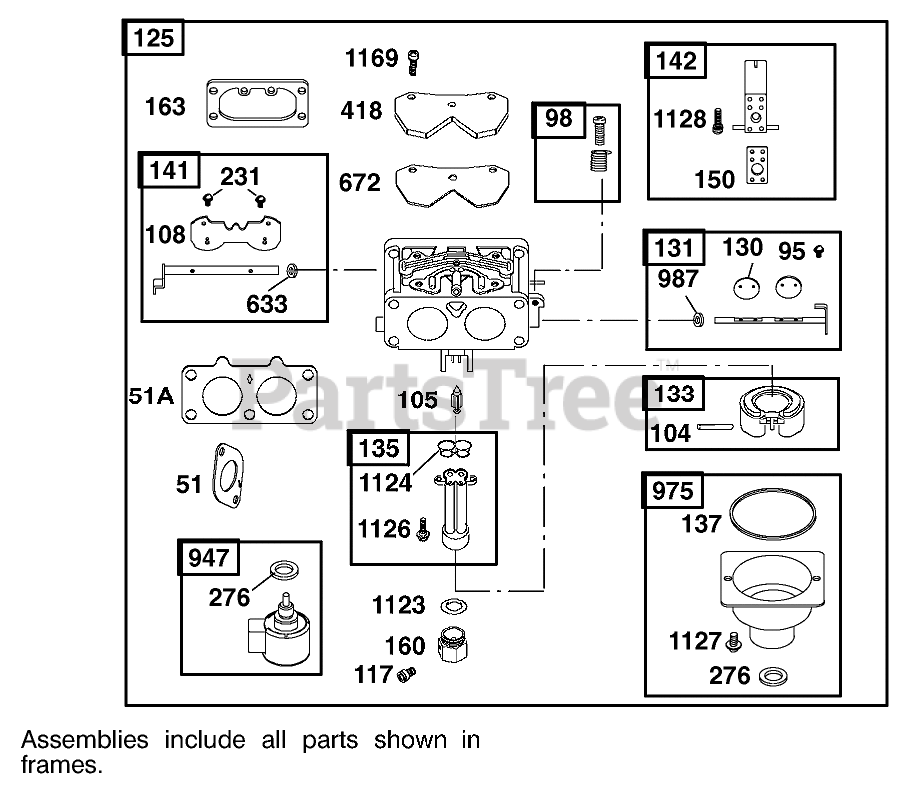

CARBURETOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 406777-0157-E1 Parts Diagram

  • Title

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Included in Carburetor Kit-Ref. 121

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Included in Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 690950

Gasket-Intake

Note: Included in Gasket Set-Ref. 358.

$2.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 690950

Gasket-Intake

Note: Included in Caburetor Gasket Set-Ref. 977.

$2.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 690950

Gasket-Intake

Note: Included in Carburetor Kit-Ref. 121

$2.99

$

In Stock, Qty 20+

0

95

Briggs & Stratton 690718

Screw

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 499802

Idle Speed Kit

$8.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690984

Guard-Muffler
(Superseded to 694918)

Note: Included in Carburetor Kit-Ref. 121

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 690985

Valve-Float, Needle
(Superseded to 797410)

Note: Included in Carburetor Kit-Ref. 121

$15.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 690986

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 690232

Jet-Main

Note: Included in Carburetor Kit-Ref. 121

$24.99

$

In Stock, only 2 left!

0

Briggs & Stratton 690989

Jet-Main(High Altitude)

$24.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 499804

Carburetor
(Superseded to 791230)

$205.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 690993

Valve-Throttle

$8.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 499805

Throttle Shaft Kit

$53.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 499806

Float-Carburetor
(Superseded to 699724)

$31.99

$

In Stock, only 2 left!

0

135

Briggs & Stratton 499803

Tube-Fuel Transfer

$15.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 690994

Gasket-Bowl, Float

Note: Included in Carburetor Kit-Ref. 121

$6.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 690994

Gasket-Bowl, Float

Note: Included in Caburetor Gasket Set-Ref. 977.

$6.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 499807

Kit-Choke Shaft

$47.99

$

Usually ships in 2-12 days

0

142

Toro D499808

Nozzle-Carburetor

$

$

Currently unavailable

150

Briggs & Stratton 690995

Gasket-Nozzle
(Superseded to 841649)

Note: Included in Caburetor Gasket Set-Ref. 977.

$5.99

$

Usually ships in 2-12 days

0

150

Briggs & Stratton 690995

Gasket-Nozzle
(Superseded to 841649)

Note: Included in Carburetor Kit-Ref. 121

$5.99

$

Usually ships in 2-12 days

0

160

Briggs & Stratton 690996

Retainer-Solenoid

$29.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 273640

Gasket-Air Cleaner
(Superseded to 691001)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$3.49

$

In Stock, Qty 12

0

163

Briggs & Stratton 273640

Gasket-Air Cleaner
(Superseded to 691001)

Note: Included in Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 12

0

231

Briggs & Stratton 690718

Screw

$5.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 690997

Washer-Sealing

Note: Included in Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 6

0

276

Briggs & Stratton 690997

Washer-Sealing

Note: Included in Caburetor Gasket Set-Ref. 977.

$7.99

$

In Stock, Qty 6

0

276

Briggs & Stratton 690997

Washer-Sealing

Note: Included in Carburetor Kit-Ref. 121

$7.99

$

In Stock, Qty 6

0

418

Briggs & Stratton 690999

Plate-Cover, Carburetor
(Superseded to 795912)

$14.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle

Note: Included in Carburetor Kit-Ref. 121

$7.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle

Note: Included in Caburetor Gasket Set-Ref. 977.

$7.99

$

Usually ships in 2-12 days

0

672

Briggs & Stratton 690234

Gasket-Cover Plate, Carburetor

Note: Included in Caburetor Gasket Set-Ref. 977.

$12.99

$

In Stock, Qty 20+

0

672

Briggs & Stratton 690234

Gasket-Cover Plate, Carburetor

Note: Included in Carburetor Kit-Ref. 121

$12.99

$

In Stock, Qty 20+

0

947

Briggs & Stratton 499809

Solenoid-Fuel
(Superseded to 791230)

$205.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 499810

Bowl-Float

$29.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

Seal-Shaft, Throttle

Note: Included in Carburetor Kit-Ref. 121

$6.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

Seal-Shaft, Throttle

Note: Included in Caburetor Gasket Set-Ref. 977.

$6.99

$

Usually ships in 2-12 days

0

1123

Briggs & Stratton 690987

O-Ring Seal (Solenoid Retainer)

Note: Included in Caburetor Gasket Set-Ref. 977.

$9.49

$

In Stock, only 2 left!

0

1123

Briggs & Stratton 690987

O-Ring Seal (Solenoid Retainer)

Note: Included in Carburetor Kit-Ref. 121

$9.49

$

In Stock, only 2 left!

0

1124

Briggs & Stratton 690988

Seal-O Ring

Note: Included in Carburetor Kit-Ref. 121

$7.99

$

In Stock, Qty 20+

0

1124

Briggs & Stratton 690988

Seal-O Ring

Note: Included in Caburetor Gasket Set-Ref. 977.

$7.99

$

In Stock, Qty 20+

0

1126

Briggs & Stratton 690991

Screw

$3.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 690992

Screw (Float Bowl)

$4.99

$

Usually ships in 2-12 days

0

1128

Briggs & Stratton 690990

Screw

Note: Included in Carburetor Kit-Ref. 121

$3.99

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

Screw

Note: Included in Carburetor Kit-Ref. 121

$3.99

$

Usually ships in 2-12 days

0
