74590 (190-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) TRANSMISSION DRIVE ASSEMBLY Parts Diagram

Lawn Tractor

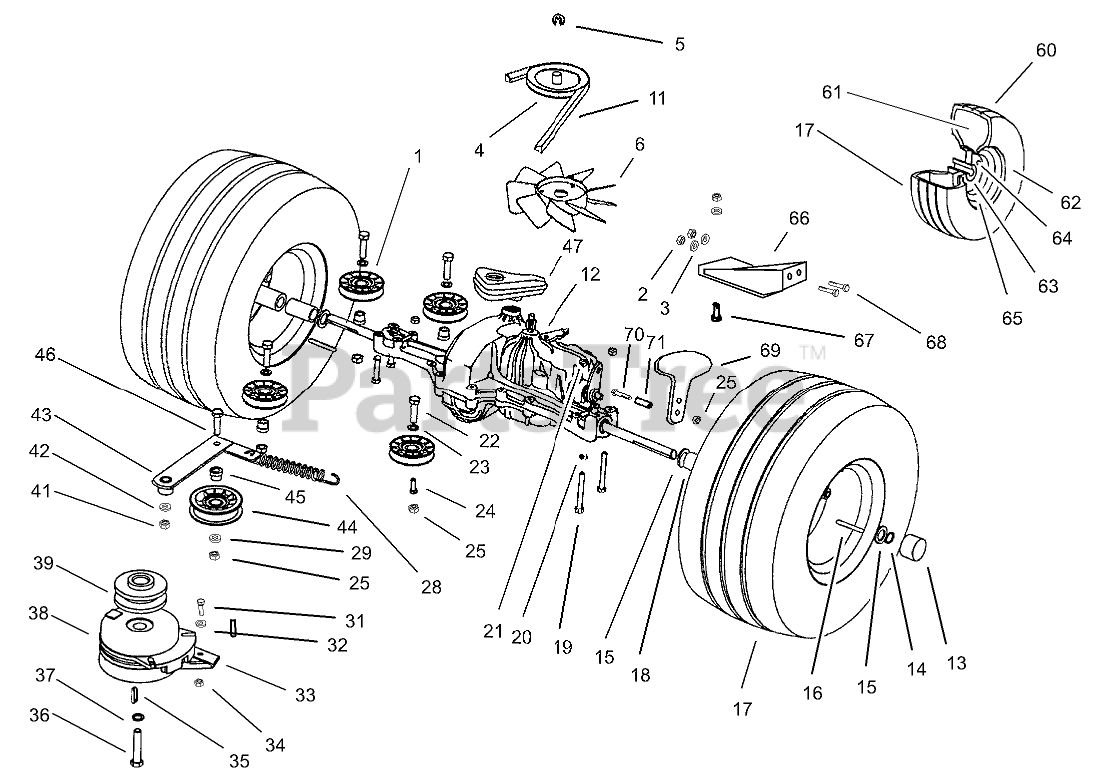

TRANSMISSION DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2887

PULLEY-IDLER

$

$

Currently unavailable

2

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

3

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

4

Toro 104-3197

PULLEY-TRANSMISSION

$

$

Currently unavailable

5

Toro 104-3198

E-RING

$

$

Currently unavailable

6

Toro 104-3199

FAN-TRANSMISSION

$

$

Currently unavailable

11

Toro 104-2888

V-BELT-TRACTION
(Superseded to 94-2501)

$37.99

$

In Stock, Qty 6

0

12

Toro 104-2889

TRANSMISSION
(Superseded to 114-3155)

$

$

Not available

13

Toro 104-2857

CAP-HUB

$

$

Currently unavailable

14

Toro 104-2891

CLIP-SPRING

$

$

Currently unavailable

15

Toro 104-3206

WASHER

$

$

Currently unavailable

16

Toro 104-2892

KEY-SQUARE

$

$

Currently unavailable

17

Toro 104-2894

REAR TIRE ASM

$

$

Not available

18

Toro 104-2895

SPACER-AXLE

$

$

Currently unavailable

19

Toro 60-6690

CAPSCREW

$0.99

$

Usually ships in 3-6 days

0

20

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

21

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

22

Toro 33115-040

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

23

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

24

Toro 104-2896

BUSHING-IDLER

$

$

Currently unavailable

25

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

28

Toro 104-2897

SPRING

$

$

Currently unavailable

29

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

31

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

32

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

33

Toro 104-2898

RETAINER

$

$

Currently unavailable

34

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

35

Toro 104-2899

KEY-SQUARE

$

$

Currently unavailable

36

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

37

Toro 93-9043

WASHER-SPRING, BELLEVILLE

$0.99

$

Usually ships in 3-6 days

0

38

Toro 104-3334

CLUTCH-ELECTRIC

$474.99

$

In Stock, only 2 left!

0

39

Toro 104-2911

PULLEY-ENGINE

$

$

Currently unavailable

41

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

42

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

43

Toro 104-2912

ARM-IDLER

$

$

Not available

44

Toro 104-2913

PULLEY-IDLER

$

$

Currently unavailable

45

Toro 104-2896

BUSHING-IDLER

$

$

Currently unavailable

46

Toro 33115-040

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

47

Toro 104-2914

RESERVOIR TANK ASM WITH CAP

$

$

Currently unavailable

60

Toro 104-2917

TIRE-TURF SAVER 4 PLY

$

$

Not available

61

Toro 104-2918

TUBE

$

$

Not available

62

Toro 104-2915

RIM

$165.99

$

Usually ships in 3-6 days

0

62

Toro 104-3196

WHEEL ASM

$

$

Not available

63

Toro 104-2921

HUB-WHEEL

$

$

Not available

64

Toro 104-2922

NUT-WHEEL

$

$

Not available

65

Toro 104-2875

VALVE-TYRE
(Superseded to 106-8596)

$

$

Not available

66

Toro 104-2923

STABILIZER-20" WHEELS

$

$

Not available

67

Toro 98-5827

SCREW-HEX HD

$

$

Not available

68

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

69

Toro 104-2924

ARM-CRUISE CONTROL

$

$

Not available

70

Toro 33115-045

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

71

Toro 104-2925

SLEEVE

$

$

Currently unavailable
