74590 (190-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor

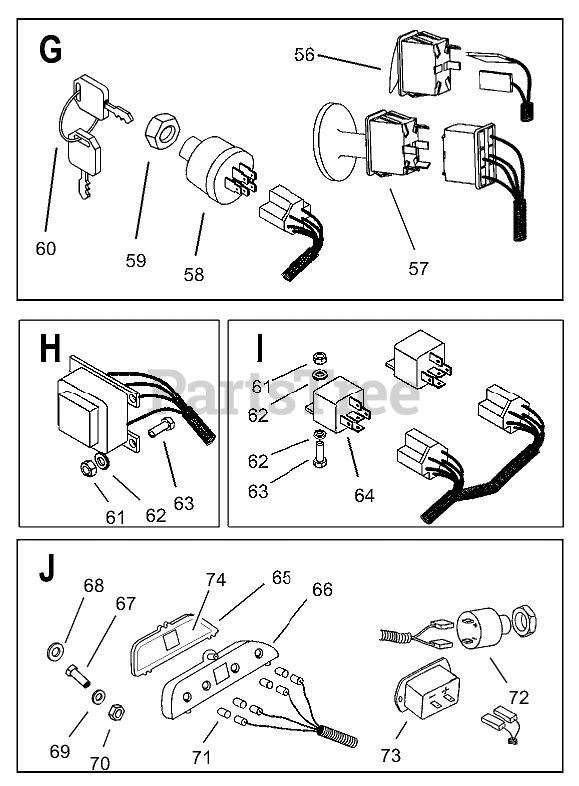

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

45

Toro 46-5780

STARTER SWITCH ASM

Note: Not illustrated

$29.99

$

In Stock, only 1 left!

0

56

Toro 93-0527

SWITCH-CRUISE

$139.99

$

Usually ships in 3-6 days

0

57

Toro 93-9998

SWITCH-PTO

$45.99

$

In Stock, only 1 left!

0

58

Toro 92-6785

SWITCH-IGNITION

$86.99

$

In Stock, only 1 left!

0

59

Toro 104-3172

NUT-HEX
(Superseded to 218-461)

$3.99

$

In Stock, Qty 9

0

60

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

61

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

62

Toro 104-2943

WASHER-FLAT

$

$

Currently unavailable

63

Toro 104-2978

SCREW-HEX

$

$

Currently unavailable

64

Toro 104-3173

RELAY

$

$

Currently unavailable

65

Toro 92-6705

LENS-DASH

$

$

Not available

66

Toro 92-6732

HOUSING-LIGHT, INDICATOR

$29.99

$

Usually ships in 3-6 days

0

67

Toro 104-3191

SCREW

$

$

Currently unavailable

68

Toro 104-3174

CAP-SCREW

$

$

Currently unavailable

69

Toro 104-3175

WASHER

$

$

Currently unavailable

70

Toro 104-2985

NUT-HEX

$

$

Currently unavailable

71

Toro 104-3176

BULB

$

$

Currently unavailable

72

Toro 104-3177

BUZZER
(Superseded to 119-5511)

$

$

Not available

73

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

74

Toro 104-2854

DECAL-DASH

$

$

Currently unavailable
