74590 (190-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor

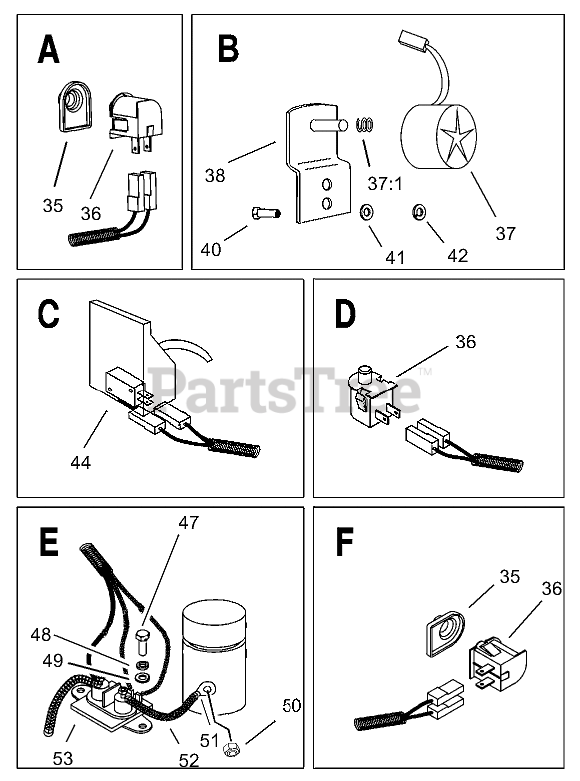

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

35

Toro 104-3178

COVER-PROTECTIVE

$

$

Not available

36

Toro 104-3179

SWITCH-DELTA
(Superseded to 82-2190)

$14.99

$

In Stock, Qty 11

0

36

Toro 104-3180

SWITCH-DELTA

$

$

Currently unavailable

37

Toro 99-8090

MAGNET ASM

$301.99

$

Usually ships in 3-6 days

0

37:1

Toro 93-6601

SPRING-COMPRESSION

$2.49

$

Usually ships in 3-6 days

0

38

Toro 104-3181

BRACKET-CRUISE

$

$

Currently unavailable

40

Toro 104-3182

SCREW

$

$

Not available

41

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable

42

Toro 104-2927

WASHER-SPRING

$

$

Not available

44

Toro 104-3185

SWITCH-OMRON

$

$

Not available

45

Toro 46-5780

STARTER SWITCH ASM

Note: Not illustrated

$29.99

$

In Stock, only 1 left!

0

47

Toro 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

48

Toro 104-3186

WASHER-SPRING

$

$

Currently unavailable

49

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

50

Toro 32128-32

NUT-HHF

$2.99

$

Usually ships in 3-6 days

0

51

Toro 104-3187

BOOT-RUBBER

$

$

Currently unavailable

52

Toro 104-3188

LEAD-STARTER, ELECTRIC

$

$

Not available

53

Toro 104-3189

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, Qty 6

0
