74585 (DH 210) - Toro Lawn Tractor (SN: 317000001 - 317999999) (2017) TRANSMISSION DRIVE ASSEMBLY Parts Diagram

Lawn Tractor

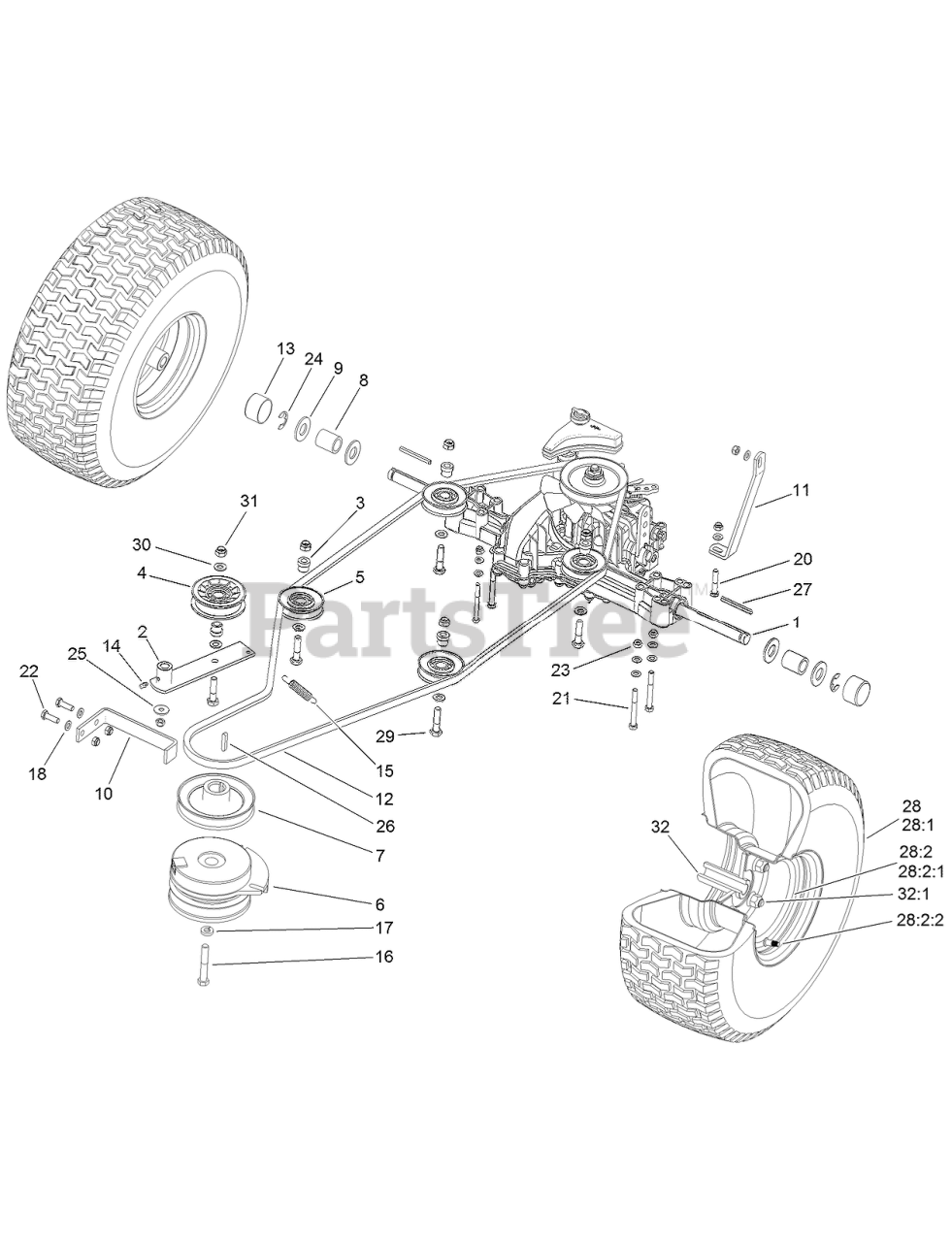

TRANSMISSION DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 114-3155

TRANSMISSION

$

$

Not available

2

Toro 125-2239

ARM-IDLER

$

$

Currently unavailable

3

Toro 104-2896

BUSHING-IDLER

$

$

Currently unavailable

4

Toro 104-2913

PULLEY-IDLER

$

$

Currently unavailable

5

Toro 104-2887

PULLEY-IDLER

$

$

Currently unavailable

6

Toro 119-5501

CLUTCH-ELECTRIC
(Superseded to 104-3334)

$474.99

$

In Stock, only 2 left!

0

7

Toro 104-2911

PULLEY-ENGINE

$

$

Currently unavailable

8

Toro 104-2895

SPACER-AXLE

$

$

Currently unavailable

9

Toro 120-8739

WASHER

$

$

Currently unavailable

10

Toro 125-2240

RETAINER

$

$

Currently unavailable

11

Toro 125-2241

STABILIZER

$

$

Currently unavailable

12

Toro 111-9294

BELT-TRANSMISSION, HEAVY DUTY

$

$

Currently unavailable

13

Toro 104-2857

CAP-HUB

$

$

Currently unavailable

14

Toro 104-2904

FITTING-GREASE

$

$

Currently unavailable

15

Toro 104-2897

SPRING

$

$

Currently unavailable

16

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, Qty 11

0

17

Toro 93-9043

WASHER-SPRING, BELLEVILLE

$0.99

$

Usually ships in 3-6 days

0

18

Toro 106-4756

WASHER-PLAIN

$

$

Currently unavailable

20

Toro 33114-040

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

21

$

$

Currently unavailable

22

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

23

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

24

Toro 104-2891

CLIP-SPRING

$

$

Currently unavailable

25

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable

26

Toro 104-2899

KEY-SQUARE

$

$

Currently unavailable

27

Toro 104-2892

KEY-SQUARE

$

$

Currently unavailable

28

Toro 107-8929

TIRE AND WHEEL ASM

$

$

Currently unavailable

28:1

$170.99

$

Usually ships in 3-6 days

0

28:2

Toro 107-8932

WHEEL ASM

$

$

Currently unavailable

28:2:1

RIM

Note: Not serviced separately

$

$

Not available

28:2:2

Toro 106-8596

Valve-Tire

$

$

Not available

29

Toro 33115-040

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

30

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

31

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

32

Toro 108-8718

HUB-WHEEL

$

$

Currently unavailable

32:1

Toro 108-8717

NUT-LUG

$

$

Currently unavailable
