74585 (DH 210) - Toro Lawn Tractor (SN: 315000001 - 315999999) (2015) PUMP SHAFT ASSEMBLY TRANSMISSION ASSEMBLY NO. 114-3155 Parts Diagram

Lawn Tractor

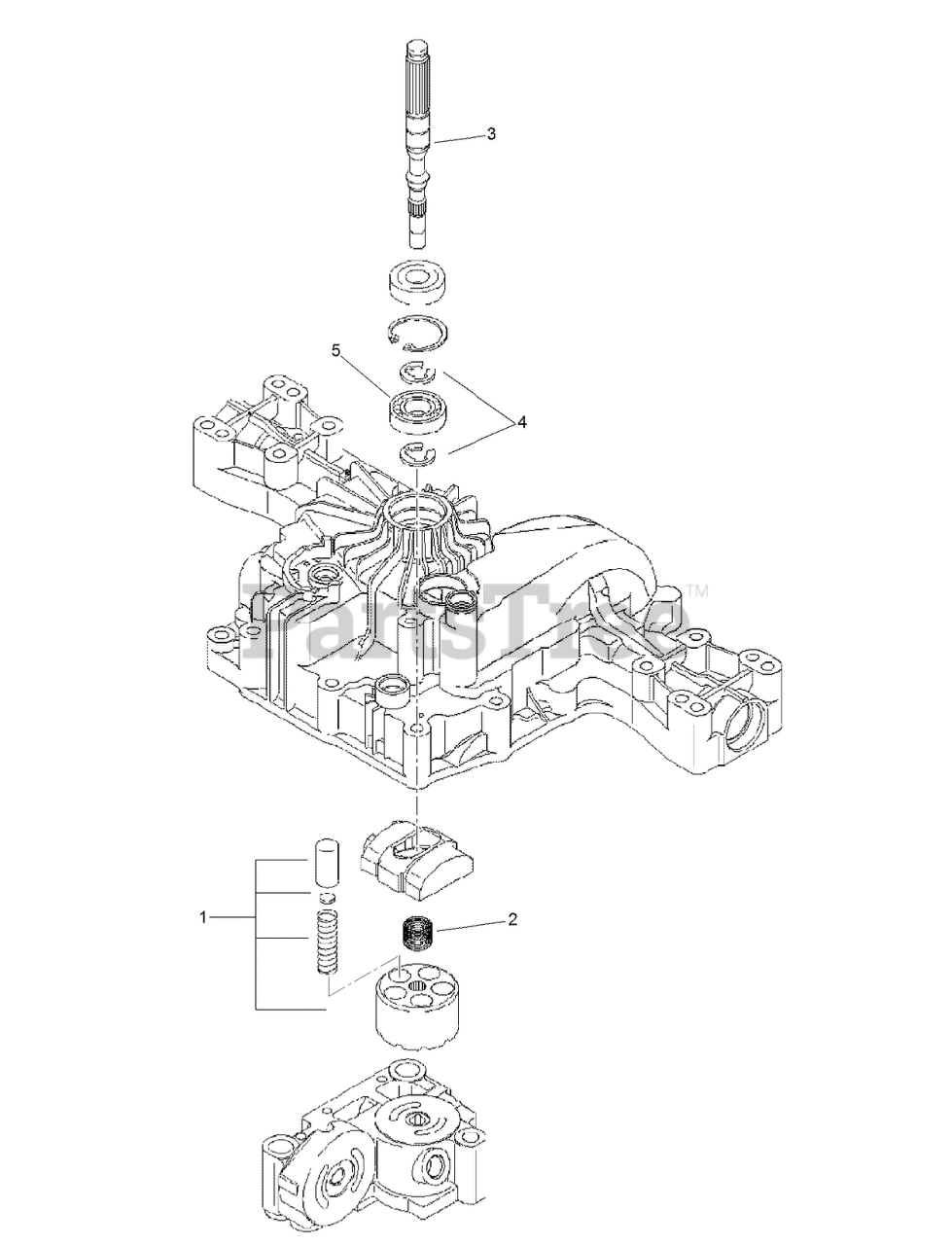

PUMP SHAFT ASSEMBLY TRANSMISSION ASSEMBLY NO. 114-3155 Parts Diagram

  • Title
1

Toro 104-3276

Block-Cylinder

$517.99

$

Usually ships in 3-6 days

0

2

Toro 104-3277

Spring-Pump

$9.49

$

Usually ships in 3-6 days

0

3

Toro 104-3278

Shaft-Pump

$193.99

$

Usually ships in 3-6 days

0

4

Toro 93-0387

E-RING
(Superseded to 92-0761)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 93-0374

BEARING-BALL

$58.99

$

Usually ships in 3-6 days

0
