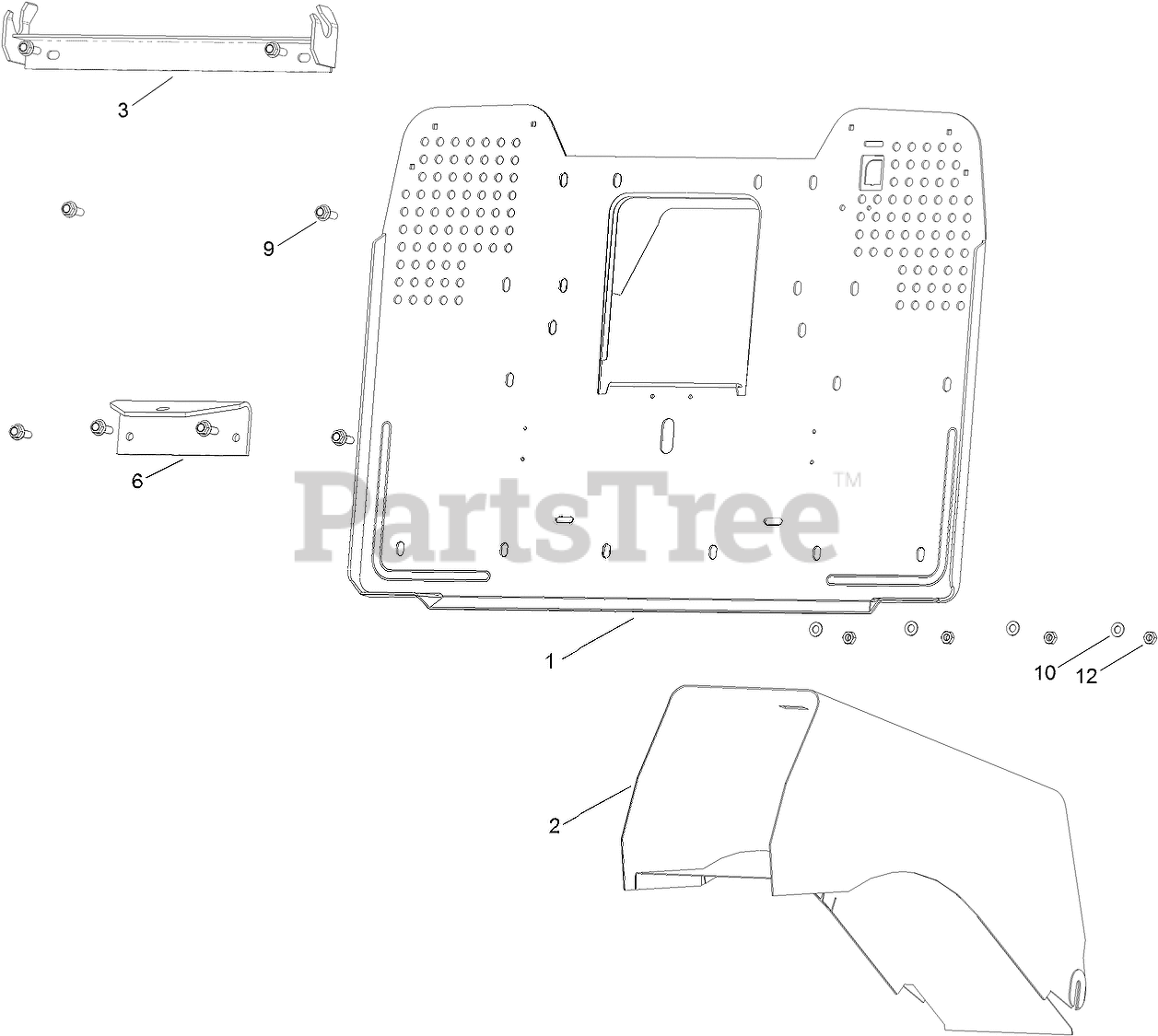

74585 (DH 210) - Toro Lawn Tractor (SN: 314000001 - 314999999) (2014) TUNNEL AND COLLECTOR PLATE ASSEMBLY Parts Diagram

Lawn Tractor

TUNNEL AND COLLECTOR PLATE ASSEMBLY Parts Diagram

  • Title
1

Toro 125-2336

COLLECTOR PLATE ASM

$

$

Currently unavailable

2

Toro 120-8767

TUNNEL

$

$

Not available

3

Toro 125-2337

SUPPORT-COLLECTOR

$

$

Currently unavailable

6

Toro 119-5516

HITCH-TOW

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

12

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0
