74585 (DH 210) - Toro Lawn Tractor (SN: 314000001 - 314999999) (2014) MOWER LIFT ASSEMBLY Parts Diagram

Lawn Tractor

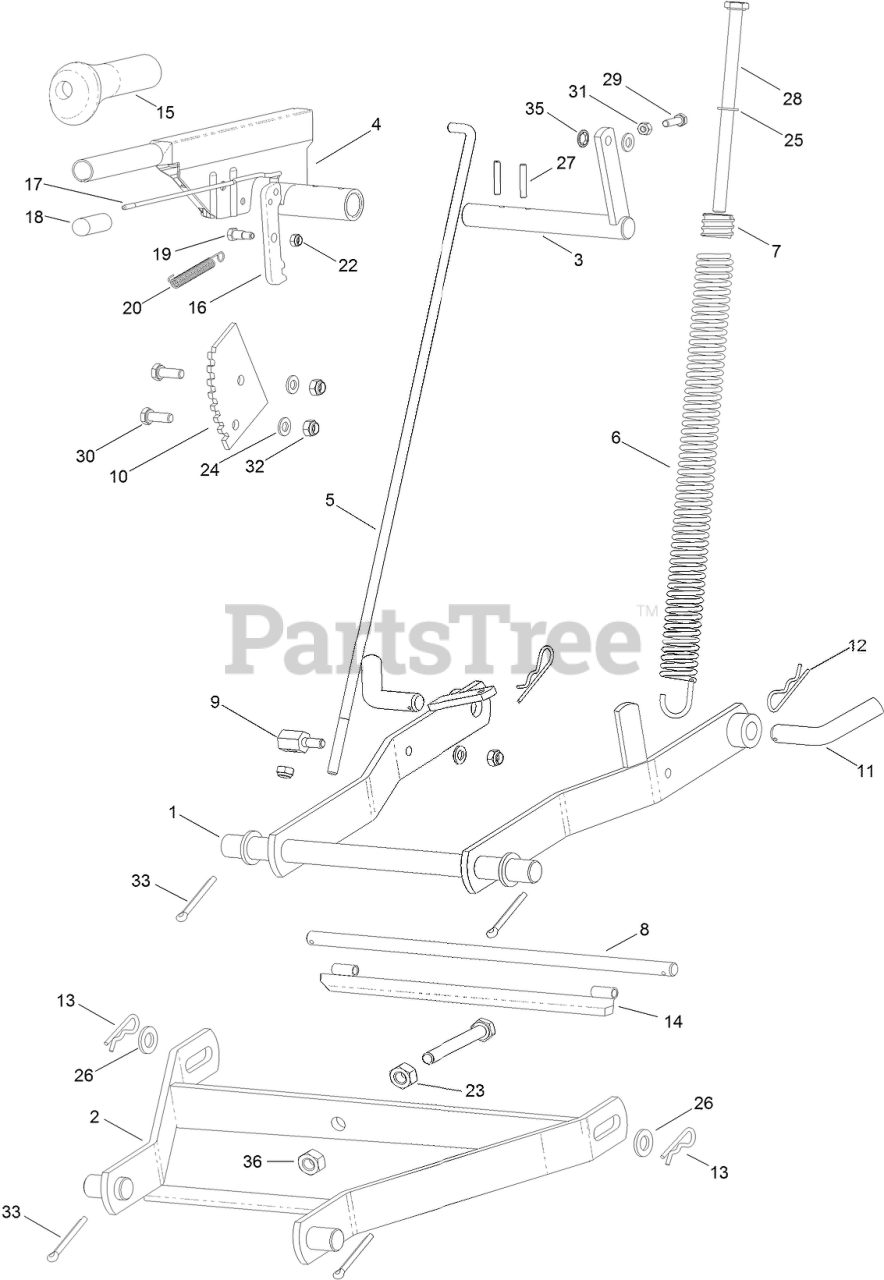

MOWER LIFT ASSEMBLY Parts Diagram

  • Title
1

Toro 111-6846

SUSPENSION-DECK, MOWER

$

$

Currently unavailable

2

Toro 111-6847

SUSPENSION-MOWER DECK, FRONT

$

$

Currently unavailable

3

Toro 125-2251

SHAFT-ADJUSTMENT, HEIGHT

$

$

Currently unavailable

4

Toro 125-2249

LEVER-ARM, HEIGHT ADJUST

$

$

Currently unavailable

5

Toro 125-2252

ROD-ADJUSTMENT, HEIGHT

$

$

Currently unavailable

6

Toro 125-2254

SPRING

$

$

Currently unavailable

7

Toro 125-2255

NUT-SPRING

$

$

Currently unavailable

8

$32.99

$

Usually ships in 3-6 days

0

9

Toro 119-5407

TRUNNION

$

$

Currently unavailable

10

Toro 104-3133

SEGMENT-GEAR

$

$

Currently unavailable

11

Toro 120-8757

PIN-BENT

$

$

Currently unavailable

12

Toro 104-3144

PIN-HAIR

$

$

Currently unavailable

13

Toro 104-3148

PIN-HAIR

$

$

Currently unavailable

14

Toro 111-6848

HOLDER-FRONT

$

$

Currently unavailable

15

Toro 104-3129

GRIP-HANDLE

$

$

Currently unavailable

16

Toro 104-3130

RATCHET-PLATE, PIVOT

$

$

Currently unavailable

17

Toro 104-3132

ROD-CONNECTION

$

$

Currently unavailable

18

Toro 104-3131

BUTTON-PLUNGER

$

$

Currently unavailable

19

Toro 125-2250

SCREW-LEVER

$

$

Currently unavailable

20

Toro 104-3134

SPRING

$

$

Currently unavailable

22

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

23

Toro 33016-00

NUT-HEX

$1.99

$

Usually ships in 3-6 days

0

24

Toro 106-4756

WASHER-PLAIN

$

$

Currently unavailable

25

Toro 108-8709

WASHER-FLAT

$

$

Currently unavailable

26

Toro 104-3124

WASHER-FLAT

$

$

Currently unavailable

27

Toro 104-2994

PIN-SPRING

$

$

Currently unavailable

28

Toro 125-2253

SCREW M10X180

$

$

Currently unavailable

29

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

30

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

31

Toro 104-2991

NUT-HEX

$

$

Currently unavailable

32

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

33

Toro 125-2256

PIN-COTTER

$

$

Currently unavailable

35

Toro 121-0963

WASHER

$

$

Currently unavailable

36

Toro 48-9540

NUT-LOCK, HEX NI

$0.99

$

Usually ships in 3-6 days

0
