74585 (DH 210) - Toro Lawn Tractor (SN: 313000001 - 313999999) (2013) GRASS COLLECTOR ASSEMBLY NO. 125-2325 Parts Diagram

Lawn Tractor

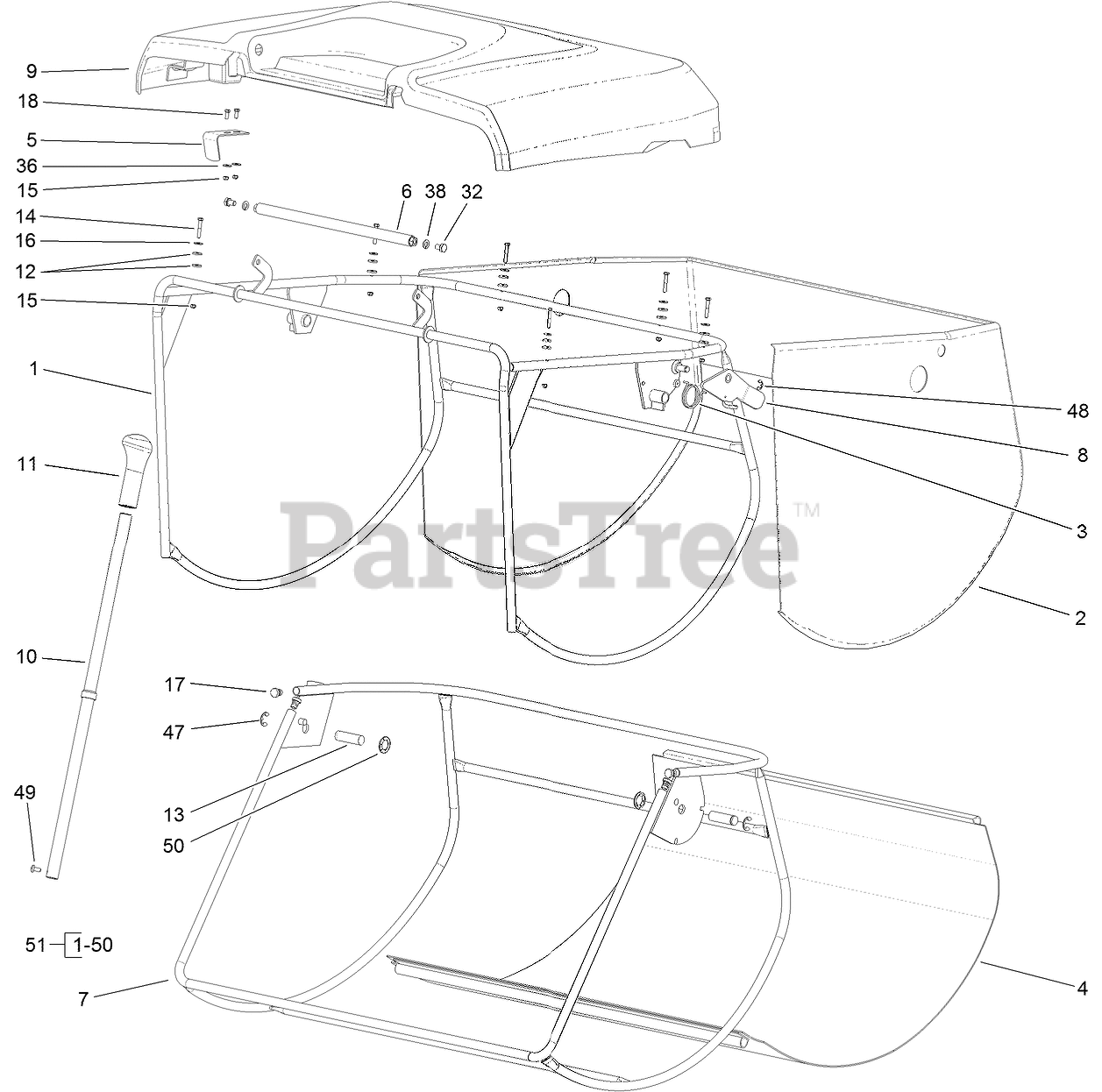

GRASS COLLECTOR ASSEMBLY NO. 125-2325 Parts Diagram

  • Title
1

Toro 125-2326

FRAME ASM

$

$

Currently unavailable

2

Toro 125-2328

BAG-GRASS, UPPER

$

$

Currently unavailable

3

Toro 125-2331

SPRING

$

$

Currently unavailable

4

Toro 125-2332

BAG-GRASS, LOWER

$

$

Currently unavailable

5

Toro 125-2334

SPRING-COIL, INTERLOCK SWITCH

$

$

Currently unavailable

6

Toro 125-2327

HANDLE-LIFT

$

$

Currently unavailable

7

Toro 125-2329

LOWER FRAME ASM

$

$

Currently unavailable

8

Toro 125-2330

LEVER-ARRESTMENT

$

$

Currently unavailable

9

Toro 125-2333

COVER-COLLECTOR

$

$

Currently unavailable

10

Toro 125-2335

LEVER-DUMP

$59.99

$

Usually ships in 3-6 days

0

11

Toro 120-8737

HANDLE-MULCHING

$

$

Currently unavailable

12

Toro 104-2943

WASHER-FLAT

$

$

Currently unavailable

13

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

16

Toro 104-2952

WASHER-RUBBER

$

$

Currently unavailable

17

$

$

Not available

18

$

$

Currently unavailable

32

Toro 68-9410

SCREW-HHF

$9.49

$

Usually ships in 3-6 days

0

36

Toro 52-6430

WASHER

$0.99

$

In Stock, Qty 5

0

38

Toro 104-2927

WASHER-SPRING

$

$

Not available

47

Toro 104-3015

E-CLIP

$

$

Currently unavailable

48

Toro 106-8592

RING-LOCKING

$

$

Currently unavailable

49

$

$

Currently unavailable

50

Toro 119-5478

RING-LOCK

$

$

Currently unavailable

51

Toro 125-2325

GRASS COLLECTOR ASM

$

$

Not available
