74583 - Toro 60" GrandStand Stand-On Mower (SN: 312000001 - 312999999) (2012) DECK ASSEMBLY Parts Diagram

60" GrandStand Stand-On Mower

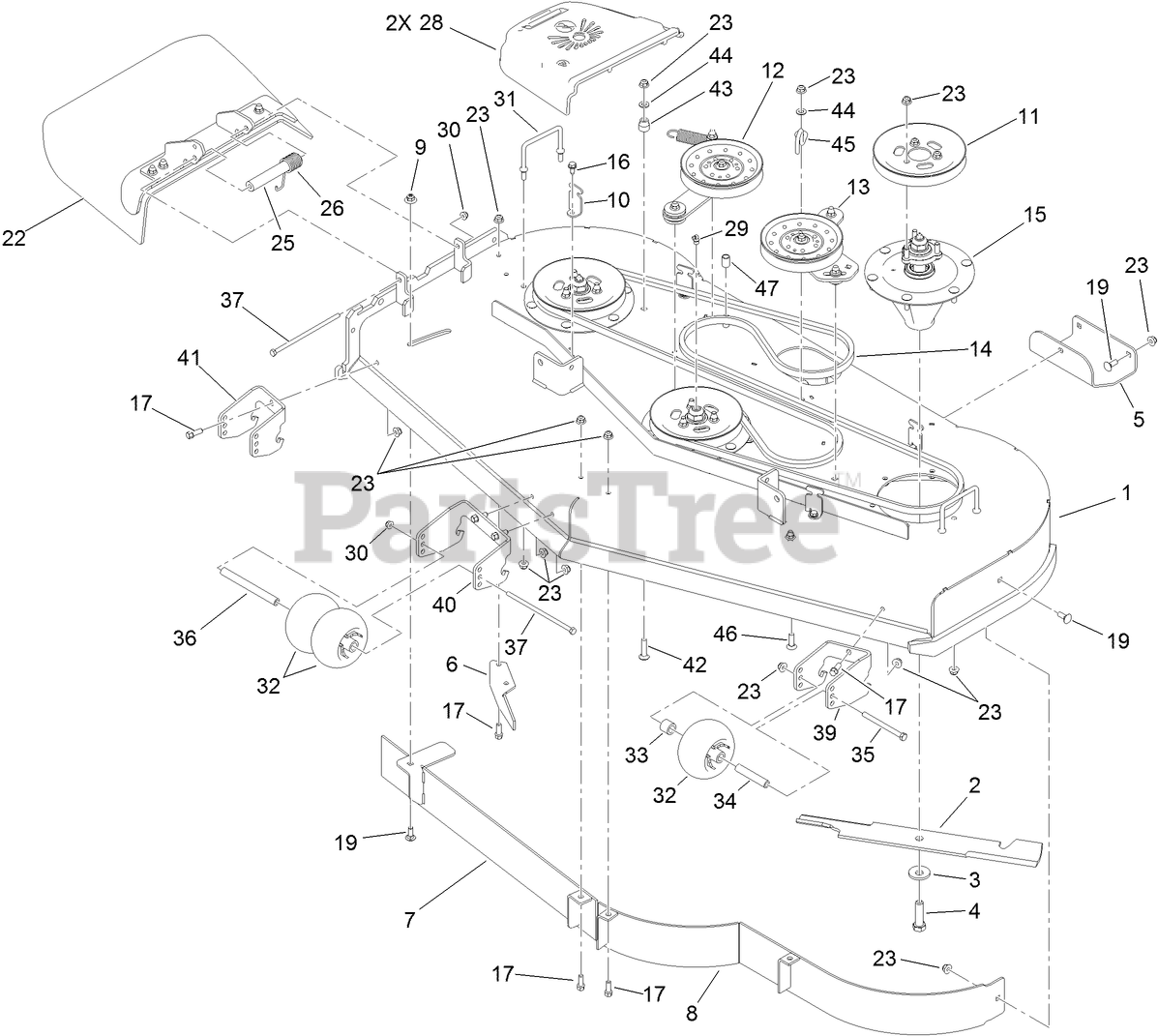

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 120-6414

DECK ASM

$3191.99

$

Usually ships in 3-6 days

0

2

Toro 105-7718-03

BLADE-HI FLOW

$25.99

$

In Stock, Qty 9

0

3

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

4

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

5

Toro 114-1908-01

SKID

$84.99

$

Usually ships in 3-6 days

0

6

Toro 106-3216-01

BAFFLE-DISCHARGE

$25.99

$

Usually ships in 3-6 days

0

7

Toro 121-1788-01

BAFFLE ASM

$150.99

$

Usually ships in 3-6 days

0

8

Toro 117-9701-01

BAFFLE ASM

$173.99

$

Usually ships in 3-6 days

0

9

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 117-5758-03

BRACKET-COVER

$13.99

$

Usually ships in 3-6 days

0

11

Toro 120-6434

PULLEY

$51.99

$

In Stock, only 4 left!

0

12

Toro 121-5970

RH IDLER ARM ASM

$131.99

$

Usually ships in 3-6 days

0

13

Toro 121-5965

LH IDLER ARM ASM

$131.99

$

Usually ships in 3-6 days

0

14

Toro 106-7369

BELT-V

$125.99

$

In Stock, only 1 left!

0

15

Toro 119-8560

SPINDLE ASM

$581.99

$

In Stock, Qty 11

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

22

Toro 121-5960

DEFLECTOR ASM
(Superseded to 120-2451)

$239.99

$

Usually ships in 3-6 days

0

23

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

26

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

28

Toro 120-6423

COVER-BELT

$53.99

$

Usually ships in 3-6 days

0

29

Toro 302-33

FITTING-GREASE
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

31

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

32

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

33

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

34

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

35

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

36

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

37

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

39

Toro 114-5204-01

BRACKET-WHEEL, LH

$71.99

$

In Stock, only 3 left!

0

40

Toro 114-5208-01

BRACKET-WHEEL, CENTER

$71.99

$

Usually ships in 3-6 days

0

41

Toro 114-5213-01

BRACKET-WHEEL, RH

$71.99

$

In Stock, only 3 left!

0

42

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

43

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

44

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

45

Toro 110-6975

GUIDE-BELT

$26.99

$

Usually ships in 3-6 days

0

46

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

47

Toro 121-7521

Bumper-Idler

$2.49

$

Usually ships in 3-6 days

0
