74582 (DH 210) - Toro Lawn Tractor (SN: 311000001 - 311999999) (2011) FRAME, FENDER, SEAT AND FUEL TANK ASSEMBLY Parts Diagram

Lawn Tractor

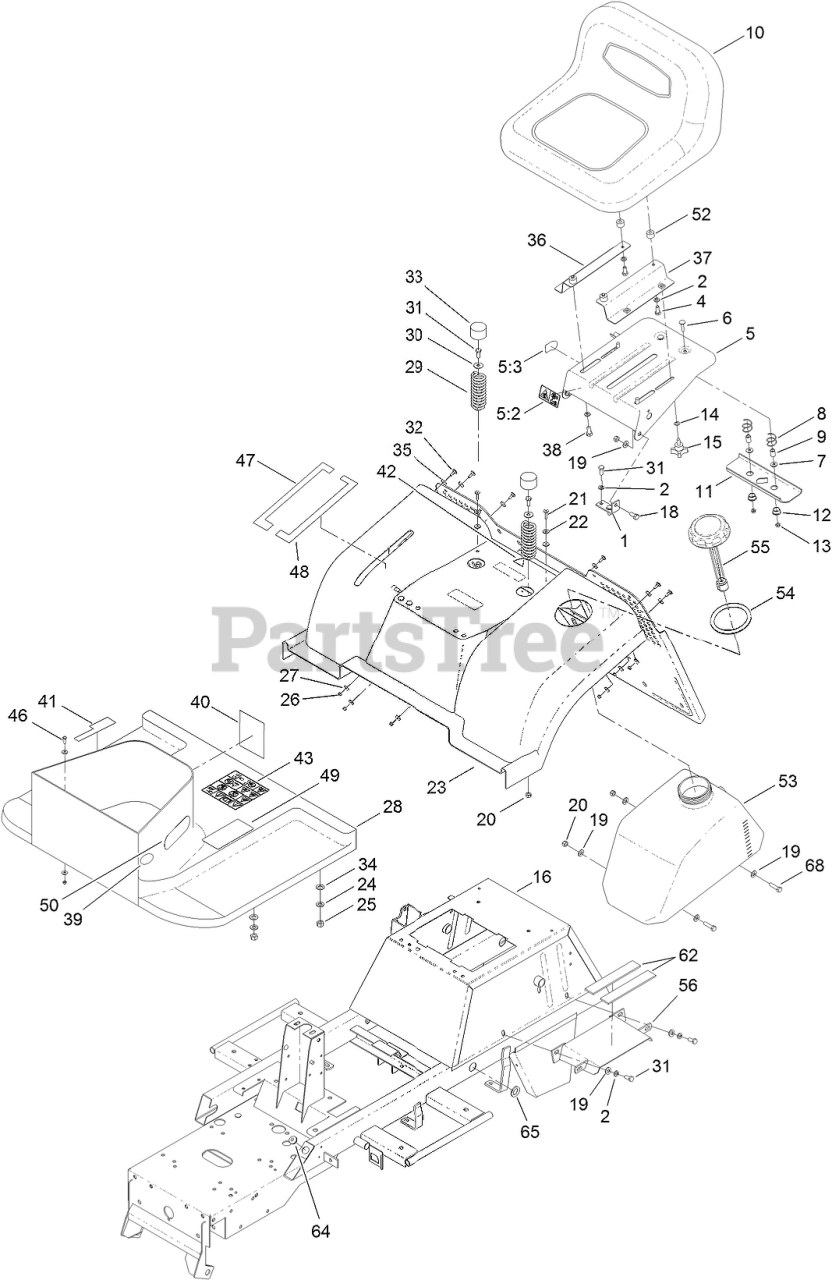

FRAME, FENDER, SEAT AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2926

BRACKET-SUPPORT, SEAT

$

$

Currently unavailable

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

5

Toro 120-8704

SEAT PAN ASM

$

$

Currently unavailable

5:2

Toro 119-2730

DECAL-DANGER

$

$

Currently unavailable

5:3

Toro 99-5340

DECAL-SWITCH

$4.99

$

Usually ships in 3-6 days

0

6

Toro 104-2930

BOLT-CARRIAGE

$

$

Currently unavailable

7

Toro 104-2931

WASHER-FLAT

$

$

Currently unavailable

8

Toro 104-2932

SPRING-SEAT

$

$

Currently unavailable

9

Toro 104-2933

SPACER-SPLIT

$

$

Currently unavailable

10

Toro 107-2214

SEAT ASM

$

$

Currently unavailable

11

Toro 104-2934

BRACKET

$

$

Currently unavailable

12

Toro 104-2935

BUSHING

$

$

Currently unavailable

13

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

14

Toro 104-2936

WASHER-SPRING

$

$

Currently unavailable

15

Toro 104-2937

KNOB-ADJUSTMENT

$

$

Currently unavailable

16

Toro 120-8751

FRAME-CHASSIS
(Superseded to 120-8750)

$

$

Not available

18

Toro 104-2939

SCREW-SUPPORT, SEAT

$

$

Currently unavailable

19

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

20

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

21

Toro 104-2940

SCREW-HSFH

$

$

Currently unavailable

22

Toro 104-2941

WASHER-FINISH

$

$

Not available

23

Toro 120-8765

FENDER-REAR

$

$

Not available

24

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

25

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

26

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

27

Toro 104-2943

WASHER-FLAT

$

$

Currently unavailable

28

Toro 104-2944

FOOTREST ASM

$

$

Currently unavailable

29

Toro 104-2945

SPRING-SEAT

$

$

Currently unavailable

30

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable

31

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

32

Toro 104-2948

BOLT-CARRIAGE

$

$

Currently unavailable

33

Toro 104-2857

CAP-HUB

$

$

Currently unavailable

34

Toro 104-2951

WASHER-RUBBER

$

$

Currently unavailable

35

Toro 104-2952

WASHER-RUBBER

$

$

Currently unavailable

36

Toro 107-8915

BRACKET-SEAT, RH

$

$

Currently unavailable

37

Toro 107-8916

BRACKET-SEAT, LH

$

$

Currently unavailable

38

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

39

Toro 104-3237

DECAL-BRAKE, PARKING

$

$

Currently unavailable

40

Toro 104-3238

DECAL-STARTING

$

$

Not available

41

Toro 104-3241

DECAL-OPERATION, HYDRO

$

$

Currently unavailable

42

Toro 104-3242

DECAL-BAG TO FRAME

$

$

Currently unavailable

43

Toro 119-2725

DECAL-DANGER

$6.99

$

Usually ships in 3-6 days

0

46

Toro 60-6910

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

47

Toro 104-3239

DECAL-HOC, LH

$

$

Currently unavailable

48

Toro 104-3240

DECAL-HOC, RH

$

$

Currently unavailable

49

Toro 106-8552

DECAL-OPERATION

$

$

Currently unavailable

50

Toro 107-8975

DECAL-TOWER

$

$

Not available

52

Toro 107-8924

SHIM-SEAT

$

$

Currently unavailable

53

Toro 110-8689

TANK-FUEL

$

$

Currently unavailable

54

Toro 110-8691

PROTECTOR-NECK, FILLER

$

$

Currently unavailable

55

Toro 110-8697

CAP-FUEL

$

$

Currently unavailable

56

Toro 120-8756

BRACKET-TANK, FUEL

$

$

Currently unavailable

62

Toro 110-8690

STRIP-RUBBER, FUEL TANK

$

$

Currently unavailable

64

Toro 107-8950

GROMMET

$

$

Currently unavailable

65

Toro 110-8683

GROMMET

$

$

Currently unavailable

68

Toro 33114-030

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0
