74582 (DH 210) - Toro Lawn Tractor (SN: 310000001 - 310999999) (2010) OPERATION - TRAVEL PEDAL ASSEMBLY Parts Diagram

Lawn Tractor

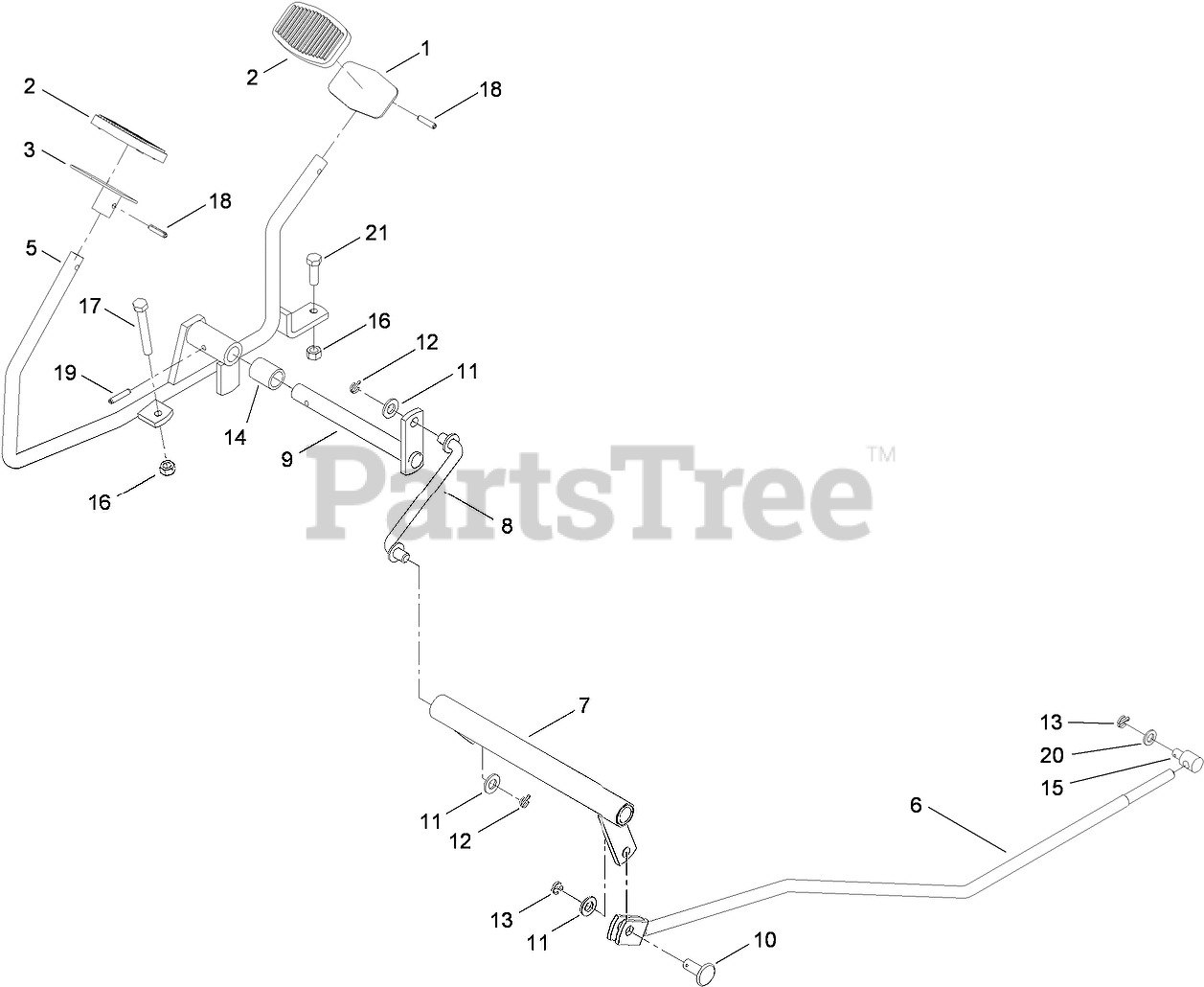

OPERATION - TRAVEL PEDAL ASSEMBLY Parts Diagram

  • Title
1

Toro 104-3017

PEDAL-REAR, TRAVEL

$

$

Not available

2

Toro 104-3018

PAD-PEDAL

$

$

Currently unavailable

3

Toro 114-3248

PEDAL-TRAVEL, FORWARD

$

$

Currently unavailable

5

Toro 104-3021

ROD-TRAVEL

$

$

Currently unavailable

6

Toro 104-3022

ROD-TIE

$

$

Currently unavailable

7

Toro 104-3023

SHAFT-DIAGONAL

$

$

Currently unavailable

8

Toro 104-3024

LINK-FORMED

$

$

Currently unavailable

9

Toro 104-3025

SHAFT-DIAGONAL

$

$

Currently unavailable

10

$

$

Not available

11

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

12

Toro 104-3016

PIN-COTTER

$

$

Currently unavailable

13

Toro 104-3027

PIN-COTTER

$

$

Currently unavailable

14

Toro 104-3028

SPACER

$

$

Not available

15

$

$

Currently unavailable

16

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

17

Toro 33114-060

SCREW-HH

$1.49

$

In Stock, Qty 6

0

18

Toro 104-3008

PIN-SPRING

$

$

Currently unavailable

19

Toro 104-3030

PIN-SPRING

$

$

Currently unavailable

20

Toro 104-3031

WASHER

$

$

Currently unavailable

21

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0
