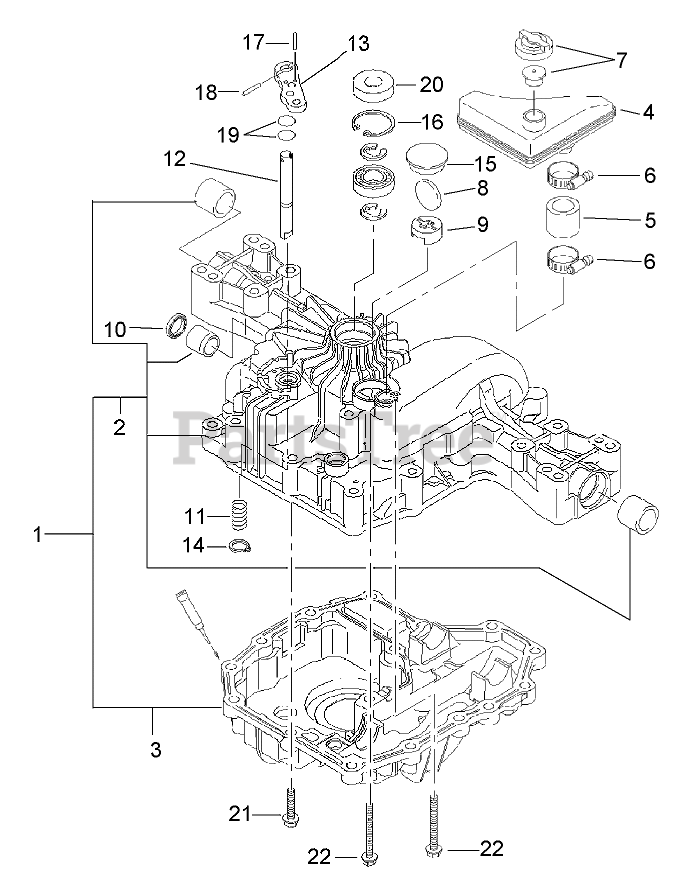

74582 (DH 210) - Toro Lawn Tractor (SN: 270000001 - 270999999) (2007) TRANSAXLE CASE ASSEMBLY TRANSMISSION ASSEMBLY NO. 104-2889 Parts Diagram

Lawn Tractor

TRANSAXLE CASE ASSEMBLY TRANSMISSION ASSEMBLY NO. 104-2889 Parts Diagram

  • Title

1

Toro 104-3251

Transaxle Case Set

$1277.99

$

Usually ships in 3-6 days

0

2

Toro 104-3252

Housing-Upper

$1084.99

$

Usually ships in 3-6 days

0

3

Toro 104-3253

Housing-Lower

$452.99

$

Usually ships in 3-6 days

0

4

Toro 104-2914

RESERVOIR TANK ASM WITH CAP

$

$

Currently unavailable

5

Toro 104-3254

Tube

$16.99

$

Usually ships in 3-6 days

0

6

Toro 104-3255

Clamp-Miniature

$13.99

$

Usually ships in 3-6 days

0

7

Toro 104-3256

Valve-Vent, 15

$20.99

$

Usually ships in 3-6 days

0

8

Toro 104-3257

Magnet

$17.99

$

Usually ships in 3-6 days

0

9

Toro 104-3258

Holder-Magnet

$16.99

$

Usually ships in 3-6 days

0

10

Toro 104-3259

Seal-Oil

$31.99

$

Usually ships in 3-6 days

0

11

Toro 93-0396

SPRING

$11.99

$

Usually ships in 3-6 days

0

12

Toro 104-3260

Shaft-Bypass

$144.99

$

Usually ships in 3-6 days

0

13

Toro 104-3261

Lever-Bypass

$39.99

$

Usually ships in 3-6 days

0

14

Toro 104-3262

Ring

$3.99

$

Usually ships in 3-6 days

0

15

Toro 104-3263

Plug-Bore

$25.99

$

Usually ships in 3-6 days

0

16

Toro 93-0360

RING

$10.99

$

Usually ships in 3-6 days

0

17

Toro 104-3264

Pin

$1.99

$

Usually ships in 3-6 days

0

18

Toro 104-3265

Pin

$2.99

$

Usually ships in 3-6 days

0

19

Toro 93-0419

PACKING

$7.99

$

Usually ships in 3-6 days

0

20

Toro 93-0361

SEAL

$41.99

$

Usually ships in 3-6 days

0

21

Toro 93-0363

SCREW-TAP

$6.49

$

Usually ships in 3-6 days

0

22

Toro 104-3266

Screw-Tap

$11.99

$

Usually ships in 3-6 days

0
