74573 (DH 200) - Toro Lawn Tractor (SN: 310000001 - 310999999) (2010) HOOD ASSEMBLY Parts Diagram

Lawn Tractor

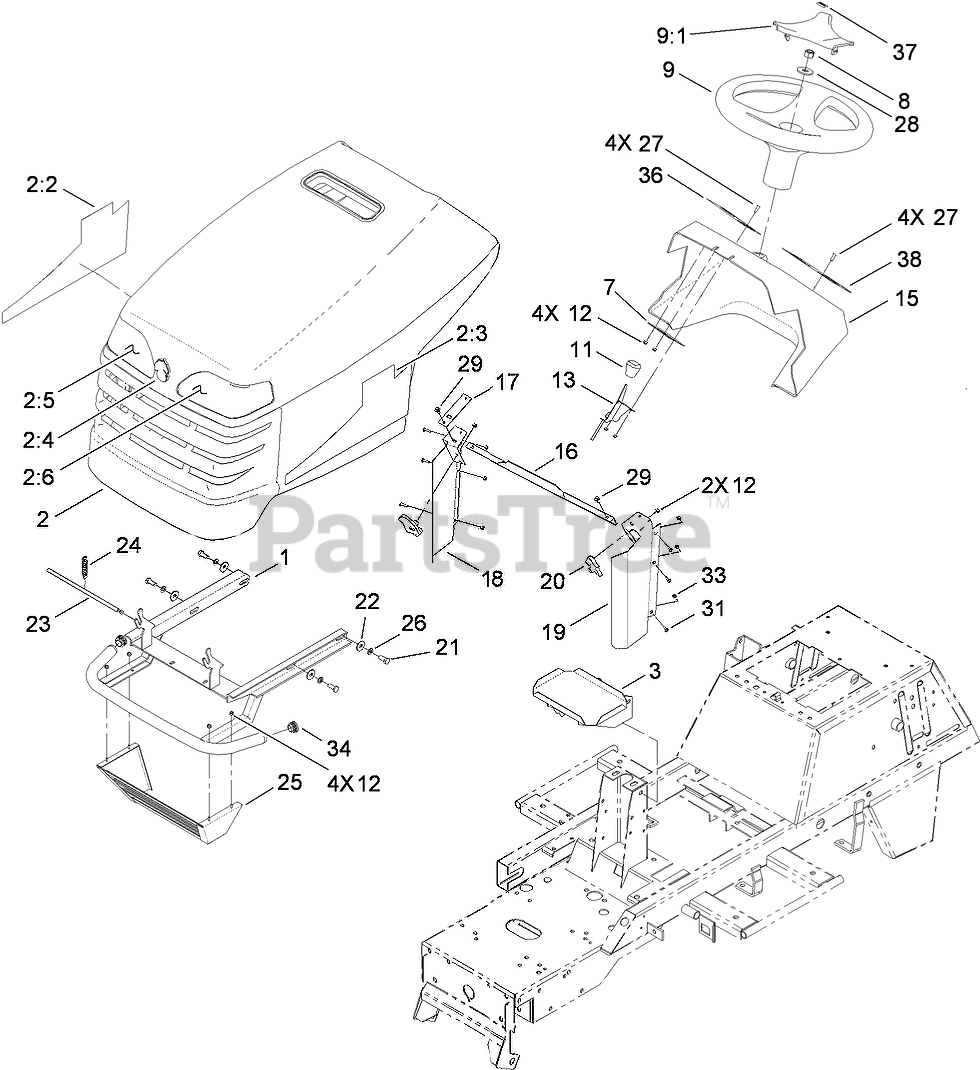

HOOD ASSEMBLY Parts Diagram

  • Title
1

Toro 107-2216

SUPPORT-BUMPER

$

$

Currently unavailable

2

Toro 107-8986

HOOD-ASSEMBLY

$

$

Currently unavailable

2:2

Toro 107-8913

DECAL-HOOD, RH

$53.99

$

Usually ships in 3-6 days

0

2:3

Toro 107-8902

DECAL-HOOD, LH

$53.99

$

Usually ships in 3-6 days

0

2:4

Toro 95-4248

EMBLEM

$36.99

$

Usually ships in 3-6 days

0

2:5

Toro 107-8983

LENS-HEADLAMP, RH

$

$

Currently unavailable

2:6

Toro 107-8984

LENS-HEADLAMP, LH

$

$

Currently unavailable

3

Toro 110-8679

TRAY-BATTERY

$

$

Currently unavailable

7

$

$

Currently unavailable

8

Toro 33026-00

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

9

Toro 98-1471

WHEEL-STEERING

$152.99

$

Usually ships in 3-6 days

0

9:1

Toro 98-1468

COVER-WHEEL, STEERING

$18.99

$

In Stock, only 1 left!

0

11

$5.99

$

In Stock, only 2 left!

0

12

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

13

Toro 106-4166

CABLE-THROTTLE and CHOKE

$

$

Not available

15

Toro 104-2968

PANEL-DASH

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Toro 104-2971

BRACKET

$

$

Currently unavailable

18

Toro 104-2972

PANEL-RIGHT

$

$

Currently unavailable

19

Toro 104-2973

PANEL-LEFT

$

$

Currently unavailable

20

Toro 92-6960

LATCH-HOOD

$

$

Not available

21

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

22

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable

23

Toro 104-2974

BAR-SAFETY

$

$

Currently unavailable

24

Toro 104-2975

SPRING-HOOD

$

$

Currently unavailable

25

Toro 107-2218

GUARD-MUFFLER

$

$

Currently unavailable

26

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

$

$

Currently unavailable

28

Toro 106-5758

Washer

$

$

Currently unavailable

29

$

$

Currently unavailable

31

$

$

Currently unavailable

33

Toro 104-2985

NUT-HEX

$

$

Currently unavailable

34

Toro 107-8943

PLUG-END, TUBE

$

$

Currently unavailable

36

Toro 107-8920

DECAL-DASH THROTTLE and IGNITION

$

$

Currently unavailable

37

Toro 98-1459

DECAL

$4.99

$

Usually ships in 3-6 days

0

38

Toro 104-3235

DECAL-PTO

$

$

Currently unavailable
