74573 (DH 200) - Toro Lawn Tractor (SN: 290000481 - 290999999) (2009) ELECTRICAL SWITCH NO. 3 ASSEMBLY Parts Diagram

Lawn Tractor

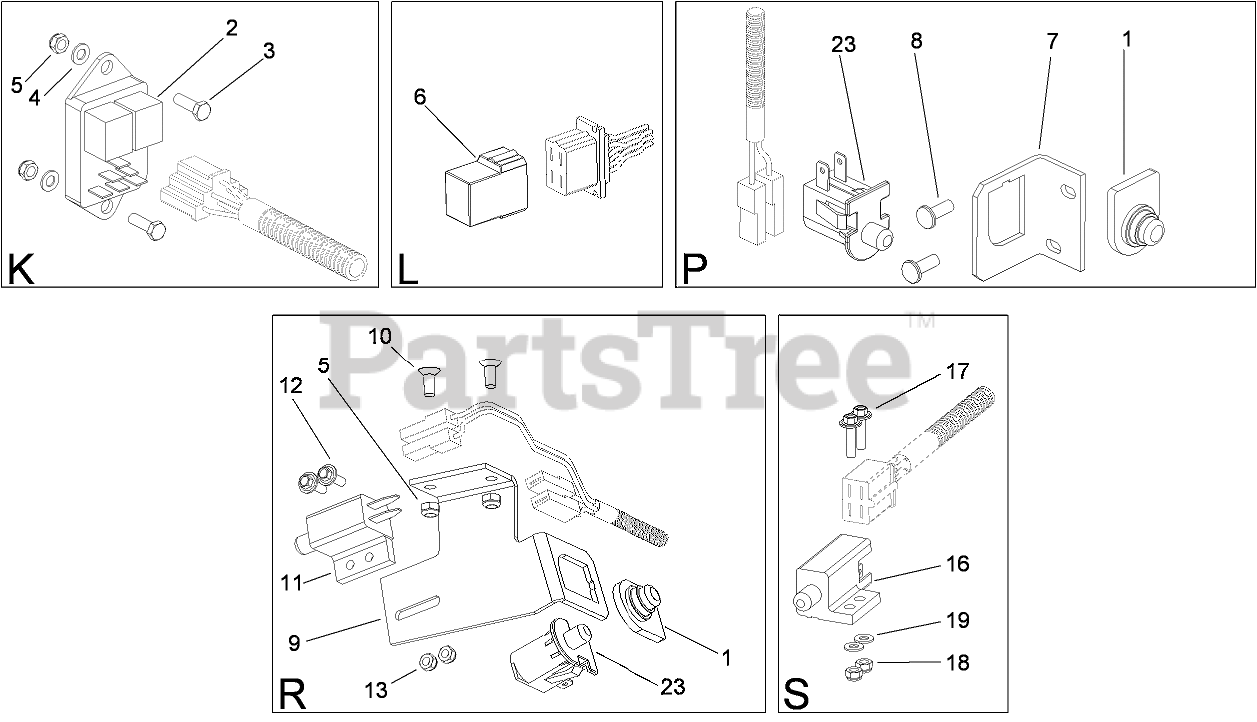

ELECTRICAL SWITCH NO. 3 ASSEMBLY Parts Diagram

  • Title

1

Toro 104-3178

COVER-PROTECTIVE

$

$

Not available

2

Toro 99-3701

MODULE-CLUTCH

$148.99

$

Usually ships in 3-6 days

0

3

Toro 60-6910

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 52-6430

WASHER

$0.99

$

In Stock, Qty 5

0

5

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

6

Toro 104-3169

CIRCUIT-MEMORY

$

$

Currently unavailable

7

Toro 107-8954

HOLDER-SWITCH

$

$

Currently unavailable

8

Toro 104-3190

SCREW

$

$

Currently unavailable

9

Toro 107-8955

HOLDER-SWITCH

$

$

Not available

10

Toro 104-2980

SCREW

$

$

Currently unavailable

11

Toro 95-1653

SWITCH-POLE, SINGLE

$20.99

$

Usually ships in 3-6 days

0

12

Toro 104-2983

SCREW

$

$

Currently unavailable

13

Toro 104-2985

NUT-HEX

$

$

Currently unavailable

16

Toro 104-3330

Switch-Delta

$

$

Currently unavailable

17

Toro 104-3331

Bolt

$

$

Currently unavailable

18

Toro 46-0430

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

19

Toro 52-6430

WASHER

$0.99

$

In Stock, Qty 5

0

23

Toro 104-3180

SWITCH-DELTA

$

$

Currently unavailable
